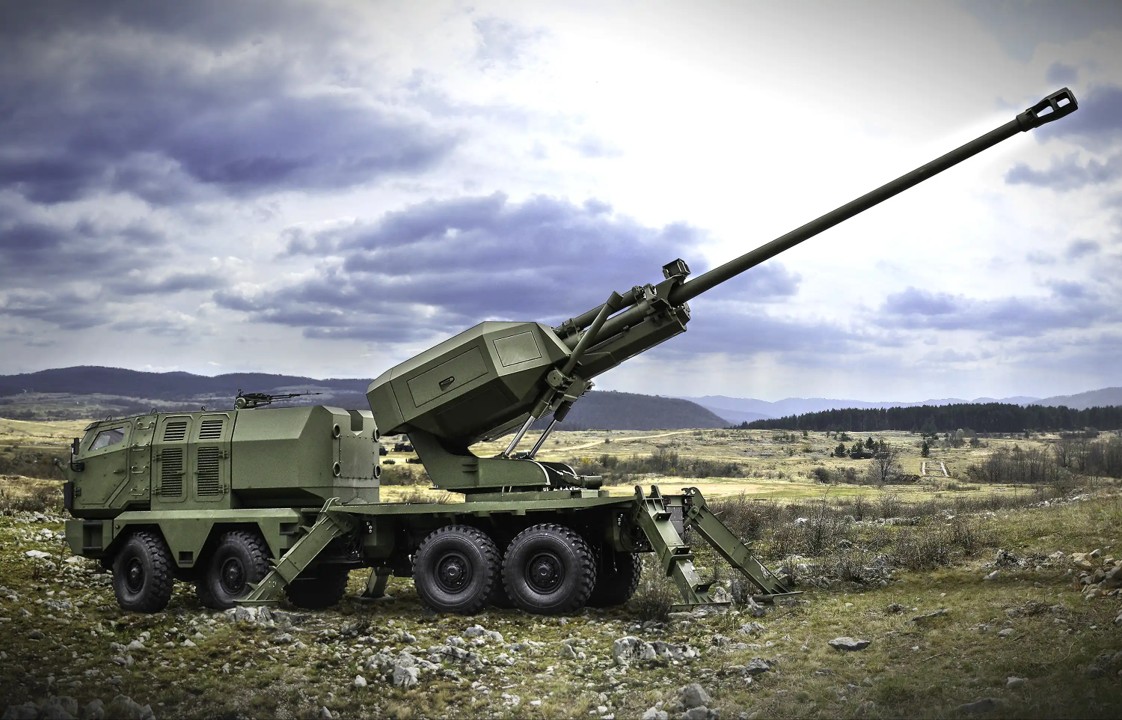

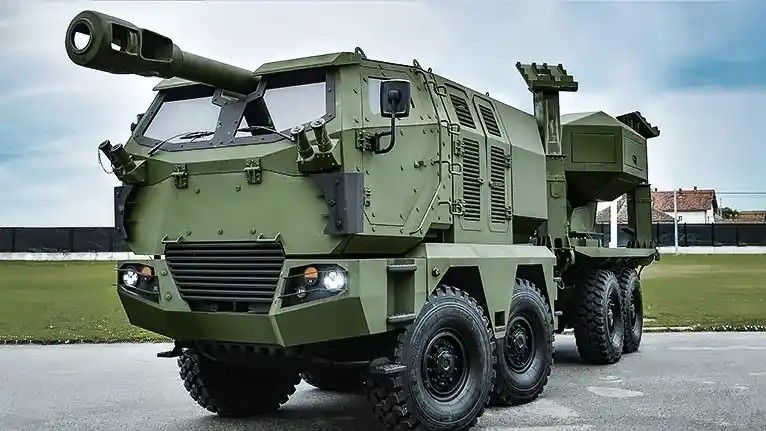

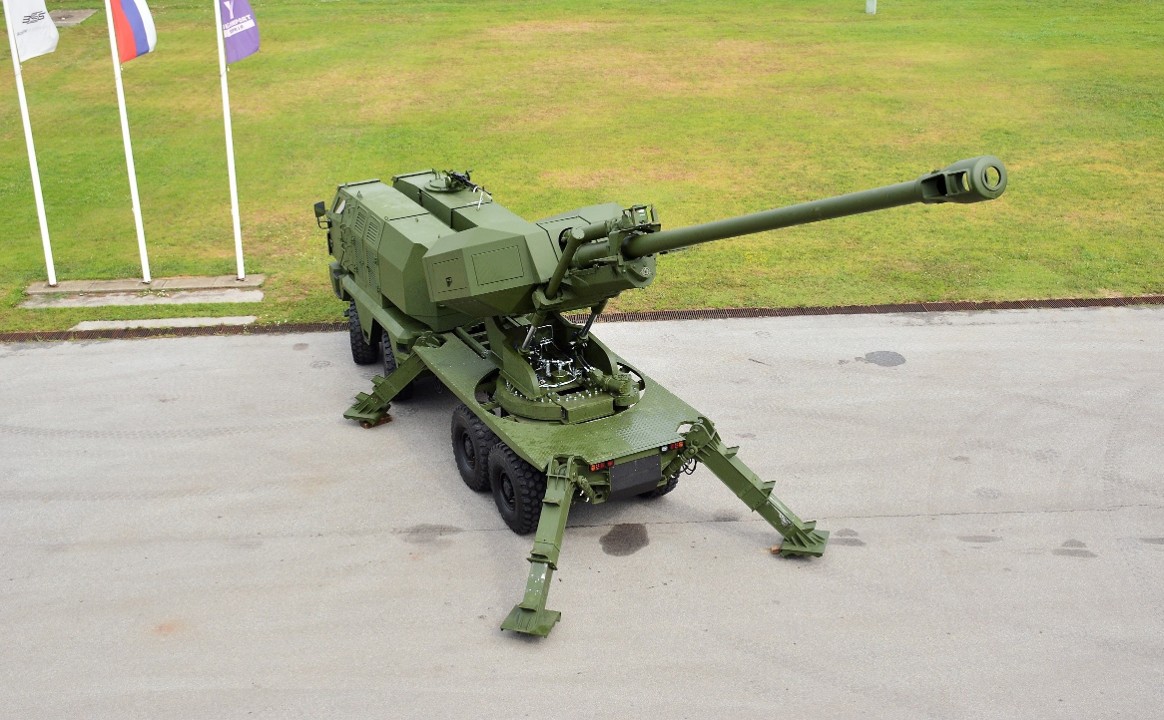

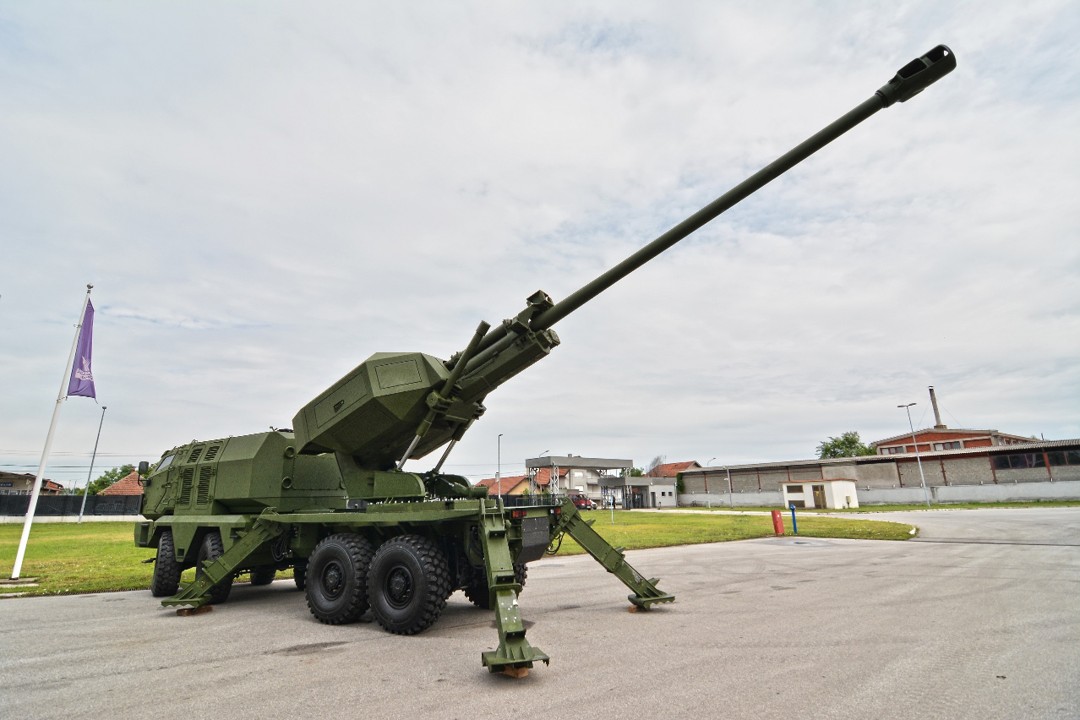

Aleksandar Serbian 155mm Self-Propelled Howitzer

Aleksandar

Self-Propelled Howitzer (SPH)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Aleksandar Serbian 155mm Self-Propelled Howitzer
Designation
Aleksandar
Alternate Designation
Aleksandar
Equipment Type
Self-Propelled Howitzer (SPH)
Manufacturer
Yugoimport
Date of Introduction
2017
Description

The Aleksandar Serbian 155mm Self-Propelled Howitzer is a cutting-edge artillery weapon developed by the Serbian defense industry. It is the most powerful fully automated fire support artillery piece in the 155 mm caliber, featuring a high level of autonomy. This weapon is built by integrating a 155 mm artillery module onto an 8x8 chassis. The weapon module is operated from the vehicle cabin and can be classified as a remote-controlled weapon station (RCWS) due to its advanced features. The weapon module consists of an autofretted 155 mm barrel assembly that complies with Joint Ballistic Method of Operations (JBMOU) standards and includes a 23-liter chamber. A key feature of the weapon module is its fully automatic loader, which can accommodate 12 projectiles and propellant charges. This loader allows for firing at all elevations, achieving a rate of fire of up to 6 rounds per minute. Additionally, the platform has space for another 12 rounds, enabling automatic reloading. This design allows the combat set to hold a total of 24 rounds without any crew engagement being necessary during operation.

Ground Specifications
Crew 3
Mobility Type Wheeled (8x8)
Main Weapon 155mm artillery module
Range 62.0 km
System
Alternative Designation Aleksandar
Type Self-Propelled Howitzer
Manufacturer Yugoimport
Caliber 155 mm
Configuration 8x8
Crew 3 ea
Dimensions
Length INA
Width INA
Height INA
Weight, Combat INA
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Chassis 8x8 chassis
Maximum Range INA
Maximum Speed INA
Main Weapon System
Type Howitzer
Caliber 155 mm
Powder Chamber Volume 25 liters
Range with ERFB Projectile 37.5 km
Range with ERFB BB Projectile 49 km
Range with VLAP Projectile 62 km
Ammuntion Compatibility All types of 155 mm ammunition
MRSI Capability 4 rounds at 25 km
Maximum Rate of Fire 6 rounds per minute
Loading Fully automatic, with back-up manual mode
Weapon Ammunition Set 12 in the automatic loader + 12 on the vehicle
Traverse ± 30º
Elevation from -5° to 65°
Navigation, Positioning and Orientation System Inertial navigation system with a back-up satellite navigation system (GPS, GLONASS, …) Fully automatic fire data setting with error < 1 mil
Ready to Fire in (from halting to first round) 60 seconds
Protection
Armor INA
Applique Armor INA
NBC Protection INA
Smoke Equipment INA
Details
Country of Origin Serbia
Category Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
Serbia
