AN/TPQ-50 American Counterfire Radar System
AN/TPQ-50

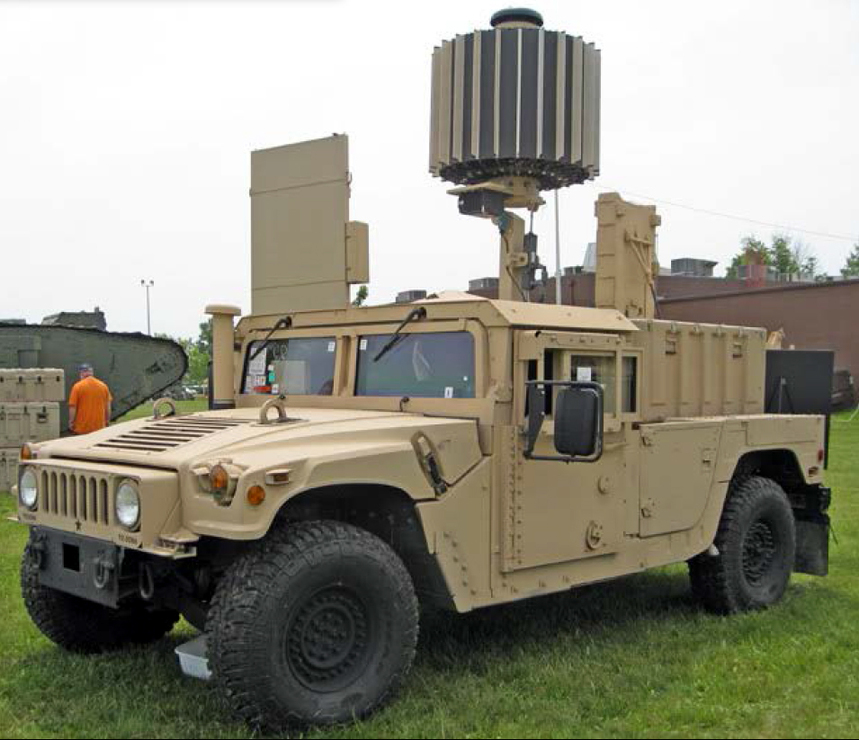

The AN/TPQ-50 Lightweight Counter Mortar Radar (LCMR) is a highly mobile counterfire target acquisition radar organic to Brigade Combat Teams, field artillery brigades and division artilleries. The system provides 360 azimuth coverage between the ranges of .5 to 10 km while automatically detecting, classifying, tracking and locating points of origin of projectiles fired from mortar, artillery and rocket systems. The system is fielded in the vehicle-mounted configuration but can be operated in the tripod-mounted configuration. The Q-50 can quickly detect, track, classify and accurately determine the point of origin of enemy indirect fires and provide projectile impact locations with sufficient accuracy to warn Soldiers and provide point of origin information for engagement. The Q-50 is networked with existing counterfire systems to provide the maneuver commander increased counterfire radar flexibility. It can be assembled and disassembled quickly by two Soldiers.
