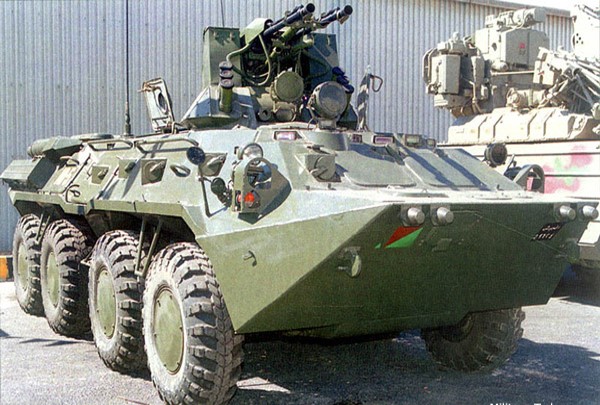

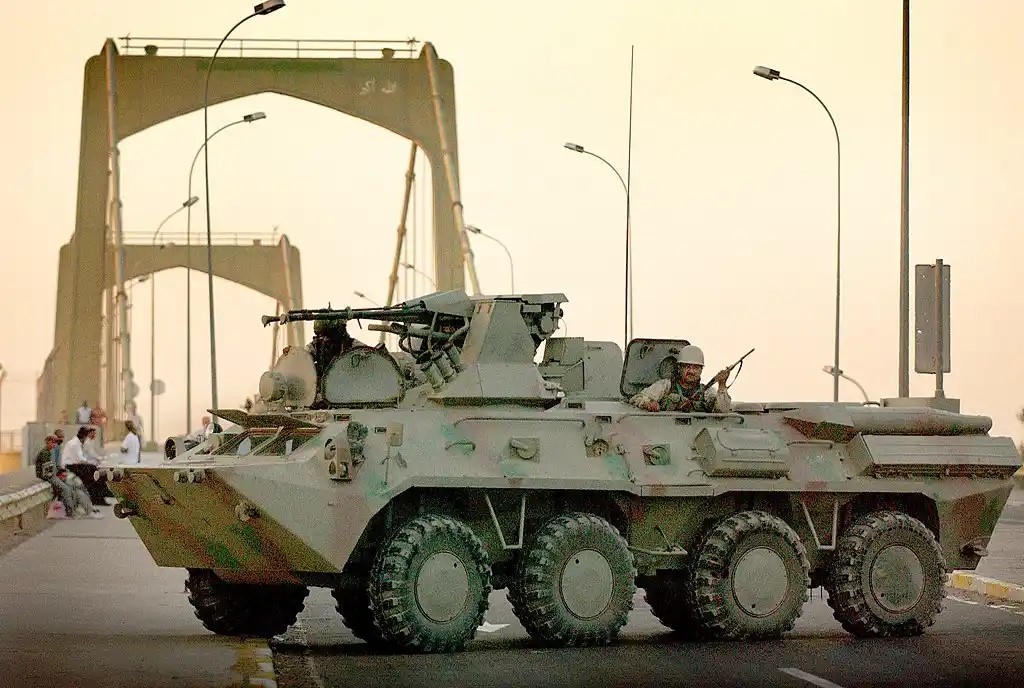

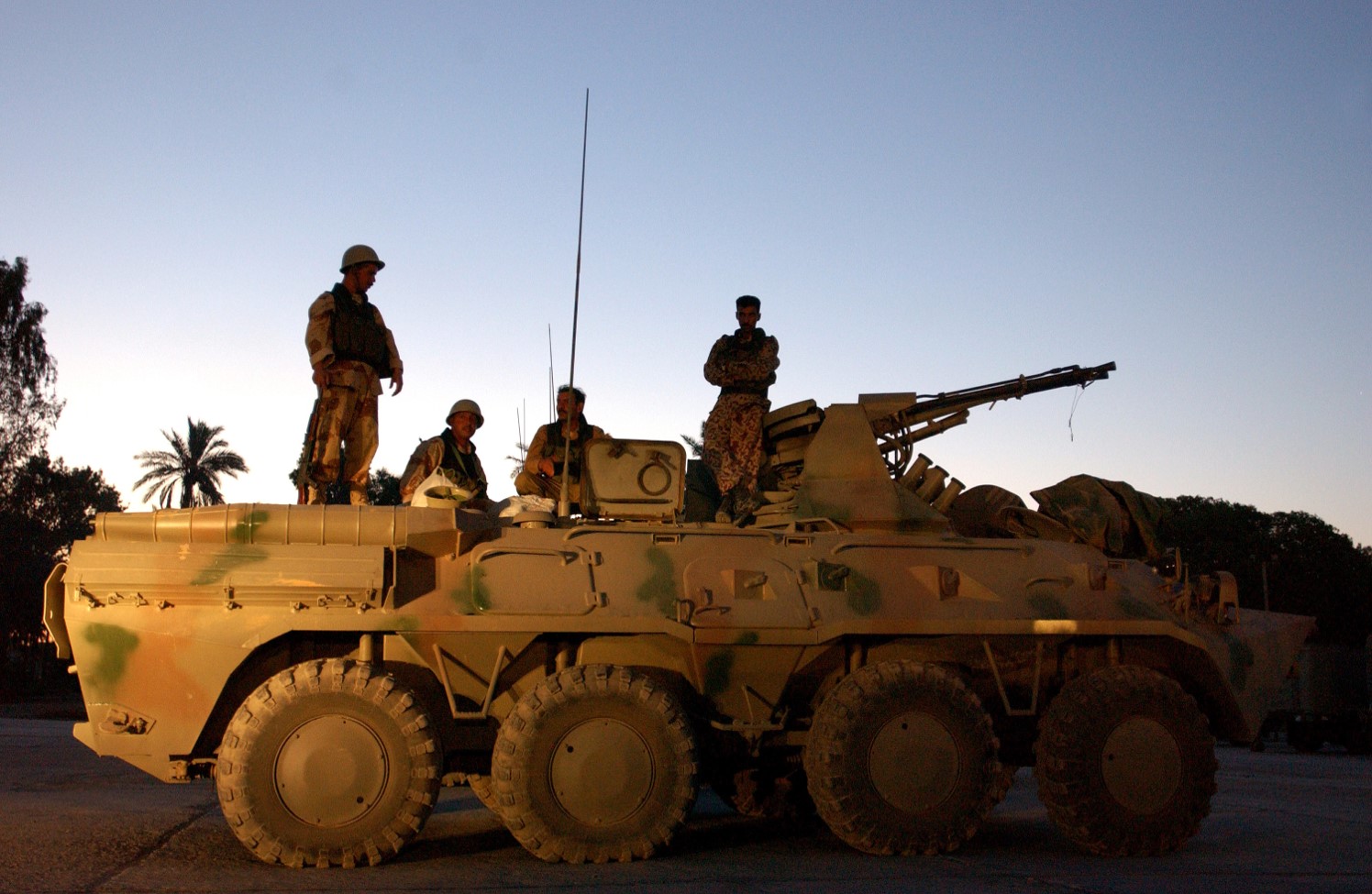

BTR-94 Russian 8x8 Amphibious Armored Personnel Carrier (APC)
BTR-94
Amphibious Armored Personnel Carrier (APC)
Other
Basic Information
Name
BTR-94 Russian 8x8 Amphibious Armored Personnel Carrier (APC)
Designation
BTR-94
Alternate Designation
BTR-94
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Malyshev Factory
Date of Introduction
1999
Description
The BTR-94 Russian 8x8 Amphibious Armored Personnel Carrier (APC) is essentially a Soviet BTR-80 APC with some upgrades.
Ground Specifications
Crew
3
Engine
V-8 Turbocharged Diesel (140 hp)
Range
600.0 km
System
Alternative Designation
BTR-94
Type
Amphibious Armored Personnel Carrier (APC)
Configuration
8 X 8
Manufacturer
Malyshev Factory
Crew
3 ea
Personnel
10 ea
Dimensions
Length
7.65 m
Width
2.90 m
Height
2.46 m
Wheelbase
4.4 m
Weight, Standard
INA
Weight, Combat
14 tons
Ground Clearance
0.475 m
Automotive
Engine Name
YaMZ-238M2
Engine Type
V-8, turbocharged, diesel
Engine Power
140 hp
Power-to-Weight Ratio
19.1 hp/t
Fuel Capacity
300 liters
Gearbox
Manual, Fwd: 5, Rev: 1
Electrical System
24 V
Transfer Box
2 speed
Steering
power assisted
Brakes
hydraulic on all wheels
Suspension
torsion bar with hydraulic shock-absorbers
Tires
13.00 × 18 (tubeless)
Maximum Land Speed
80 km/h
Maximum Water Speed
9 km/h
Range
600 km
Angle of Approach
40°
Angle of Departure
30°
Gradient
60%
Side Slope
42%
Vertical Obstacle
0.5 m
Trench
2.0 m
Turning Radius
13.2 m
Main Weapons System
Note
The BTR-94's turret BAU-23x2 is larger than the BTR-80's BPU-1. It is fitted with a twin 23x152mm gun 2A7M with 200 rounds.
Coaxial Weapon System
Note
1 x KT-7.62 General-Purpose Machine Gun
Protection
Hull Armor
The front of the vehicle is resistant to 12.7 mm rounds from an M2 at a range of 200 m, while the sides of the vehicle are resistant to 7.62 mm AP rounds. The hull is not thought to exceed 10 mm in thickness, however the majority of the armor is sloped, thereby increasing the level of protection offered.
Applique Armor
It is possible to fit additional armor to the front of the BTR-80, which provides protection against 14.5 mm rounds and some resistance to blast damage. However this would likely have a significant impact on the platform’s mobility.
Explosive Reactive Armor
Available, Other armour kits have included ERA, thought to be added in the field by the crews in an effort to counter the effects of RPGs.
Active Protection System
INA
Mine Clearing
INA
Self-Entrenching Blade
INA
NBC Protection
Yes, Collective
Smoke Equipment
6 × 81 mm smoke grenade launcher (2 × 3)
Details
Country of Origin
Ukraine
Category
Land
Land
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.65 m
Width
2.9 m
Height
2.46 m
Weight
14000 kg
Operators (3)
Ukraine
Iraq
Jordan
