Neon Antonov-Class (Project 1595 Class) Russian Coastal Logistics Ship
Neon Antonov Class
Auxiliary Oiler Replenishment (AOR) Vessel
Other
Basic Information
Name
Neon Antonov-Class (Project 1595 Class) Russian Coastal Logistics Ship
Designation
Neon Antonov Class
Alternate Designation
Neon Antonov Class; Project 1595 Class
Equipment Type
Auxiliary Oiler Replenishment (AOR) Vessel
Manufacturer
—
Date of Introduction
1976
Description

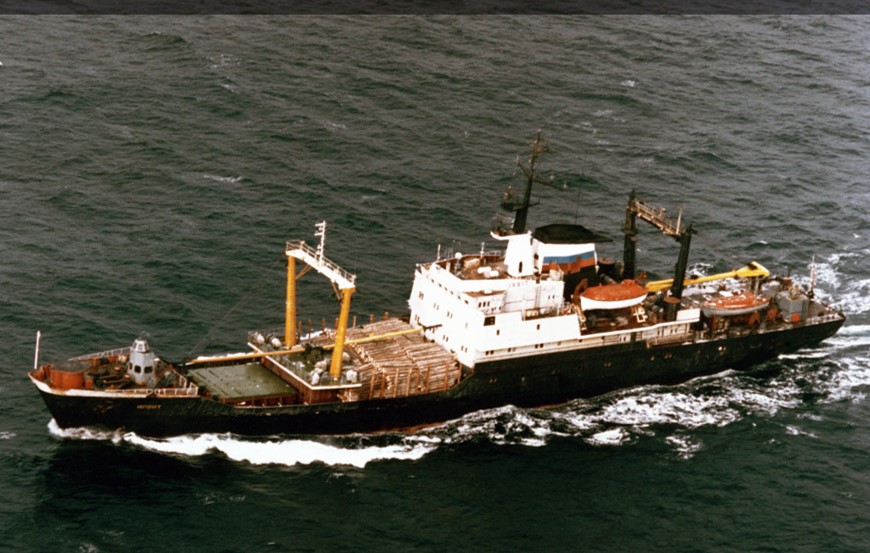

The Neon Antonov-class coastal logistics ship, also known as Project 1595, is a Russian Coast Guard vessel. The vessels were designed to supply Border Guard installations in the Pacific Ocean. They can also assist in other standard Russian Coast Guard missions such as protecting Russian maritime borders, search and rescue, and maritime law enforcement. The ships are small freighters that carry defensive armament to engage surface and air threats. The 30 mm gun is controlled by a Kolonka-1 ring sight fire control director. The ships have a basic suite of sensors and systems for navigation and communicating to other ships or land areas. They can carry small landing craft and one workboat.
Naval & Littoral Specifications
Crew
45
Beam
14.50 m
Draft
5.10 m
Variants
NEON ANTONOV
Commissioned: 1976
Status: Stricken
Fleet: Pacific Fleet
NIKOLAY SIPYAGIN
Commissioned: 1977
Status: Active
Fleet: Pacific Fleet
IVAN LEDNEV
Commissioned: 1977
Status: Active
Fleet: Pacific Fleet
NIKOLAY STARSHINOV
Commissioned: 1980
Status: Active
Fleet: Pacific Fleet
SERGEY SUDYESKIY
Commissioned: 1982
Status: Active
Fleet: Pacific Fleet
VYACHESLAV DENISOV
Commissioned: 1984
Status: Active
Fleet: Pacific Fleet
MIKHAIL KONOVALOV
Commissioned: 1981
Status: Active
Fleet: Pacific Fleet
System
Alternative Designation
Neon Antonov Class; Project 1595 Class
Type
Coastal Logistics Ship
Builder
Nikolayevsk-na-Amur Zavod, Ukraine
Crew
45 ea
Passengers
18 ea
Cargo Capacity
940 tons
Landing Craft
The Neon Antonov Class (Project 1595 Class) Russian Coastal Logistics Ship carries carries a T-4 class mechanized landing craft (LCM) to ferry supplies ashore when a port is not available. In addition, each carries a work boat aft. A 50-ton capacity derrick handles both craft.
Dimensions
Length
96.70 m
Beam
14.50 m
Draft
5.10 m
Displacement, Standard
2,420 tons
Displacement, Full Load
4,040 tons
Propulsion System
Engine Name
2 x Type 67E type 12DRPN 23/2 X 30
Engine Type
Diesel
Engine Power
7,500 total bhp
Maximum Range
8,500 nm at 13 knots
Maximum Speed
18 knots
Endurance
25 days
Gun Weapon Systems
Gun Weapon System #1
Name
1 x AK-306 30mm Automatic Naval Gun
Type
Automatic Naval Gun
Caliber
30 mm
Barrel Length
INA
Weight
1,100 kg
Barrels
6 ea
Elevation
-12 deg to +85 deg
Traverse
-180 deg to +180 deg
Rate of Fire
1,000 rounds a minute
Maximum Firing Range
5,000 m
Feed System
continuous, belt loading. 500 Round (in magazine)
Gun Weapon Systems #1 Ammunition
Type
HEI-Frag, Frag-T
Caliber
30 mm
Shell Weight
0.39 kg
Basic Load
INA
Gun Weapon System #2
Name
INA
Type
2 x 12.7mm Machine guns
Caliber
12.7 mm
Gun Weapon System #2 Ammunition
Type
Rifle
Caliber
12.7 mm
Cartridge
INA
Basic Load
INA
Missile Weapon System
Missile #1
Name
1 x 9K34 "Strela-3" Surface-to-Air Missile System
Type
Surface-to-Air Missile System
Length
1.47 m
Weight
10.3 kg
Operational Range
4,500 m
Maximum Speed
470 m/s
Flight Altitude
1,800 meters vs jets;
3,000 meters vs slow moving targets.
Radar Systems
Navigation Radar
1 x MR-220 Reyd navigation radar and 1 x Volga navigation radar.
Protection
Hull Armor
INA
Countermeasures
No
NBC Water Washdown System
Yes
Details
Country of Origin
Russia
Category
Support Ships
Naval > Support Ships
Filter Label
N
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
96.7 m
Width
—
Height
—
Weight
—
Operators (1)
Russia
