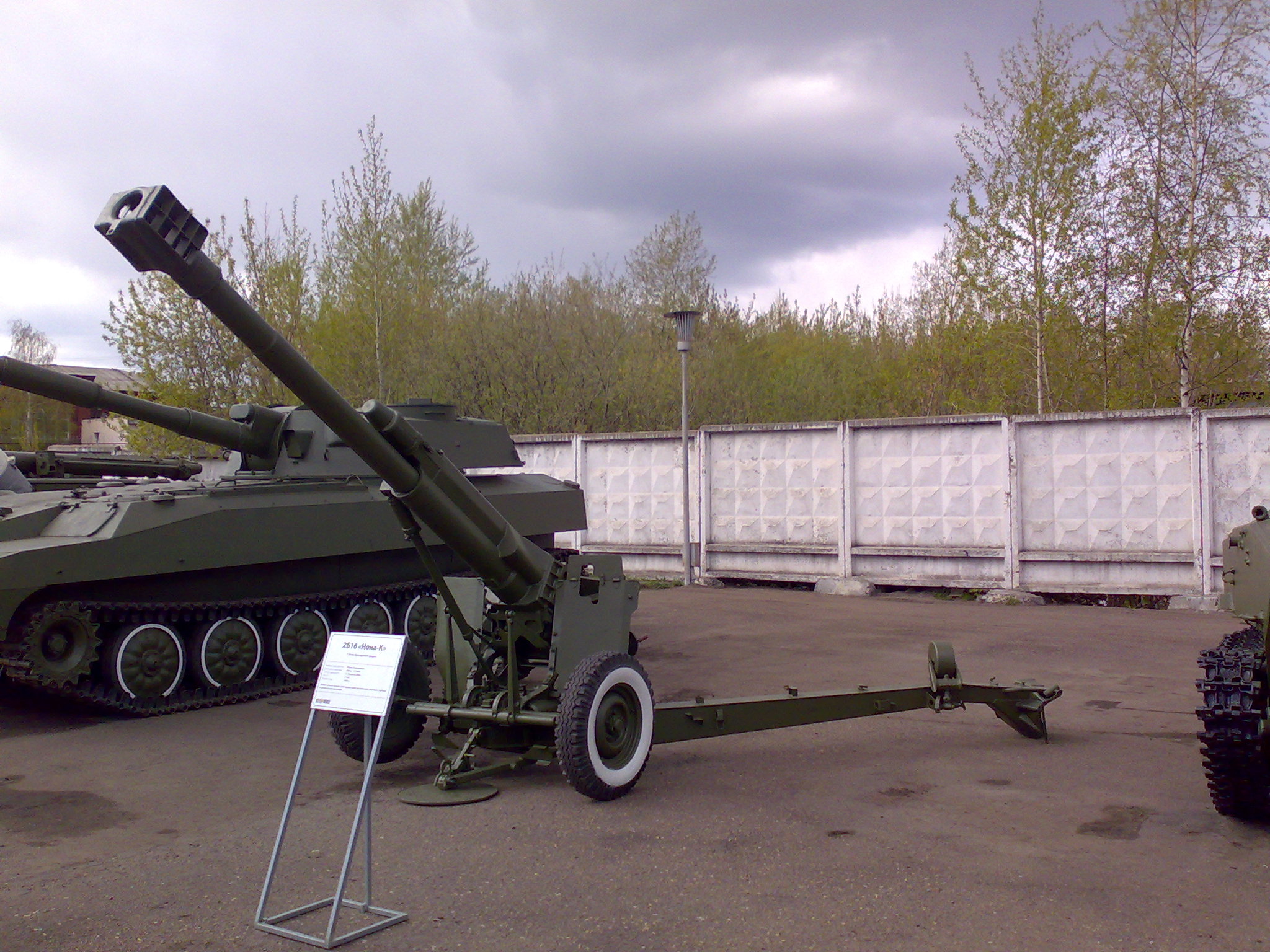

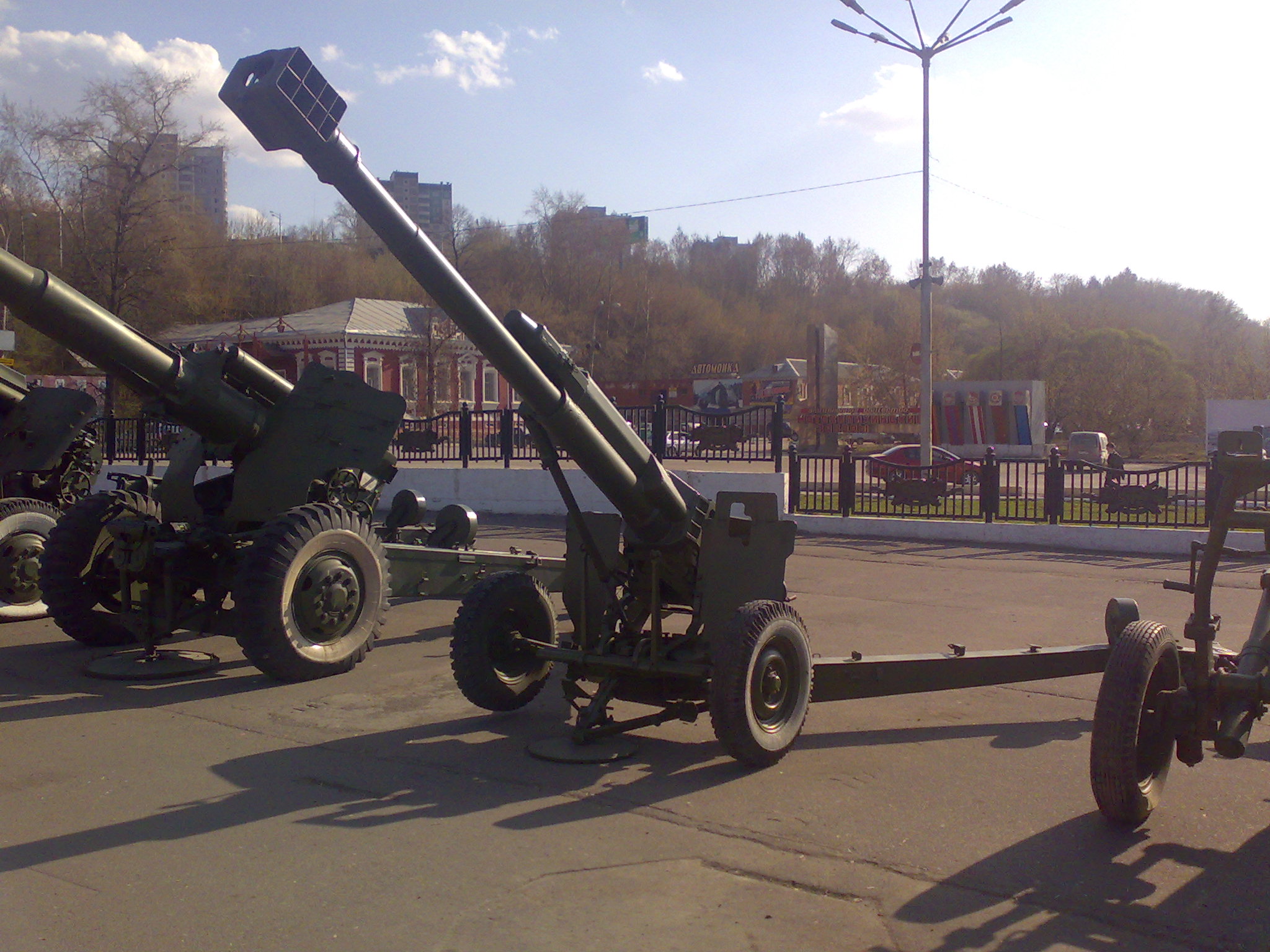

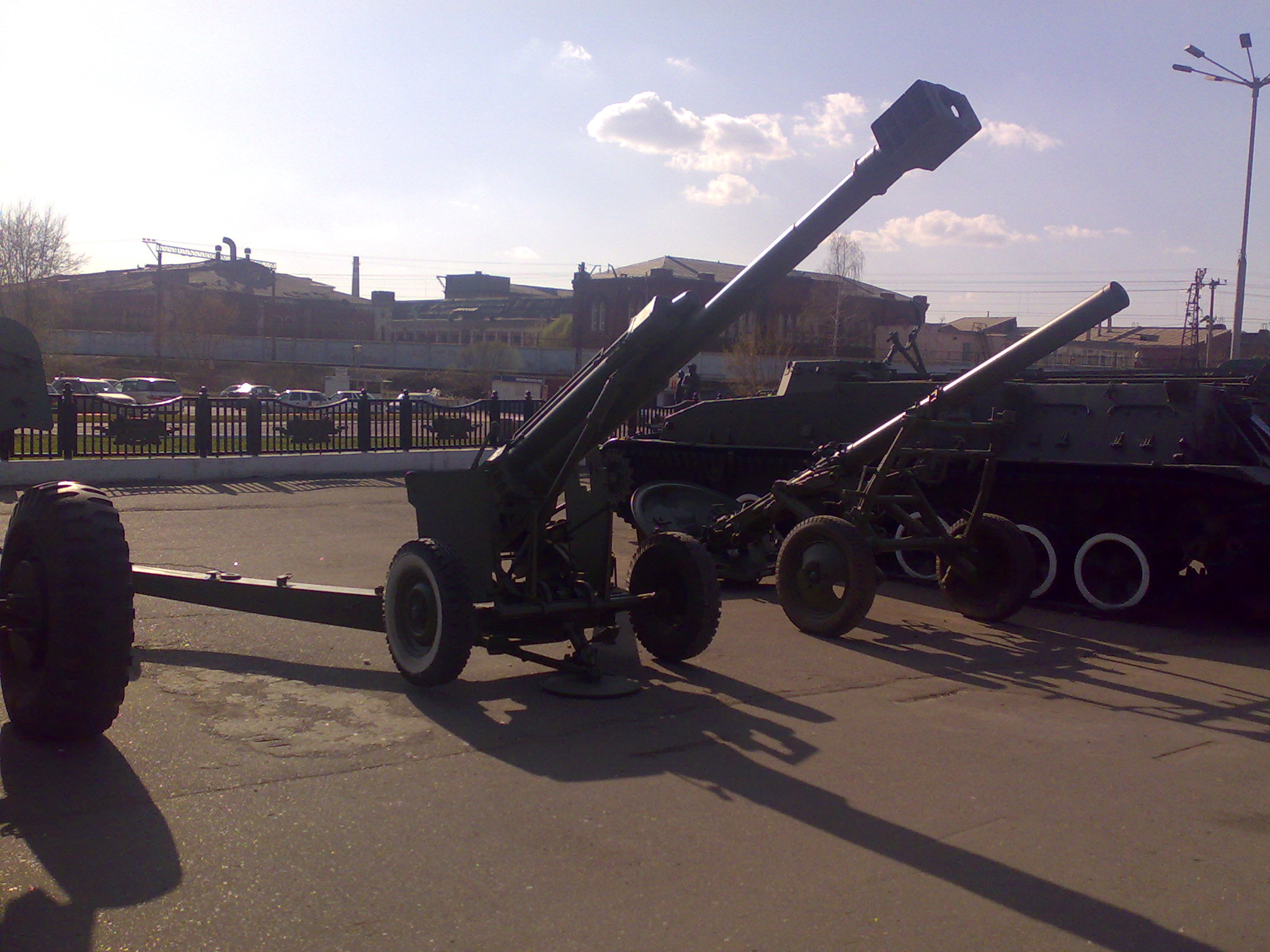

2B16 (Nona-K) Russian 120mm Towed Gun

2B16

Towed Gun
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
2B16 (Nona-K) Russian 120mm Towed Gun
Designation
2B16
Alternate Designation
2B16; Nona-K
Equipment Type
Towed Gun
Manufacturer
Motovilikha Plants
Date of Introduction
1986
Description

2B16 Nona-K is a 120mm towed gun based on the 120mm Nona gun which also served as the basis for the 2S9 Nona-S and 2S23 Nona-SVK self-propelled guns. Nona-K combines the capabilities of a gun, a mortar, and a howitzer into a single weapon system that can effectively engage troops, fortifications, and armored vehicles. To do so, this artillery system is capable of firing HE-fragmentation, shaped-charge Rocket Assisted Projectiles (RAPs), 120mm HE-fragmentation, illuminating, smoke, and incendiary mortar rounds including those designed for NATO's 120mm mortars. The Russian Army has deployed Nona-K gun systems within motorized infantry battalions. Its effectiveness has been deemed similar to standard 152/155mm HE-fragmentation howitzer ammunition.

Ground Specifications
Crew 5
Mobility Type Towed
Main Weapon 120mm Towed Gun
Variants
2B16 Nona-M The Nona-M1 is a special version designed for use by Russian airborne troops. It was introduced in late 2011 and is capable of hitting targets at ranges between 200 and 12,000 meters.
System
Alternative Designation 2B16; Nona-K
Type Towed Combination Gun
Caliber 120 mm
Carriage Split Trail, 2-wheel torsion bar suspension
Manufacturer Motovilikha Plants
Crew 5 ea
Displacement Time 2 min
Emplacement Time 2 min
Dimensions
Length, Chassis Overall 5.66 m
Length, Chassis Overall Firing INA
Length, Chassis Overall Travel 5.9 m
Width, Firing INA
Width, Overall INA
Width, Travel 1.79 m
Height, Overall 1.7 m
Weight, Combat 1.1 tons
Automotive
Fording Depth 1.5 m
Speed, Maximum Cross-Country INA
Towing Speed, Maximum Off-Road 35.0 km/h
Towing Speed, Maximum On-Road 80.0 km/h
Main Weapon System
System
Name 1x 2A51 120mm Towed Gun
Type Towed Gun
Caliber 120 mm
Breech Type Vertical sliding wedge
Length, Barrel 24.2 Caliber
Loader Type Semi-automatic
Muzzle Brake Type Multi baffle
Rate of Fire, Burst 8.0 rd/min
Rate of Fire, Normal 6.0 rd/min
Rate of Fire, Sustained 4.0 rd/min
Maximum Elevation +80 deg
Minimum Elevation -10 deg
Traverse Range 60.0 deg
Traverse, Left 30.0 deg
Traverse, Right 30.0 deg
Ammunition
Ammunition (Option 1)
Name 3VOF49
Type Frag-HE
Caliber 120 mm
Weight 19.8 kg
Fuze Type PD and Proximity
Muzzle Velocity INA
Range 850 m
Ammunition (Option 2)
Name BK-19
Caliber 120 mm
Type HEAT
Weight 13.2 kg
Fuze Type PD and Proximity
Muzzle Velocity 560 m/s
Range 11,000 m
Ammunition (Option 3)
Name OF-50
Type Frag-HE
Caliber 120 mm
Weight 19.8 kg
Fuze Type B35 PD
Muzzle Velocity 367 m/s
Range 12,800 m
Ammunition (Option 4)
Name Kitilov-2
Type Laser-Guided Projectile
Caliber 120 mm
Weight 25 kg
Fuze Type PD
Muzzle Velocity INA
Range 9,000 m
Ammunition (Option 5)
Name OF-843B
Type Frag-HE mortar
Caliber 120 mm
Weight INA
Fuze Type PD and Proximity
Muzzle Velocity INA
Range 7,000 m
Fire Control System
Collimator 1 x K-1 collimator
Direct Fire 1 x DF channel in the sight
Indirect Fire 1 x MP46M Panoramic Telescope
Protection
Shields Tin shields provide some protection against small arms fire and shell splinters / fragmentation.
Self-Entrenching Blade No
NBC Protection No
Smoke Equipment No
Details
Country of Origin Russia
Category Towed Gun/Howitzer Artillery Systems
Land > Artillery > Towed Gun/Howitzer Artillery Systems
Filter Label
2
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.66 m
Width
1.79 m
Height
1.7 m
Weight
1100 kg
Operators (4)
Russia
Ukraine
Azerbaijan
CFE Treaty
