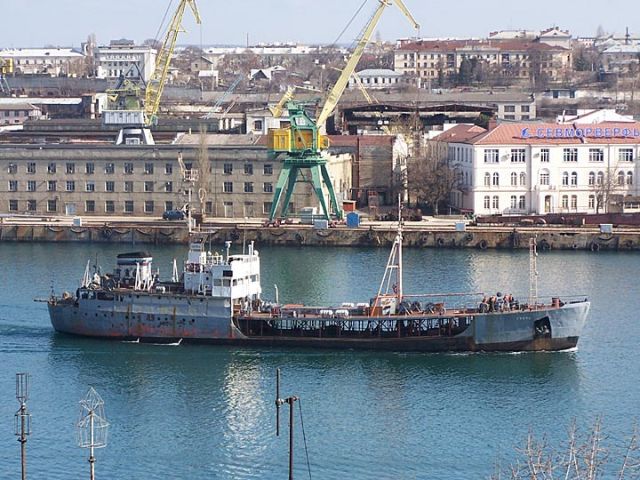

Sudak-Class (Project 561 Class) Ukrainian Water Tanker Vessel
Oil Tanker
Other
Basic Information
Name
Sudak-Class (Project 561 Class) Ukrainian Water Tanker Vessel
Designation
—
Alternate Designation
Sudak-Class (Project 561 Class) Ukrainian Water Tanker Vessel
Equipment Type
Oil Tanker
Manufacturer
—
Date of Introduction
1970
Description
The vessel was originally built for the Russian navy to provide potable water to submarines and surface ships for crew consumption and (in surface ships) for use in boilers. No ships in the class remain in Russian service. The SURA (now-SUDAK) was transferred from Russia to Ukraine in 1997. Another sister ship was transferred to Vietnam.
Naval & Littoral Specifications
Crew
28
Beam
11.50 m
Draft
3.64 m
System
Alternative Designation
Sudak-Class (Project 561 Class) Ukrainian Water Tanker Vessel
Type
Potable Water Tanker
Builder
Yantar Zavod 820, Kaliningrad, Russia
Crew
28
Cargo Capacity
700 tons of boiler water and 300 tons of potable water.
Special Equipment
3-ton capacity derrick for water hose-handling.
Dimensions
Length
81.5 m
Beam
11.5 m
Draft
3.64 m
Displacement, Standard
982 tons
Displacement, Full Load
2,115 tons
Propulsion System
Engine Name
2 x Russkiy Dizel type 8DR30/50
Engine Type
Diesel
Engine Power
1,600 total bhp
Maximum Range
2,900 nm at 10 knots
Maximum Speed
12 knots
Weapons
Note
There are no weapon systems associated with Sudak-Class vessels.
Radar Systems
Navigation Radar
1 x Don-2 Navigation Radars
Protection
Hull Armor
INA
Countermeasures
INA
NBC Water Washdown System
Yes
Details
Country of Origin
Russia
Category
Support Ships
Naval > Support Ships
Filter Label
S
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
81.5 m
Width
—
Height
—
Weight
—
Operators (3)
Russia
Ukraine
Vietnam
