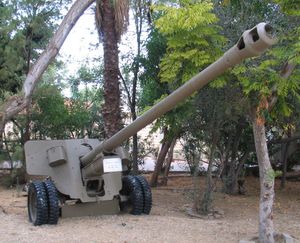

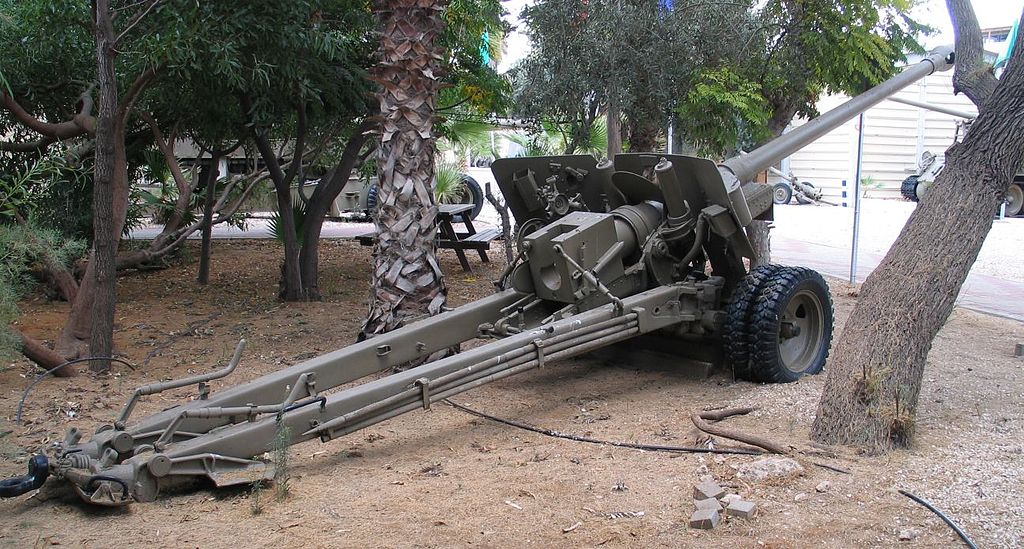

BS-3 (M-1944) Russian 100mm Towed Anti-Tank Gun

M-1944

Towed Gun
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
BS-3 (M-1944) Russian 100mm Towed Anti-Tank Gun
Designation
M-1944
Alternate Designation
M-1944; BS-3
Equipment Type
Towed Gun
Manufacturer
Date of Introduction
1944
Description

The 100 mm field gun M1944 (BS-3) (Russian: 100-мм полевая пушка обр. 1944 г. (БС-3)) was a Soviet 100 mm anti-tank and field gun. The gun was successfully employed in the late stages of World War II, and remained in service into the 1950s, being replaced in Soviet service by the T-12 antitank gun and the 85 mm antitank gun D-48 in 1955. The BS-3 was also sold to a number of other countries and in some of these countries the gun is still in service. A number of BS-3 pieces are still stored in Russian Ground Forces arsenals. Also, in 2012, at least 12 BS-3 guns are active with the 18th Machine Gun Artillery Division, located on the Kuril Islands, used as anti-ship and anti-landing guns. The BS-3 was based on the B-34 naval gun. The development team was led by V. G. Grabin. The gun was employed by light artillery brigades of tank armies (20 pieces along with 48 ZiS-3) and by corps artillery. In the Second World War the BS-3 was successfully used as a powerful anti-tank gun. It was capable of defeating any contemporary tank at long range, excluding the Tiger Ausf B: to destroy that heavy tank the gun needed to shoot at less than 1600 m from the target. The gun was also used as a field gun. Though in this role it was less powerful than the 122 mm A-19, as it fired a smaller round, the BS-3 was more mobile and had a higher rate of fire.

Ground Specifications
Crew 6
Variants
Type 59 Chinese Variant
System
Alternative Designation M-1944; BS-3
Type Towed Anti-Tank Gun
Crew 6-8
Carriage Split trail
Displacement Time INA
Emplacement Time INA
Dimensions
Length 9.37 m
Width 2.15 m
Barrel Length Bore: 5.34 m (17 ft 6 in) L/53.5 Overall: 5.96 m (19 ft 7 in) L/59.6
Height 1.5 m
Weight, Combat 3,650 kg
Main Weapon System
System
Name M-1944
Type Towed Anti-Tank Gun
Caliber 100 mm
Breech Semi-automatic vertical sliding-wedge
Recoil Hydro-pneumatic
Carriage Split trail
Rate of Fire 8 to 10 rpm
Muzzle Velocity 900 m/s
Maximum Firing Range 20 km
Maximum Elevation +45 deg
Minimum Elevation -5 deg
Traverse Range 58 deg
Traverse Right 29 deg
Traverse Left 29 deg
Ammunition
Name BR-412D
Type APBC
Caliber 100 mm
Projectile Weight 15.6 kg
Basic Load INA
Armor Penetration Armor penetration (BR-412B, 30° degrees) 500 m : 190 mm (547 yds : 6.29 in) 1000 m : 170 mm (1,093 yds : 6 in)
Details
Country of Origin Russia
Category Land
Land
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.37 m
Width
2.15 m
Height
1.5 m
Weight
3650 kg
Operators (20)
Russia
China
Germany
Poland
India
North Korea
Bulgaria
Cyprus
Egypt
Hungary
Lebanon
Liberia
Mali
Mongolia
Mozambique
Nicaragua
Romania
Somalia
Sudan
Vietnam
