Jump 20 American Unmanned Aerial Vehicle (UAV)

Jump 20

Tactical Unmanned Aerial Vehicle (UAV)

Spotted an error? Sign in to suggest an edit.

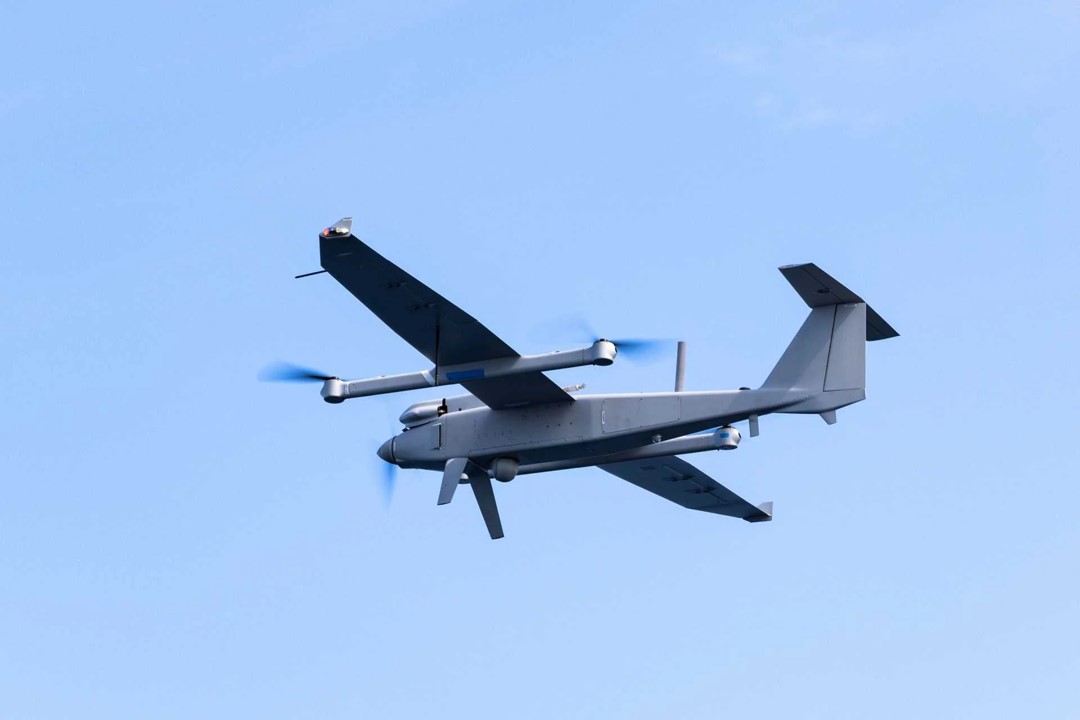

Jump 20 American Unmanned Aerial Vehicle (UAV) — Jump 20 American UAV (A)TRADOC ODIN WEG

Basic Information

Name

Jump 20 American Unmanned Aerial Vehicle (UAV)

Designation

Jump 20

Alternate Designation

Jump 20

Equipment Type

Tactical Unmanned Aerial Vehicle (UAV)

Manufacturer

AeroVironment

Date of Introduction

2024

Description

The Jump 20 American Unmanned Aerial Vehicle (UAV) is a vertical takeoff and landing (VTOL), fixed-wing unmanned aircraft used to provide advanced multi-sensor intelligence, surveillance, and reconnaissance (ISR) services. Delivering 13+ hours of endurance and an operational range of 185 kilometers (115 miles), the JUMP 20 is ideal for multi-mission operations.

Air & Air Defense Specifications

Engine Gasoline

Max Speed 92.6 km/h

Range 185.0 km

Endurance 13.00 hrs

Service Ceiling 5182 m

Wingspan 5.70 m

Payload Capacity 13 kg

System

Alternate Designation Jump 20

Type Unmanned Aerial Vehicle (UAV)

Manufacturer AeroVironment

Payload Capacity 13.6 kg

Payload Options The Jump 20 offers flexible payload options utilizing industry leading imaging sensors such as HoodTech 09EO960, long-range EO/MWIR, as well as onboard tracking, stabilization and video processing.

Launch Method No launch system or runway required Vertical takeoff & landing

Recovery Method VTOL Landing

Note The Jump 20 features a common autopilot and ground control system architecture providing a highly customizable, modular platform that can be custom-configured to meet operational or customer requirements.

Dimensions

Length 2.9 m

Height INA

Wingspan 5.7 m

Maximum Takeoff Weight 97.5 kg

Automotive

Engine Name MOGAS, 190 cc EFI Engine Battery Powered VTOL Jump

Engine Type Gas

Engine Power INA

Maximum Speed 92.6 km/h

Maximum Range 185 km

Service Ceiling 5,182 m

Endurance 13 hours

Image Sources

Note https://www.avinc.com/images/uploads/product_docs/Jump20_Datasheet_v02.pdf; https://armyrecognition.com/news/army-news/2025/exclusive-u-s-marines-22nd-meu-conduct-first-use-of-jump-20-drone-from-amphibious-warship-for-intelligence; https://www.avinc.com/

Details

Country of Origin United States

Category UAVs

Air > UAVs

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

2.9 m

Width

5.7 m

Height

—

Weight

97.5 kg

Operators (1)

United States
