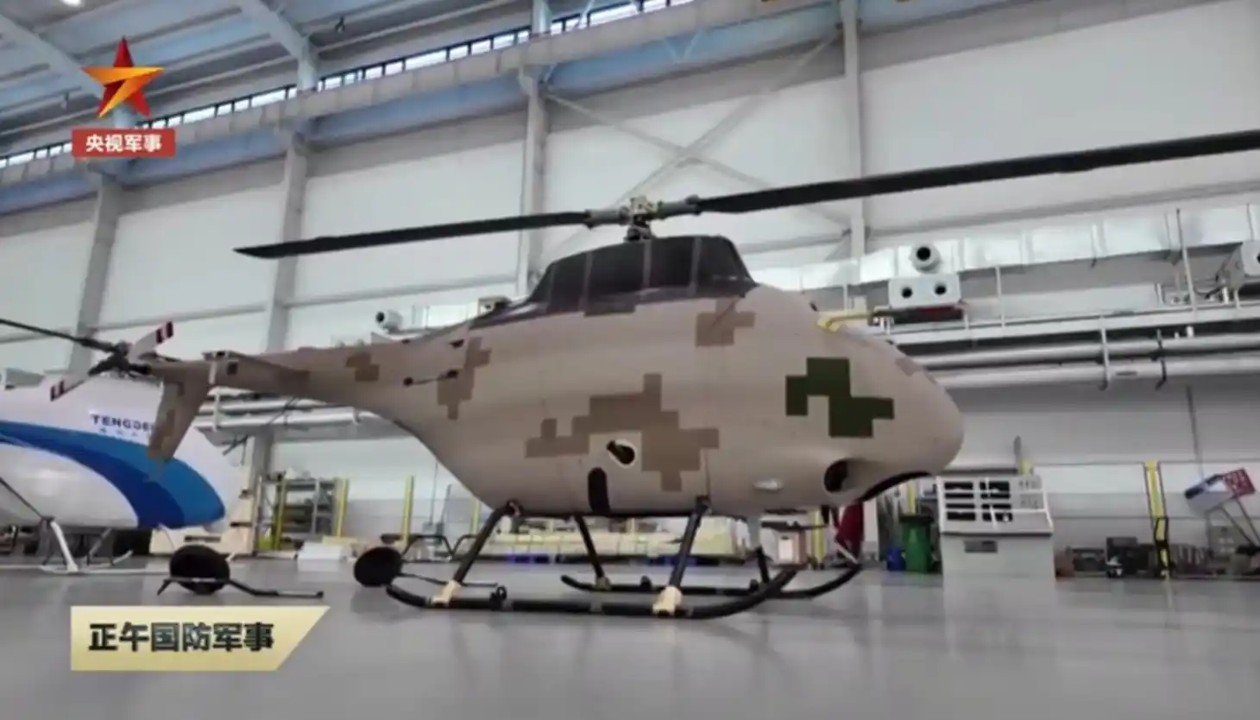

Mo Yu Jian Plateau-Type Chinese Unmanned Aerial Vehicle (UAV)

Mo Yu Jian Plateau-Type

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Mo Yu Jian Plateau-Type Chinese Unmanned Aerial Vehicle (UAV)
Designation
Mo Yu Jian Plateau-Type
Alternate Designation
Mo Yu Jian Plateau-Type
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Sichuan Tengden Sci-Tech Innovation Co., Ltd
Date of Introduction
2025
Description

The Mo Yu Jian Plateau-Type Chinese Unmanned Aerial Vehicle (UAV) is designated as a reconnaissance-strike platform capable of multiple mission profiles. The Mo Yu Jian fills a critical niche in China's unmanned systems inventory by combining rotary-wing maneuverability with armed precision strike capability in extreme terrain. Chinese analysts emphasize the platform's ability to maintain stable flight at high altitude while firing guided munitions could make it useful in roles ranging from border patrol to battlefield interdiction to security overwatch for remote outposts. The helicopter's design specifically addresses the harsh conditions typical of plateau regions—strong winds, sudden weather changes, and severe temperature swings. This makes it potentially suitable for environments where crewed helicopters face safety risks or where fixed-wing drones lack the maneuverability required for confined terrain operations.

Air & Air Defense Specifications
Engine The helicopter is equipped with upgraded engines specifically designed to maintain rotor efficiency in thin-air environments where reduced air density severely affects rotor dynamics, payload capacity, and fuel efficiency. These enhancements are essential for sustained operations above 4,000 meters.
Max Speed 178.0 km/h
Range 900.0 km
Endurance 8.00 hrs
Service Ceiling 7000 m
Rotor Diameter 6.40 m
System
Alternate Designation Mo Yu Jian Plateau-Type
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Sichuan Tengden Sci-Tech Innovation Co., Ltd.
Payload Capacity INA
Dimensions
Length 7.87 m
Height 2.41 m
Rotor Diameter 6.4 m
Maximum Takeoff Weight 550 kg
Automotive
Engine Name INA
Engine Type The helicopter is equipped with upgraded engines specifically designed to maintain rotor efficiency in thin-air environments where reduced air density severely affects rotor dynamics, payload capacity, and fuel efficiency. These enhancements are essential for sustained operations above 4,000 meters.
Engine Power INA
Maximum Speed 178 km/h
Cruise Speed INA
Maximum Range 900-1,000 km
Service Ceiling 7,000-7,200 m
Endurance 8-9 hours
Main Weapon System
Note The aircraft is capable of carrying missiles for both moving and stationary targets. While Tengden has not officially disclosed the specific missile types, the company's product range and Chinese defense industry patterns suggest compatibility with missiles from the AR (Archer) series, which are lightweight weapons specifically designed for UAV platforms.
Details
Country of Origin China
Category UAVs
Air > UAVs
Filter Label
M
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
7.87 m
Width
6.4 m
Height
2.41 m
Weight
550 kg
Operators (1)
China
