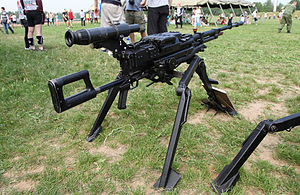

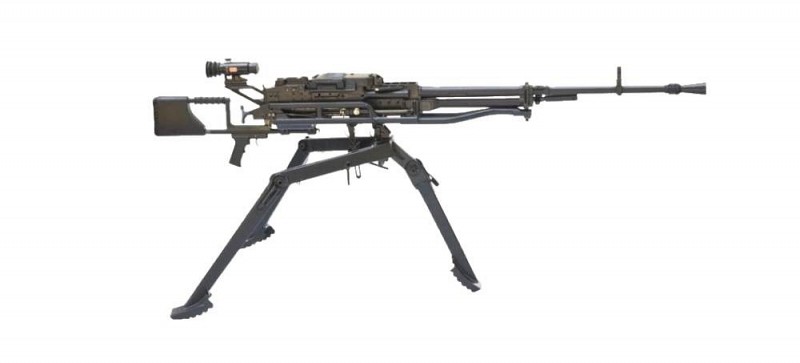

NSV Russian 12.7mm Heavy Machine Gun

NVS

Heavy Machine Gun
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
NSV Russian 12.7mm Heavy Machine Gun
Designation
NVS
Alternate Designation
NVS; NSVS (when mounted on tripod)
Equipment Type
Heavy Machine Gun
Manufacturer
Kazakhstan
Date of Introduction
1974
Description

The NSV (Russian НСВ Никитина-Соколова-Волкова), also known as the «Utyos» (Project: Lonely Cliff), is a 12.7mm caliber heavy machine gun of Soviet origin, named after the designers, G. I. Nikitin (Г. И. Никитин), Y. S. Sokolov (Ю. М. Соколов) and V. I. Volkov (В. И. Волков). It was designed to replace the DShK machine gun and was adopted by the Soviet Army in 1971. It is no longer being produced in Russia; the manufacturing license for the NSV ended up in Kazakhstan after the break-up of the Soviet Union. The NSV has been manufactured in Bulgaria, India, Poland, and Yugoslavia under license. The NSV weighs 25 kg (55 lb), has a rate of fire of 700–800 rounds per minute, and an effective range from 1,500 m (1,600 yd) to 2,000 m (2,200 yd) against airborne and ground targets, respectively. A loaded ammunition belt with 50 rounds weighs 11 kg (24 lb). The Soviet Army began looking for a new heavy machine gun to replace its older SGM and DShK machine guns in the early 1950s. The Soviet Army liked the idea behind the German MG 42; a versatile weapon used on a variety of mounts to perform many different roles. Two Soviet weapon designers were asked to design one weapon each utilizing the same principle. Testing approved Mikhail Kalashnikov's solution; it was found to be more reliable and cheaper to manufacture than the design of Grigory Nikitin and Yuri Sokolov. Kalashnikov's machine gun became the new standard machine gun and was named PK. Nikitin's and Sokolov's design was however not forgotten. It was developed into the heavy NSV machine gun about 10 years later and selected in 1969 as the successor to the DShK/DShKM machine gun. It was accepted in service by the Soviet Army in 1971. The machine gun was also license-manufactured in Bulgaria, India, Yugoslavia, and Poland. The Yugoslavian version of the NSVT is called the M87. Production of the NSV has ended in Russia, and it is currently being replaced by the Kord-heavy machine gun. The Russian Army needed a more accurate heavy machine gun, and it has also been increasingly difficult to get hold of spare parts. NSV production was located in Ukraine and in Kazakhstan and was disrupted by the end of the Soviet Union.

Ground Specifications
Main Weapon 12.7mm Heavy Machine Gun
Range 2.0 km
Variants
NSVT Tank-mounted version (See NOTES) A tripod-mount (6T7) version is available for infantry use in a ground role. However, the NSVT appears more commonly mounted on the turrets of tanks as an antiaircraft machinegun.
Russian NSV/NSVT The Russian version can produce the guns for either Russian 12.7x108 or NATO 12.7 x 99 (.50-cal) ammunition.
Kord A Russian modernized version of the NSV/NSVT. Improvements include reduced weight (50% for hand-carry 6P57), reduced recoil, increased barrel life, improved reliability, improved accuracy, increased burst rate capacity, and improved reliability and maintenance. Reduced weight and recoil permits use with the 6T19 light machinegun bipod. Like the above Russian MGs, the Kord can be produced in either ammunition version. Vehicle version is 6P49. Swivel mount hand-operated versions are 6P58 and 6P59.
System
Alternative Designation NVS; NSVS (when mounted on tripod)
Type Heavy Machine Gun
Caliber 12.7 mm
Barrel Life 5,000 rds
Operation Gas
Change Time, Barrel 5.0 sec
Feed System Left or right from metal link belt from 50-rd boxes
Fire Mode Automatic; short bursts (four to six), long bursts (10 to 15), or continuously
Rate of Fire, Cyclic 680-800 rd/min
Rate of Fire, Practical 100.0 rd/min

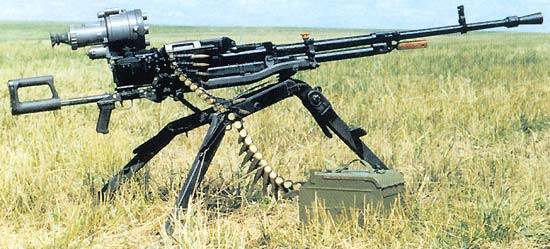

Notes The HMG in the above picture is of a Finnish NSV.
Dimensions
Length 1,560 mm
Height 380 mm
Length 1,900 mm
Width 860 mm
Weight, Barrel 9.2 kg
Weight, Empty 25 kg
Weight, Total System 43 kg
Weight, Tripod 16 kg
Mount
Elevation -5 to +75 deg
Traverse 360 deg
Type 6T7 (infantry) tripod or 6U6 (w/seat) universal tripod
Ammunition
Caliber 12.7x108mm
Combat Load 300 rds
Type API, API-T, HEI
Ammunition (Option 1)
Type API
Caliber 12.7x108mm
Muzzle Velocity 860.0 m/s
Range, Maximum Effective, Anti-Aircraft 1,000 m
Range, Maximum Effective, Armor 800 m
Range, Maximum Effective, Ground 2,000 m
Range, Maximum Effective, Night 1,000 m
Range, Maximum, Ground 7,850 m
Munition All
Name B-32 (API); BZT-44 (API-T); HEI
Sights
Sights #1
Name INA
Type Metallic sights, (tangent leaf rear and folding front post)
Range 2000 m
Sights #2
Name 10P50 Optical
Type Day optical sight
Magnification 3-6x
Sights #3
Name 1PN52-1
Type Night sight
Magnification 5.3x
Sights #4
Name 10P80 (used w/ 6U6 mount)
Type AA collimating sight (aircraft speed to 300 km/h)
Sights #5
Name K10-T (on NSVT for T- 72/T-80)
Type Reflex AA sight
Details
Country of Origin Russia
Category Machine Guns
Land > Infantry Weapons > Machine Guns
Filter Label
N
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.56 m
Width
0.86 m
Height
0.38 m
Weight
25 kg
Operators (32)
Russia
South Korea
Ukraine
Poland
India
North Korea
Pakistan
Czech Republic
Serbia
Belarus
Armenia
Azerbaijan
Bosnia and Herzegovina
Bulgaria
Côte d'Ivoire
Croatia
Cyprus
Djibouti
Egypt
Finland
Georgia
Iraq
Kazakhstan
Kuwait
Malaysia
Mauritania
Mongolia
Namibia
North Macedonia
Sierra Leone
Syria
Vietnam
