ZQHW-120 Chinese Unmanned Aerial Vehicle (UAV)
ZQHW-120
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
ZQHW-120 Chinese Unmanned Aerial Vehicle (UAV)
Designation
ZQHW-120
Alternate Designation
ZQHW-120
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
China Defense Equipment Co
Date of Introduction
2024
Description

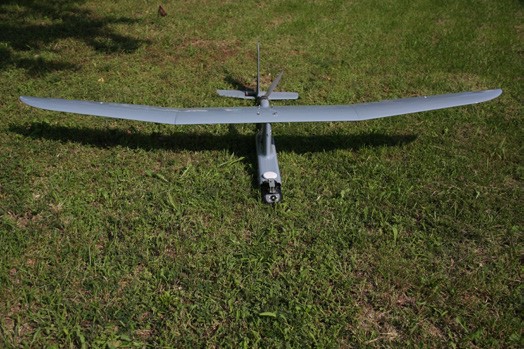

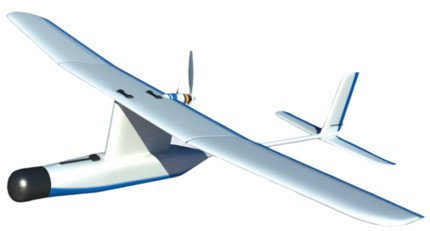

The ZQHW-120 Chinese Unmanned Aerial Vehicle (UAV) is a small portable reconnaissance-and-strike unmanned aerial vehicle (UAV). Based on mission requirement, the UAV system can carry seeker and warhead to conduct reconnaissance and suicide strike missions.120 UAV system is designed for small scale precision strikes.
Air & Air Defense Specifications
Engine
Battery
Max Speed
150.0 km/h
Cruise Speed
60.0 km/h
Range
20.0 km
Endurance
1.00 hrs
Service Ceiling
800 m
Wingspan
2.50 m
Payload Capacity
1 kg
System
Alternate Designation
ZQHW-120
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
China Defense Equipment Co.
Payload Capacity
1 kg
Maximum Control Radius
20 km
Seeker
TV seeker with 720P revolution
Navigation
MEMS Gyro GPS
Transmission Rate
≥4Mbps
Transmission Range
15 km
Takeoff Preparation Time
5 min
Operation Environment
-20℃to+55℃
Storage Life
10 years in packing box in warehouse at humidity less than 80%
Takeoff

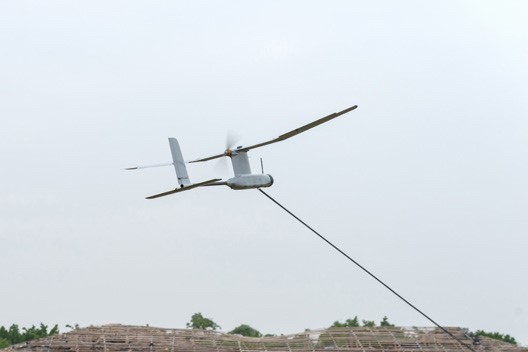

Bungee catapult
Landing

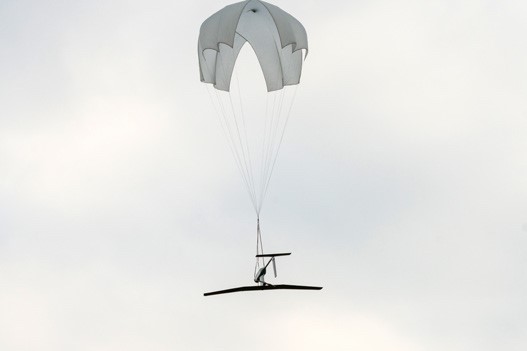

Belly-in or parachute landing
Dimensions
Length
1.7 m
Height
INA
Wingspan
2.5 m
Maximum Takeoff Weight
6.2 kg
Automotive
Engine Name
INA
Engine Type
Battery
Engine Power
INA
Cruise Speed
60 km/h - 90 km/h
Attack Speed
120 km/h - 150 km/h
Maximum Speed
150 km/h
Maximum Range
20 km
Service Ceiling
800 m
Wind Resistance
10m/s
Endurance
1 hour
Armament
Warhead
Blast-fragmentation warhead; 1 kg
Image Sources
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
Z
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.7 m
Width
2.5 m
Height
—
Weight
6.2 kg
Operators (1)
China
