M1087 American 6x6 Medium Tactical Vehicle (MTV) Expandable Van
M1087
Medium Tactical Vehicle (MTV) Cargo Truck
Other
Basic Information
Name
M1087 American 6x6 Medium Tactical Vehicle (MTV) Expandable Van
Designation
M1087
Alternate Designation
M1087
Equipment Type
Medium Tactical Vehicle (MTV) Cargo Truck
Manufacturer
—
Date of Introduction
1996
Description

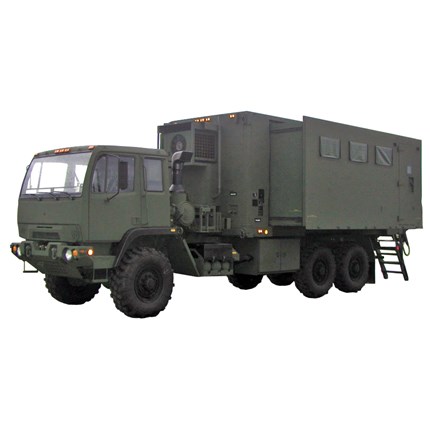

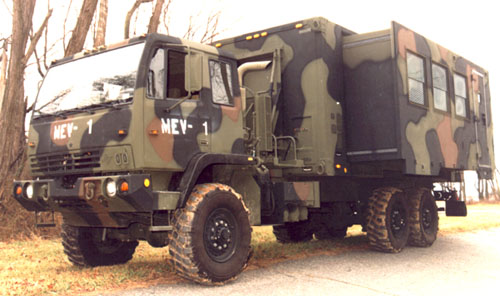

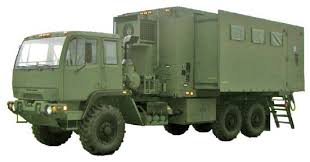

The M1087 Expandable Van is envisioned to be a mobile office used at various echelons in a field environment. The M1087 van sides pull out from the main body to form the office complex. It is equipped with 110V AC to operate computer, radio and air condition systems. A 24 VDC electrical system is provided to operate the electrical components (radios and blackout lights, etc.) until the office complex can be set up. The vehicle is still in the developmental phase.
Ground Specifications
Crew
1
Engine
403-cu in (6.6-liter) liquid-cooled, turbocharged, aftercooled, in-line 6-cylinder diesel (290 hp)
Active Protection
None
Max Speed
88.0 km/h
Range
483.0 km
Variants
M1078 A0/A1/A1R/A1P2
LMTV Cargo NSN 2320-01-549-8577
M1078 A0/A1/A1R/A1P2
- LMTV Cargo with winch NSN 2320-01-549-8611
M1079 A0/A1/A1R/A1P2
LMTV Van NSN 2320-01-552-7745
M1079 A0/A1/A1R/A1P2
LMTV Van with winch NSN 2320-01-552-7749
M1080 A0/A1/A1R/A1P2
LMTV Chassis 3.9 m NSN 2320-01-552-7791
M1081 A0
LMTV Cargo-airdrop LVAD
M1082 A1/A1R/A1P2
Trailer, LMTV cargo NSN 2320-01-449-1775
M1083 A0/A1/A1R/A1P2
MTV Cargo NSN 2320-01-549-8610
M1083 A0/A1/A1R/A1P2
MTV Cargo with winch NSN 2320-01-549-8565
M1084 A0/A1/A1R/A1P2
MTV Cargo with material handling equipment (MHE) NSN 2320-01-552-7739
M1084 A0/A1/A1R/A1P2/RSV
MTV Cargo with MHE (HIMARS RSV) NSN 2320-01-552-7767
M1085 A0/A1/A1R/A1P2
MTV Cargo, Long Wheelbase Cargo (LWB) NSN 2320-01-552-7773
M1085 A0/A1/A1R/A1P2
MTV LWB Cargo with winch NSN 2320-01-552-7770
M1085 A0/A1/A1R/A1P2
MTV LWB Cargo w/ Sideboard Delete NSN 2320-01-552-7770
M1086 A0/A1/A1R/A1P2
MTV LWB Cargo with MHE NSN 2320-01-552-7780
M1086 A0/A1/A1R/A1P2
MTV LWB Cargo with MHE & winch NSN 2320-01-552-7776
M1087 A1R/A1P2
MTV Expansible Van NSN 2320-01-552-7781
M1088 A0/A1/A1R/A1P2
MTV Tractor NSN 2320-01-552-7759
M1088 A0/A1/A1R/A1P2
MTV Tractor with winch NSN 2320-01-552-7759
M1089 A0/A1/A1R/A1P2
MTV Wrecker Oshkosh-produced M1089 have different recovery equipment NSN 2320-01-595-3994
M1090 A0/A1
MTV Dump
M1091
MTV 1,500 gallon Fuel Tanker Type Classified but did not enter production
M1092 A0/A1/A1R/A1P2
MTV Chassis 4.1 m NSN 2320-01-552-7793
M1093 A0
MTV Cargo-airdrop LVAD
M1094 A0
MTV Dump-airdrop LVAD
M1095 A1/A1R/A1P2
Trailer, MTV Cargo NSN 2320-01-449-1776
M1096 A0/A1/A1R/A1P2
MTV LWB Chassis 4.5 m NSN 2320-01-552-7796
M1140 A1/A1R HIMARS
High Mobility Artillery Rocket System, launcher chassis
M1147
LHS (palletized) Load Handling System Trailer NSN 2320-01-508-7887
M1148 A1R/A1P2
LHS (palletized) Load Handling System Truck, eight metric tonnes / 8.8-ton NSN 2320-01-557-4546
M1157 A1R/A1P2
10-ton Dump NSN 2320-01-552-7787
M1157 A1R/A1P2
10-ton Dump with winch NSN 2320-01-552-7782
XM1160
10-ton MEADS air defence chassis (5.5 m wheelbase )
M1273 A1P2
MTV 10-ton chassis NSN 2320-01-621-6239
System
Alternative Designation
M1087
Type
Medium Tactical Vehicle (MTV) Expandable Van
Family
FMTV Series
Configuration
6x6
Crew
1 ea
Cab Seating
3-Man
Winch
INA
Dimensions
Length
9.88 m
Width
2.44 m
Height, Top of Cab
2.76 m
Height, Air Transport
2.59 m
Height, Air Drop
2.18 m
Wheelbase
5.50 m
Ground Clearance
559 mm
Payload Capacity
4,536 kg
Curb Weight
11,198 kg
Cargo Bed Length
6,096 mm
Cargo Bed Width
2,413 mm
Automotive
Engine Name
1 x Caterpillar 3116 ATAAC
Engine Type
403-cu in (6.6-liter) liquid-cooled, turbocharged, aftercooled, in-line 6-cylinder diesel
Engine Power
290 hp (216 kW) at 2,600 rpm
Transmission
Allison MD 3070 PT automatic/select
electronically controlled; 7 forward/1
reverse gears
Power-to-Weight Ration
19.52-34.47 hp/metric ton
Maximum Speed
88 km/h
Range
483 km
Approach Angle
40 deg
Departure Angle
63 deg
Gradient
60 percent
Side Slope
30 percent
Fording, Unprepared
0.91 m
Fording, Prepared
1.52 m
Main Weapon System
Note
1 x 12.7-mm machine gun mount over cab
Protection
Armor
Current and recent operational scenarios now call for logistic trucks of the FMTV type to at least have the option of cab armoring. When it entered production, armoring was not considered an option for the FMTV. The first protection solution for the FMTV was not in answer to such scenarios, but was developed by Stewart & Stevenson and O'Gara-Hess & Eisenhardt Armoring Company (OHE). Called the Crew Protected Cab, it was specifically for the HIMARS variant and offered flash and Foreign Object Debris (FOD) protection during launch. Designs followed for an Enhanced Crew Protected Cab, and later an Armor Protected Cab, each adding more ballistic capability against direct fire, artillery burst and mines.
Applique Armor
To meet emerging threats on deployed operations, in March 2004 DRS Technical Services was awarded a $16.3 million contract to provide 272 armor protection kits for the FMTV. A total of 1,862 kits are understood to have been produced in total. These kits were based around ballistic-protection panels installed on standard FMTV cabs.
In answer to demands for greater crew protection, BAE Systems developed the Low Signature Armored Cab (LSAC) for all variants of the FMTV. The LSAC replaced the standard FMTV cab (with which it shares internals) in a remove and replace operation.
To meet the US Army's current Long Term Armor Strategy (LTAS) for armored cabs, BAE Systems developed the LTAS cab for the FMTV. BAE Systems states that it produced over 9,000 LTAS cabs for the FMTV A1P2 variant. All Oshkosh FMTV vehicles include the company's own LTAS-compliant armor solution.
LTAS is based around the A and B kit principles, this allowing for vehicles to be armored as required, and with the add-on applique package adaptable to prevailing threats and upgradeable as new armoring technologies emerge. The A-Kit, which includes a new cab, modifies the FMTV to allow the addition of armour; the B-Kit being the bulk of the armor itself.
Active Protection System
No
NBC Protection
INA
Smoke Equipment
INA
Details
Country of Origin
United States
Category
Logistics
Land > Combat Support Vehicles > Logistics
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.88 m
Width
2.44 m
Height
—
Weight
11198 kg
Operators (14)
United States
Israel
Afghanistan
Argentina
Cameroon
Canada
Iraq
Jordan
New Zealand
Saudi Arabia
Singapore
Somalia
Thailand
United Arab Emirates
