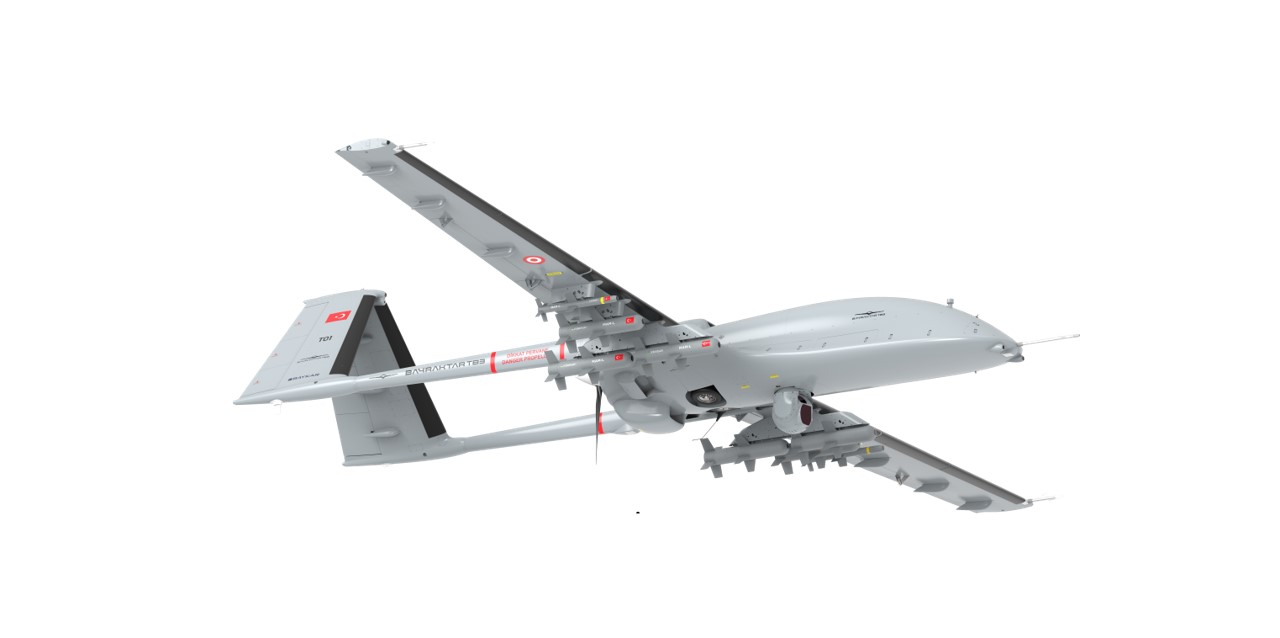

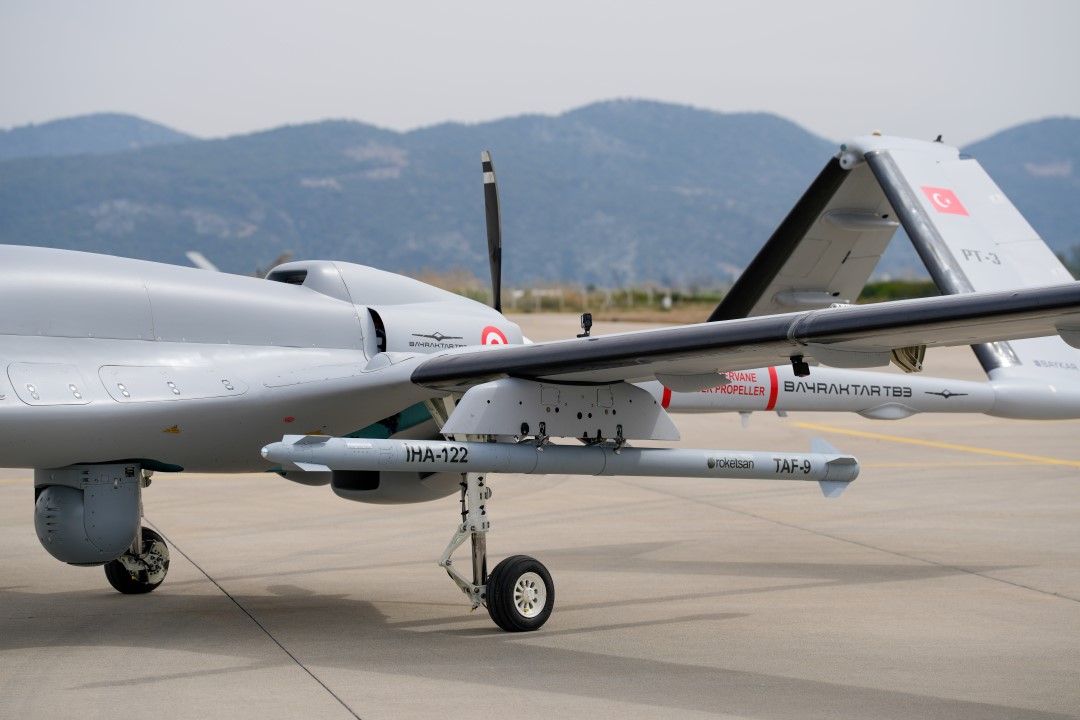

Bayraktar TB3 Turkish Unmanned Aerial Vehicle (UAV)
Bayraktar TB3
Tactical Unmanned Aerial Vehicle (UAV)
Other




Basic Information
Name
Bayraktar TB3 Turkish Unmanned Aerial Vehicle (UAV)
Designation
Bayraktar TB3
Alternate Designation
Bayraktar TB3
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Baykar
Date of Introduction
2025
Description
The Bayraktar TB3 is a Turkish unmanned aerial vehicle (UAV) designed for takeoff and landing on short runway aircraft carriers. In addition to its reconnaissance, surveillance, and intelligence-gathering missions, the Bayraktar TB3 can also conduct assault operations using smart munitions mounted under its wings. One of the key features of the Bayraktar TB3 is its ability to perform armed operations at great distances. This capability is enhanced by custom features such as foldable wings, which make it suitable for use on aircraft carriers. Furthermore, the Bayraktar TB3 can be operated from very remote locations, thanks to its advanced Line-Of-Sight and Beyond-Line-Of-Sight communication capabilities.
Air & Air Defense Specifications
Engine
Turbocharged Diesel (170 hp)
Max Speed
240.0 km/h
Range
2000.0 km
Endurance
21.00 hrs
Service Ceiling
7620 m
Wingspan
14.00 m
Payload Capacity
280 kg
System
Alternate Designation
Bayraktar TB3
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Bayraktar
Payload Capacity
280 kg
Payload - ISR
Interchangeable EO/IR/LD, Multi-Mode AESA Radar, ELINT, Sonobuoy
Communication
LOS & BLOS
Take Off/Landing/Cruise/Taxi
Autonomous
Dimensions
Length
8.35 m
Height
2.6 m
Wingspan
14.0 m
Maximum Takeoff Weight
1,600 kg
Automotive
Engine Name
INA
Engine Type
Turbodiesel
Engine Power
170 hp
Maximum Speed
240 km/h
Maximum Range
2,000 km
Service Ceiling
7,620 m
Endurance
21 hours
Armament
Note
6 x Laser Guided, INS/GPS Guided, IR Guided and Air-to-Air Munitions
Details
Country of Origin
Turkey
Category
UAVs
Air > UAVs
Filter Label
B
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
8.35 m
Width
14 m
Height
2.6 m
Weight
1600 kg
Operators (1)
Turkey
