CH-7 Chinese Unmanned Aerial Vehicle (UAV)

CH-7

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
CH-7 Chinese Unmanned Aerial Vehicle (UAV)
Designation
CH-7
Alternate Designation
CH-7; Caihong-7, meaning Rainbow-7
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Chinese Defence Company ALIT (Aerospace Long-March International)
Date of Introduction
2025
Description

The China Aerospace Science and Technology Corporation (CASC) is shifting the role of its CH-7 stealth unmanned aerial vehicle (UAV) from a strategic armed reconnaissance asset to a tactical stealth surveillance platform. This information was reported by Chinese state-owned media during Airshow China 2024. The state-owned newspaper Global Times describes the CH-7 as a "peer competitor" to the Northrop Grumman RQ-180, which is currently in service with the U.S. Air Force. The RQ-180 is designed to conduct intelligence, surveillance, and reconnaissance (ISR) operations in areas protected by adversary air-defense systems. Aerospace CH UAV Co, a Chinese firm involved in the development of the CH-7, noted that the UAV made its debut at Airshow China in 2018 as a stealth reconnaissance and strike platform for strategic operations. However, developments in modern warfare and changing client demands have led to a transformation of the UAV's role into that of a "stealth early warning" platform.

Air & Air Defense Specifications
Max Speed 617.4 km/h
Range 2000.0 km
Endurance 16.00 hrs
Wingspan 27.30 m
System
Alternate Designation CH-7; Caihong-7, meaning Rainbow-7
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Chinese Defence Company ALIT (Aerospace Long-March International)

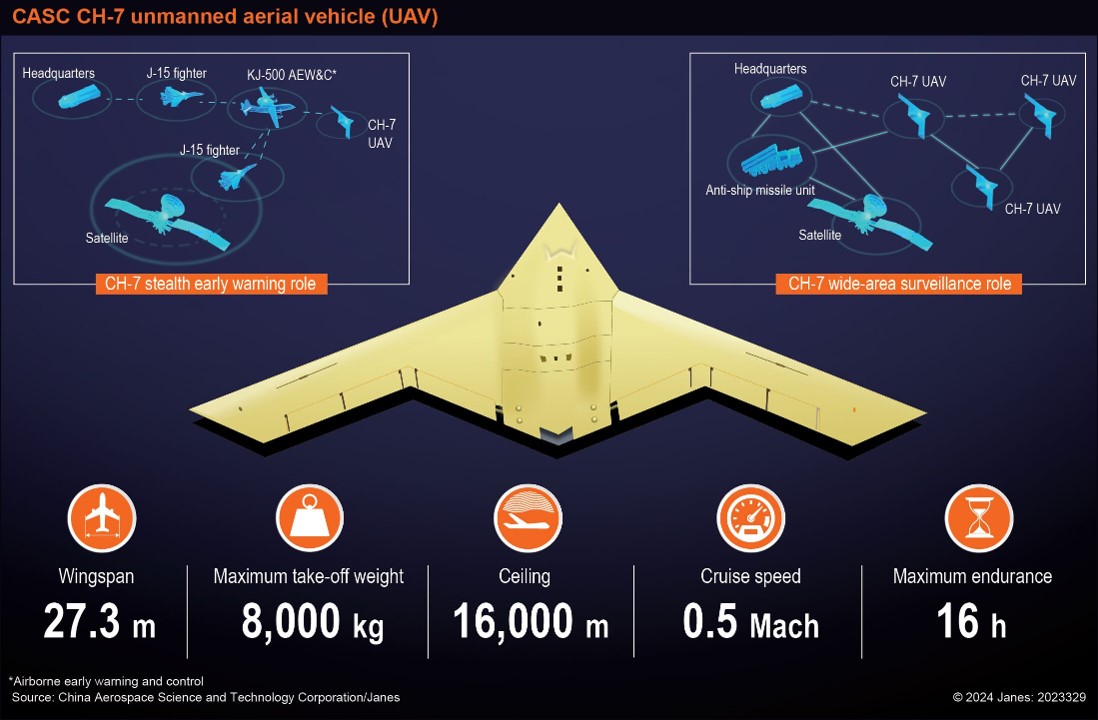

Roles Operational roles now conceived for the CH-7 include monitoring combat areas, electronic support and jamming, and long-range air and sea surveillance.
Operator 1 ea
Intercept Radar The CH-7 can intercept radar electronic signals, and simultaneously detect, verify and monitor high-value targets, such as hostile command stations, missile launch sites and naval vessels.
Dimensions
Length 10.0 m
Wingspan 27.3 m
Height INA
Weight INA
Maximum Takeoff Weight 8,000 kg
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Fuel Capacity INA
Cruising Speed Mach 0.5
Operational Radius 2,000 km
Maximum Altitude 16,000 m
Endurance 16 hours
Armament

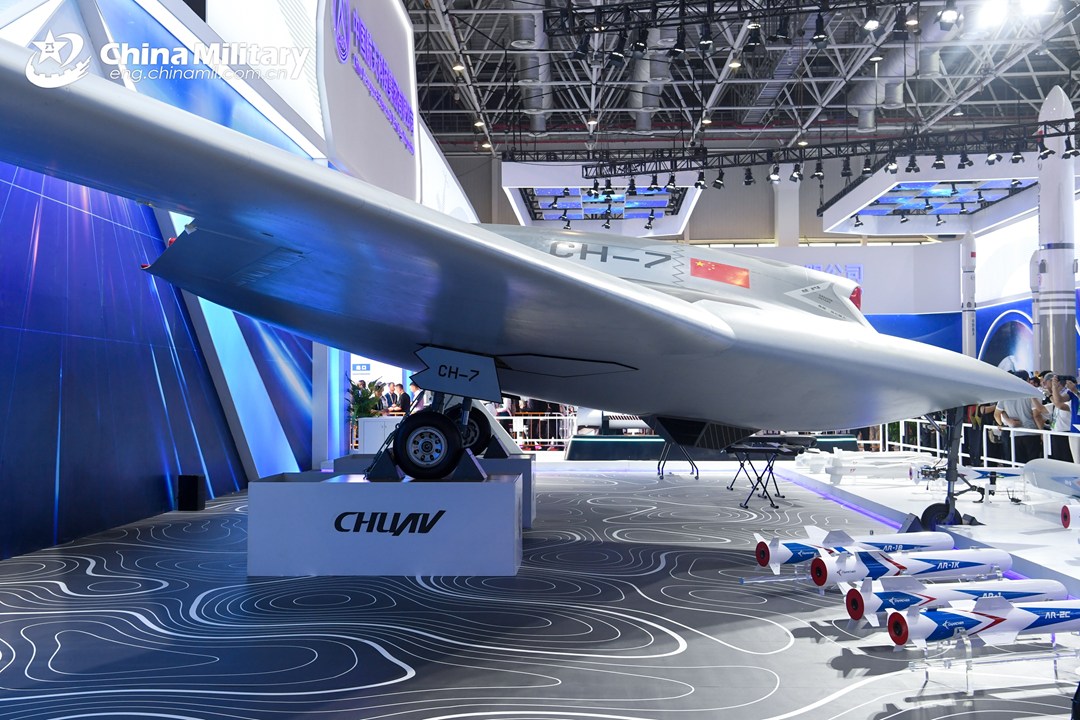

Note Despite claims by Aerospace CH UAV that the CH-7 will serve as a stealth-based ISR platform, the UAV was presented alongside air-launched weapons at Airshow China 2024. The weapons included air-to-ground missiles such as the TL-1C, TL-2, TL-2D, TL-2F, TL-2H, AR11, AR-2, AR-2C, AR-1B, AR-1K, AR-4, plus the AR-5 loitering missile, and precision-guided munitions such as the FT-7, FT-7A, FT-8B, FT-8C, FT-9 and FT-12. Air-launched effects (ALEs) were also displayed alongside the UAV, such as the CH-817A micro-attack UAV. The TY-14 airborne high-speed anti-radiation missile was also shown. It is unclear, however, if all the munitions displayed alongside the CH-7 will be integrated with the UAV.
Details
Country of Origin China
Category UAVs
Air > UAVs
Filter Label
C
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
10 m
Width
27.3 m
Height
Weight
8000 kg
Operators (2)
China
United States
