JYL-1 Chinese Long-Range 3D Surveillance Radar
JYL-1
Long-Range Air Defense Radar
Other
Basic Information
Name
JYL-1 Chinese Long-Range 3D Surveillance Radar
Designation
JYL-1
Alternate Designation
JYL-1
Equipment Type
Long-Range Air Defense Radar
Manufacturer
—
Date of Introduction
2010
Description

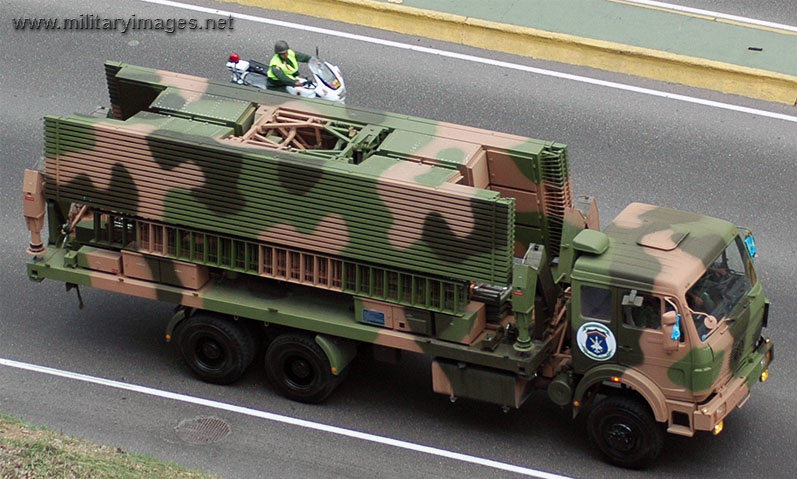

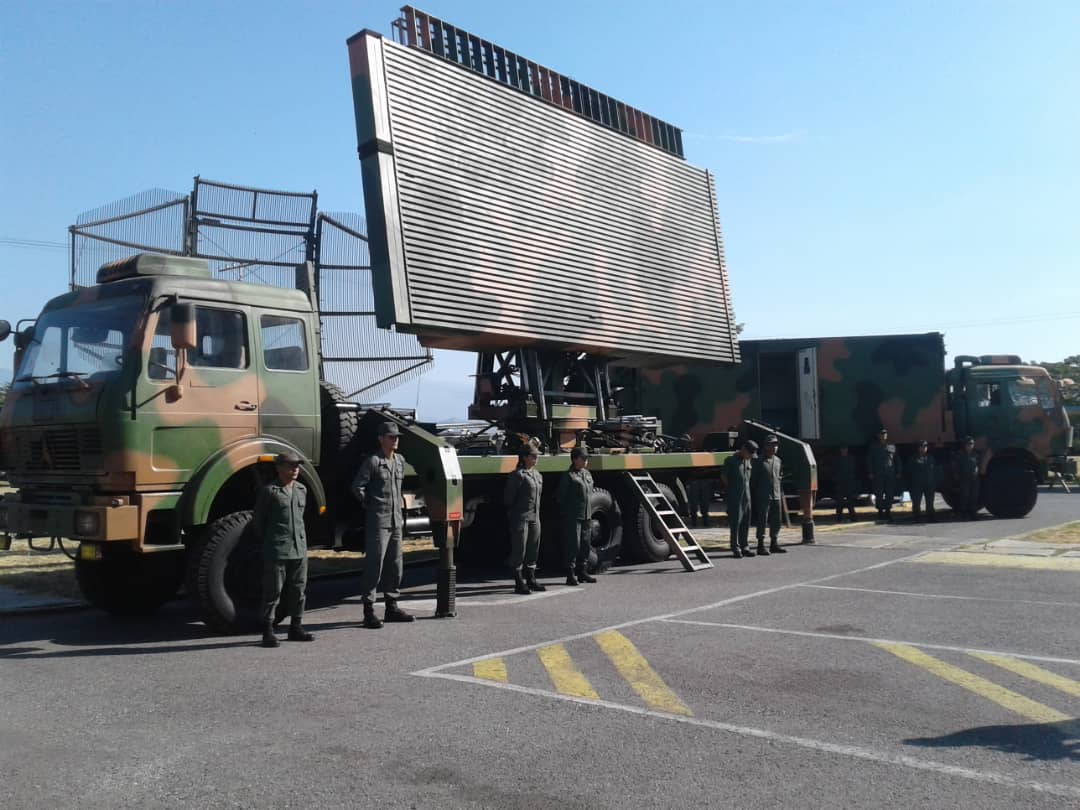

The JYL-1 radar is carried in the 2004 CRIA listing of Chinese indigenous products. The JYL-1 is a long-range 3D surveillance radar typical of those assets that might be found in a modern air defence network. It functions in the E/F-band region and might be used as either a military or commercial asset for air traffic control and management purposes.
Ground Specifications
Crew
8
Range
320.0 km
System
Alternative Designation
JYL-1
Type
Long-Range 3D Surveillance Radar
Crew
8 ea
Chassis
INA
Band
It functions in the E/F-band region and might be used as either a military or commercial asset for air traffic control and management purposes.
Azimuth Coverage
0º ~ 360º
Elevation Coverage
0º ~ 25º
Search Range
320km
Coverage Height
25,000m
Measurement Accuracy Range
100m
Measurement Accuracy Azimuth
0.3º
Measurement Accuracy Height
600m @ 200km
Resolution Range
200m
Resolution Azimuth
1.5º
Reliability MTBF
≥ 800hrs
Reliability MTTR
≤ 0.5 hrs
Displacement
Under 1 hour
Emplacement
Under 1 hour
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
INA
Details
Country of Origin
China
Category
Radars
Land > Radars
Filter Label
J
Classification
Domain
Ground
Equipment Status
Active
Operators (2)
China
Venezuela
