KrAZ MPV with IA (Shrek One IA) Ukrainian 4x4 Mine Resistant Ambush Protected (MRAP)
KrAZ MPV with IA (Shrek One IA)
Mine-Resistant Ambush Protected (MRAP)
Other
Basic Information
Name
KrAZ MPV with IA (Shrek One IA) Ukrainian 4x4 Mine Resistant Ambush Protected (MRAP)
Designation
KrAZ MPV with IA (Shrek One IA)
Alternate Designation
KrAZ MPV with IA (Shrek One IA)
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
It was developed by Streit Group of Canada in partnership with AutoKrAZ of Ukraine
Date of Introduction
2014
Description

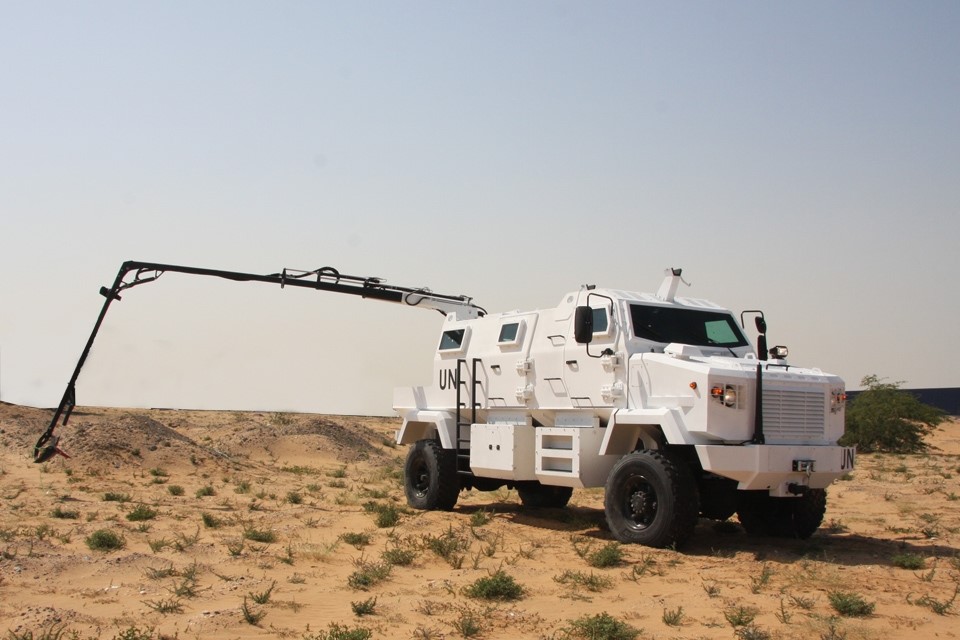

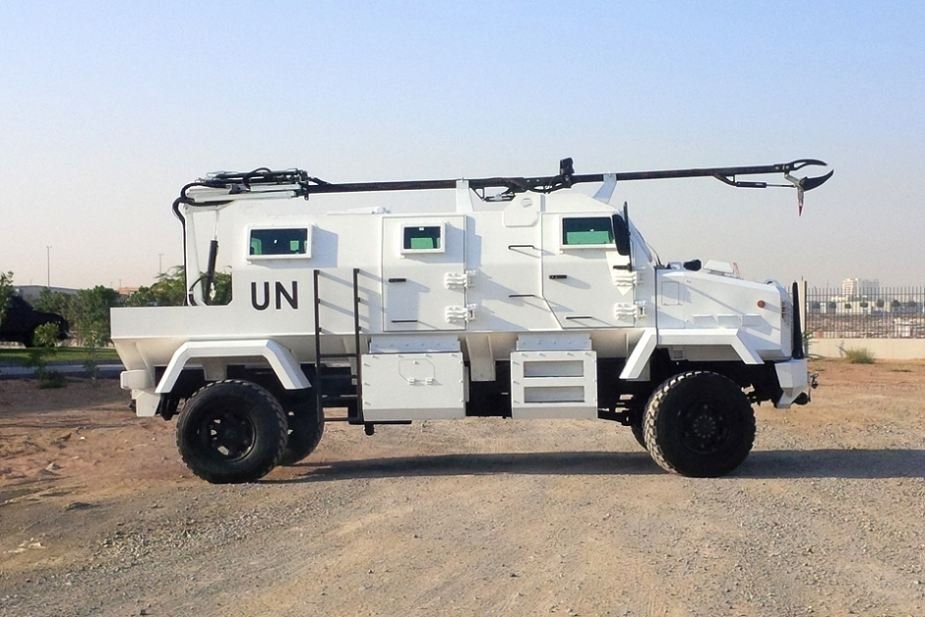

The KrAZ MPV with IA (Shrek One IA), a Ukrainian 4x4 Mine Resistant Ambush Protected (MRAP) with crane-manipulator for mine clearance, is intended for operation in explosion-hazardous areas.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Engine
Diesel (330 hp)
NBC Protection
Yes
Max Speed
80.0 km/h
Range
1000.0 km
Variants
KrAZ MPV Ambulance
A armored ambulance.
KrAZ MPV with IA
A specialized route clearance vehicle.
Feona
A 6x6 mine resistant ambush protected vehicle.
System
Alternative Designation
KrAZ MPV with IA (Shrek One IA)
Type
Mine Resistant Ambush Protected (MRAP) with Crane-manipulator arm
Manufacturer
It was developed by Streit Group of Canada in partnership with AutoKrAZ of Ukraine.
Configuration
4x4
Crew
2 ea
Passengers
10 ea

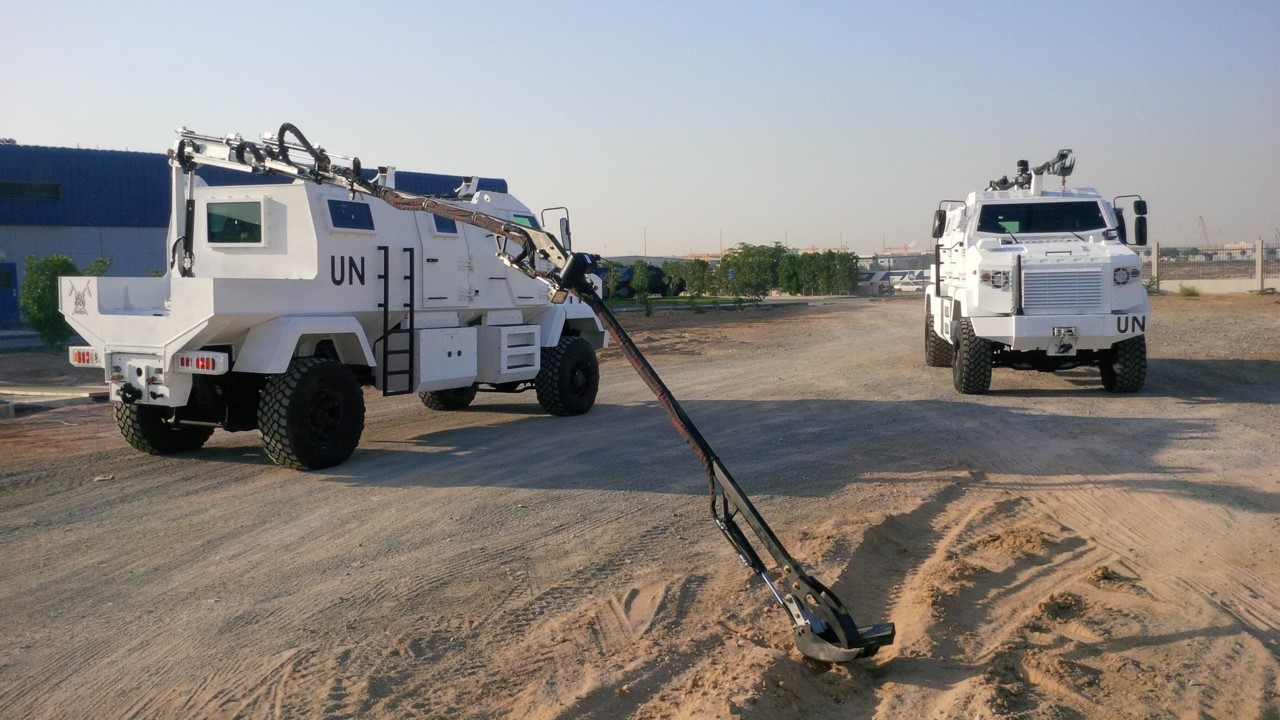

Crane-Manipulator
Crane0manipulator for Mine Clearance, with Grasping Rake and CCTV system; External articulated manipulator with remote console.
Reach 9 m. Lifting capacity at maximum reach: 250 kg. Manipulator operating angle: 325°
Options
2 outside spare wheels; Heavy-duty air-conditioning system for tropical countries; Winch; VHF and HF radio system; 2 x 12 V power connectors in front of the vehicle and 4 x 12 V power connectors at the rear may be used for telephone, GPS and other devices power supply fitted with standard 12 V power adapters; AC-to-DC inverter 220 V to supply power for 4 computers / telephones or similar devices. Sockets are at the rear
Drawbar hitch is mounted in front and rear parts according to NATO standard.
Dimensions
Length
7.99 m
Width
3.15 m
Height
3.08 m
Weight, Combat
16 tons
Automotive
Engine Name
YaMZ-238D
Engine Type
Diesel
Engine Power
330 hp
Maximum Range
1,000 km
Maximum Speed
80 km/h
Amphibious
No
Gradient
60%
Side Slope
30%
Vertical Step
0.5 m
Trench
0.5 m
Fording
1.5 m
Main Weapon System
Note
The Vehicle can be fitted with remotely controlled weapon module. Typically these modules are armed with 7.62 mm or 12.7 mm machine guns or 40 mm automatic grenade launchers.
Protection
Ballistic Protection
B6+/STANAG 4569 Level 2.
Window Glass
Transparent multi-layer bulletproof glass. Polycarbonate inner layer
Underbelly mine protection
2 x TM57 landmines (14kg TNT) under any wheel
1 x TM 57 landmine (7kg TNT) directly under bottom
Underbelly design
V-shaped
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
No
Details
Country of Origin
Ukraine
Category
Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.99 m
Width
3.15 m
Height
3.08 m
Weight
16000 kg
Operators (2)
Ukraine
Canada
