White Tiger
White Tiger
Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.

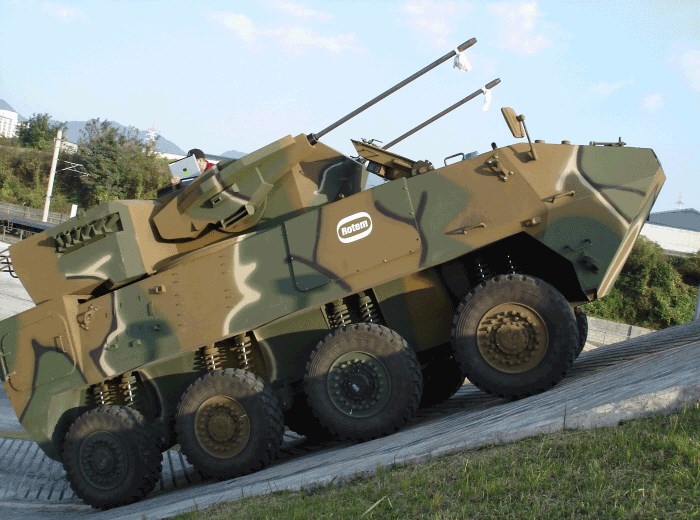

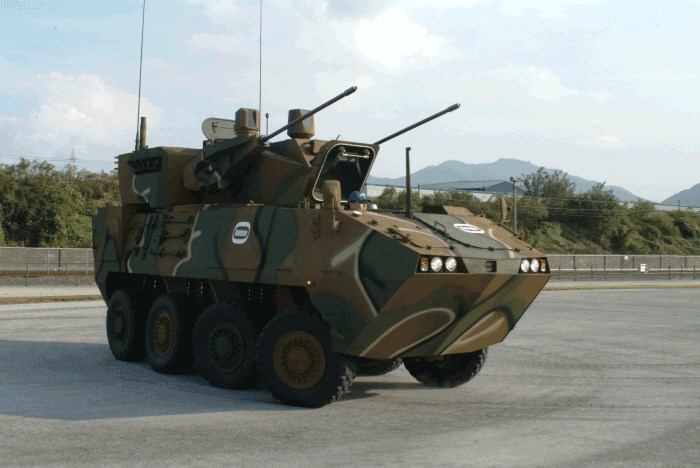

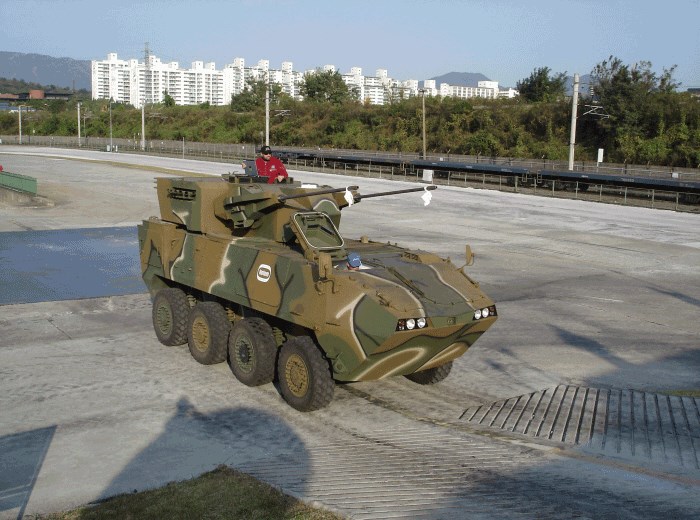

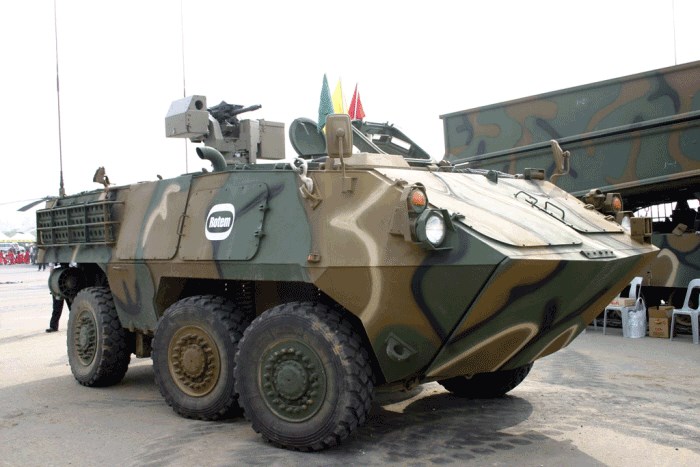

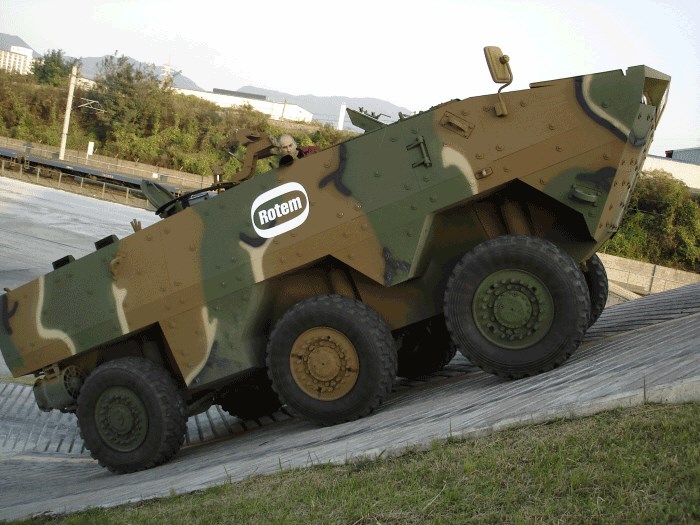

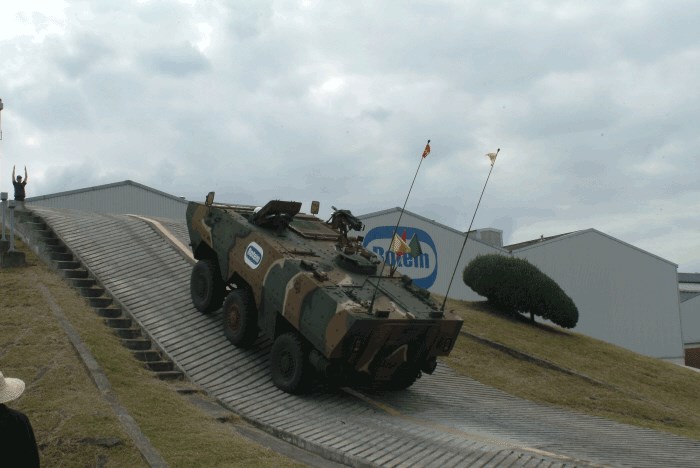

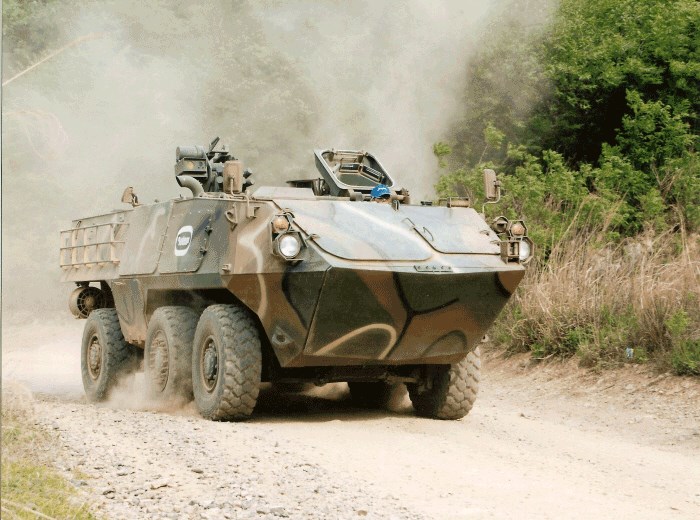

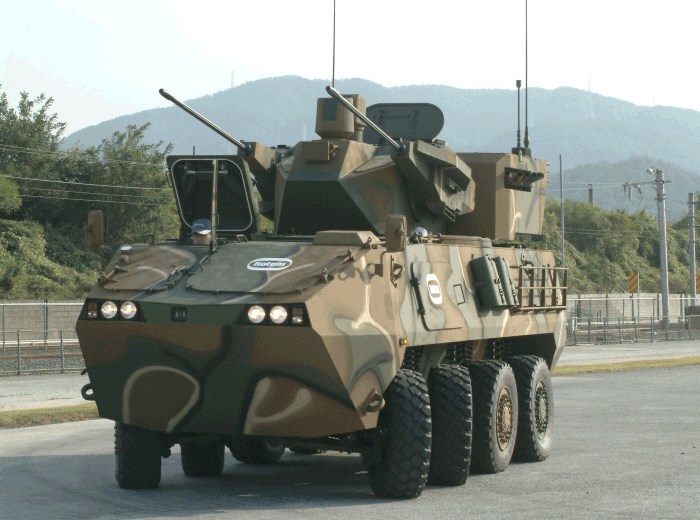

Operational Photo
Basic Information
Name
White Tiger
Designation
White Tiger
Alternate Designation
—
Equipment Type
Wheeled Armored Vehicles
Manufacturer
Hyundai Rotem
Date of Introduction
—
Description
The Hyundai Rotem Wheeled Armored Vehicle (WAV) is a family of all terrain, high mobility, modular 6x6 and 8x8 armored vehicles intended to perform a wide variety of missions in support of military rapid deployment and security forces. The Samsung TechWin MPV, Doosan DST Black Fox and Hyundai Rotem KW Scorpion multi-purpose wheeled armored vehicles have been designed to meet the requirements of the Republic of Korea Army (RoKA) and South Korean security forces. A RoKA decision on its new rapid deployment armored vehicle is expected before 2012.
Ground Specifications
Crew
2
Mobility Type
Wheeled (6x6)
Main Weapon
7.6 millimeter
Max Speed
110.0 km/h
Range
800.0 km
Overview (Deagel)
Group
Wheeled Armored Vehicles
Status
Active
Also Known As
KW1 Scorpion
Origin
South Korea
Contractor
Hyundai Rotem
Initial Operational Capability (IOC)
2018
Total Production
?
Specifications (Deagel)
Crew
2
Troops
9
Wheel Drive
6
Wheels
6
Dimensions — Grenade Launcher Caliber
40 millimeter
Dimensions — Height
2.9 meter
Dimensions — Length
6.8 meter
Dimensions — Main Gun Caliber
7.6 millimeter
Dimensions — Width
2.7 meter
Mass — Combat Weight
16 ton

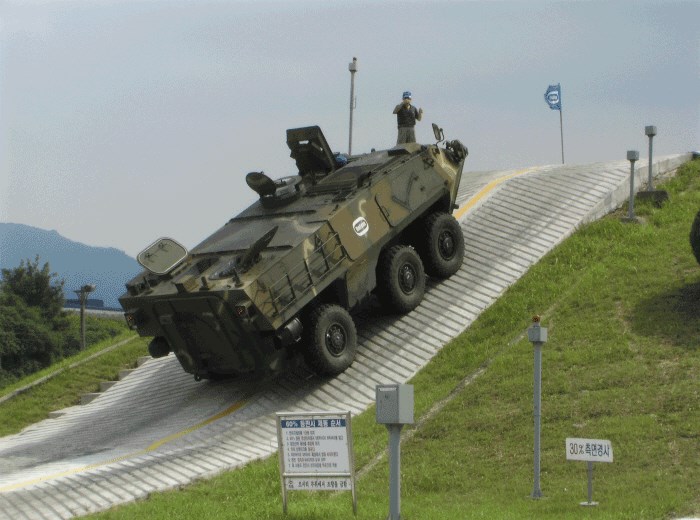

Percentage — Gradient
60 %
Percentage — Side Slope
30 %
Performance — Ditch Crossing Ability
1.5 meter
Performance — Max Range
800 kilometer
Performance — Step Climbing Ability
0.50 meter
Performance — Turning Radius
9 meter
Power — Power
420 hp
Speed — Top Speed
110 kph
Speed — Top Swimming Speed
10 kph
Variants
Variant 1
K806
Variant 2
K808
Details
Country of Origin
South Korea
Sources
deagel.com: https://www.deagel.com/x/x/a002459
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.8 m
Width
2.7 m
Height
2.9 m
Weight
16000 kg
Related Equipment (2)
Variant
Operators (1)
South Korea
