PARS IV 6x6 Turkish Special Operations Vehicle

PARS IV 6x6

Special Operations Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
PARS IV 6x6 Turkish Special Operations Vehicle
Designation
PARS IV 6x6
Alternate Designation
PARS IV 6x6
Equipment Type
Special Operations Vehicle
Manufacturer
FNSS
Date of Introduction
2020
Description

The PARS IV 6x6 Turkish Special Operations Vehicle is designed to meet the tactical and operational requirements of military and internal security forces whose mission is special. It is capable of operating in a wide range of terrains and climate types, and is optimized for various operational requirements. It is highly versatile, reflecting the broad spectrum of potential missions and areas of operation. The PARS IV 6x6 S-Ops Vehicle operates in all weather and all terrain conditions, day and night, including cross-country and urban areas. The vehicle has been specifically designed to transport special operations units to their mission objectives, where multiple threats may be present, and to provide fire support to the special operations teams in the field. All team members enjoy a high level of electro-optic situational awareness. The vehicle's special design provides the driver and personnel located in the front section of the vehicle with maximum direct view situational awareness of over 180°. The new generation electronic infrastructure provides 360° situational awareness for all team members. Owing to these features, the vehicle can be easily operated under armor at all times, with hatches closed. The vehicle’s weapon system is designed to engage multiple targets simultaneously from all directions, including high ground. Two remotely controlled turrets are located at the front and rear of the vehicle. The turrets are fitted with a universal weapon mount, which enables them to carry 7.62 mm, 12.7 mm machine guns, or 40 mm automatic grenade launchers. These can be easily changed depending on mission requirements. Two-axis stabilisation allows firing on the move, and the high maximum elevation of the guns enables engaging targets on high ground (such as building tops, cliffs, etc.) and/or low-altitude aerial targets. The PARS IV 6x6 S-Ops Vehicle offers an unmatched combination of the survivability of an MRAP and the tactical mobility of a wheeled armored combat vehicle. The vehicle’s high level of ballistic, mine, and IED protection, along with the RPG net, is designed to protect the crew and the powerpack against unconventional threats where the timing and intensity of the threat cannot be estimated. The high-performance powerpack and ride-height-adjustable independent, hydropneumatic suspension system provides unmatched tactical mobility to overcome difficult terrain and road conditions, while also enhancing drive safety and comfort for the crew. Front and rear axle steering provide a turning radius narrower than that of a 4x4 vehicle. This unique feature enables rapid maneuvering capability in narrow spaces, especially in low-income urban areas with limited infrastructure. The vehicle is equipped with new-generation mission equipment that ensures combat effectiveness, safer route planning, command/control, and rapid targeting.

Ground Specifications
Mobility Type Wheeled (6x6)
Main Weapon 7.62 mm, 12.7 mm machine guns, or 40 mm automatic grenade launchers
Engine Diesel
Max Speed 100.0 km/h
Range 700.0 km

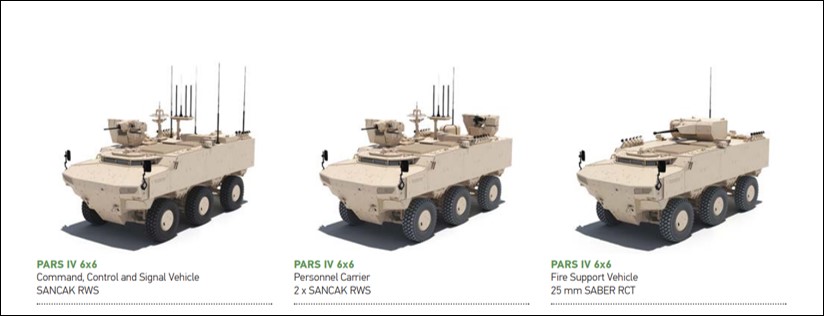

Variants
PARS IV 6X6 Command, Control and Signal Vehicle SANCAK RWS
PARS IV 6X6 Personnel Carrier 2 x SANCAK RWS
PARS IV 6X6 Fire Support Vehicle 25 mm SABER RCT
System
Alternative Designation PARS IV 6x6
Type Special Operations Vehicle
Manufacturer FNSS
Configuration 6x6
Crew INA
Air Transportation A400M, C-5, C-17, IL-76 and AN-124
Dimensions
Length 7.0 m
Width 3.0 m
Height 2.45 m
Weight, Combat 25 tons
Automotive
Engine Name INA
Engine Type Diesel
Engine Power INA
Transmission Fully Automatic, 7 Forward - 2 Reverse
Maximum Road Speed 100 km/h
Creep Speed 4 km/h
Range 700 km
Gradient 60%
Side Slope 30%
Angle of Approach 50°
Angle of Departure 40°
Vertical Obstacle 0.6 m
Trench Crossing 1.5 m
Turning Radius 7.0 m
Fording Depth 1.5 m
Suspension System Independent, Double Wishbone, Hydro- Pneumatic Suspension with Ride Height Control
Number of Axles 3 ea
Driven Axles All Wheel Drive
Steered Axles 1 & 3
Transfer Case Single Speed
Service Brakes Pneumatic and ABS at Each Wheel
Parking Brakes Integral to Driveline, Spring Activated, Hydraulically Controlled
Main Weapon System
Turret Type SANCAK RWS • Two Independent and Simultaneously Controlled Turrets Front and Rear • Stabilised and Day/Night • Ballistic Protected • Universal Mount • 12.7 mm MG • 7.62 mm MG • 40 mm AGL
Optional Turret and Ammunition SABER RCT (25 mm) Fixed Wing Loitering Munition System
Protection
Ballistic Protection STANAG 4569 (Level Classified)
Mine Protection STANAG 4569 (Level Classified)
IED Protection STANAG 4569 (Level Classified)
Laser Warning System Optional
Gunshot Detection System Standard
Smoke Grenade Dischargers 12 ea
Automatic Fire Suppression System Standard
CBRN Protection System Standard
A/C and Heater Standard
Details
Country of Origin Turkey
Category Land
Land
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7 m
Width
3 m
Height
2.45 m
Weight
25000 kg
Operators (1)
Turkey
