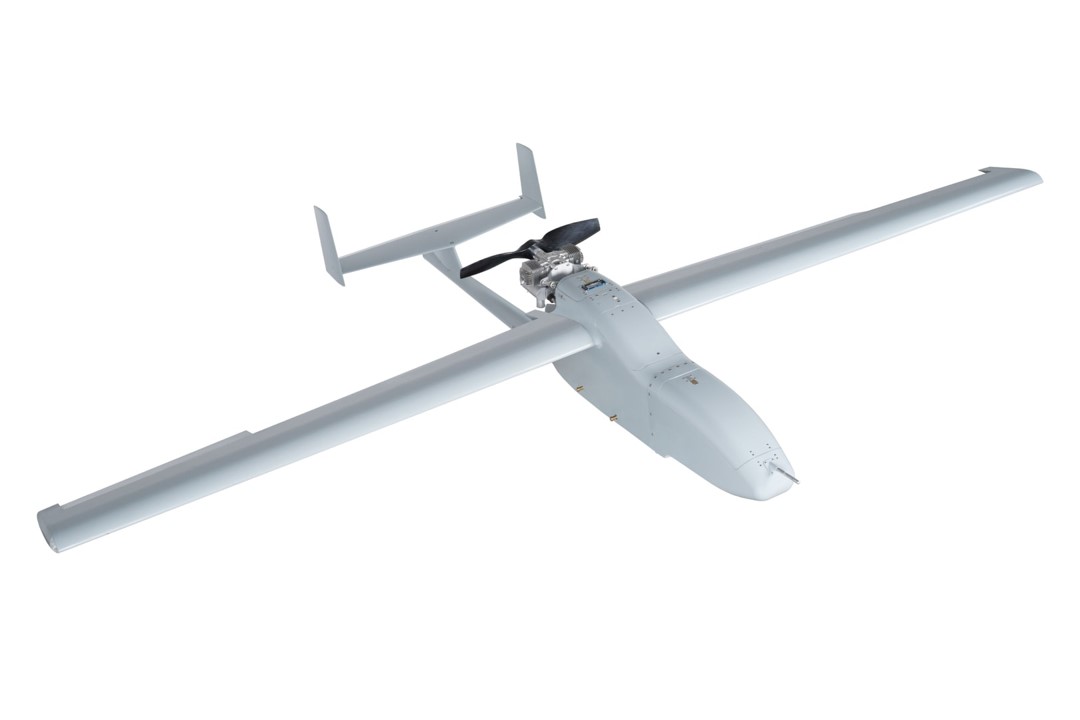

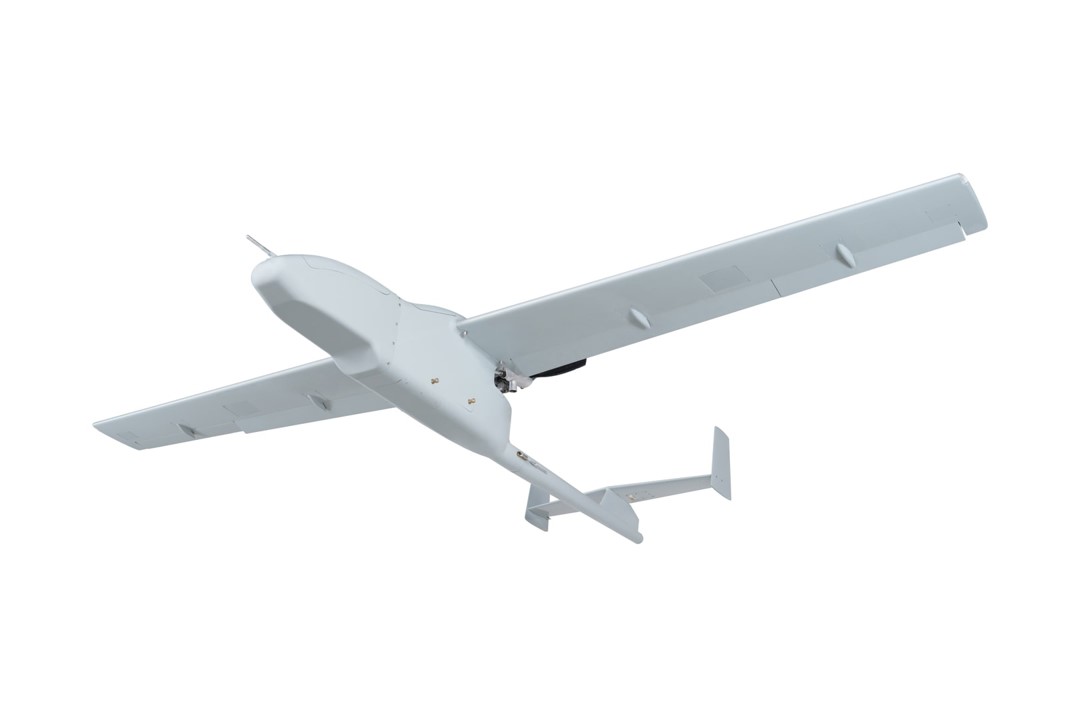

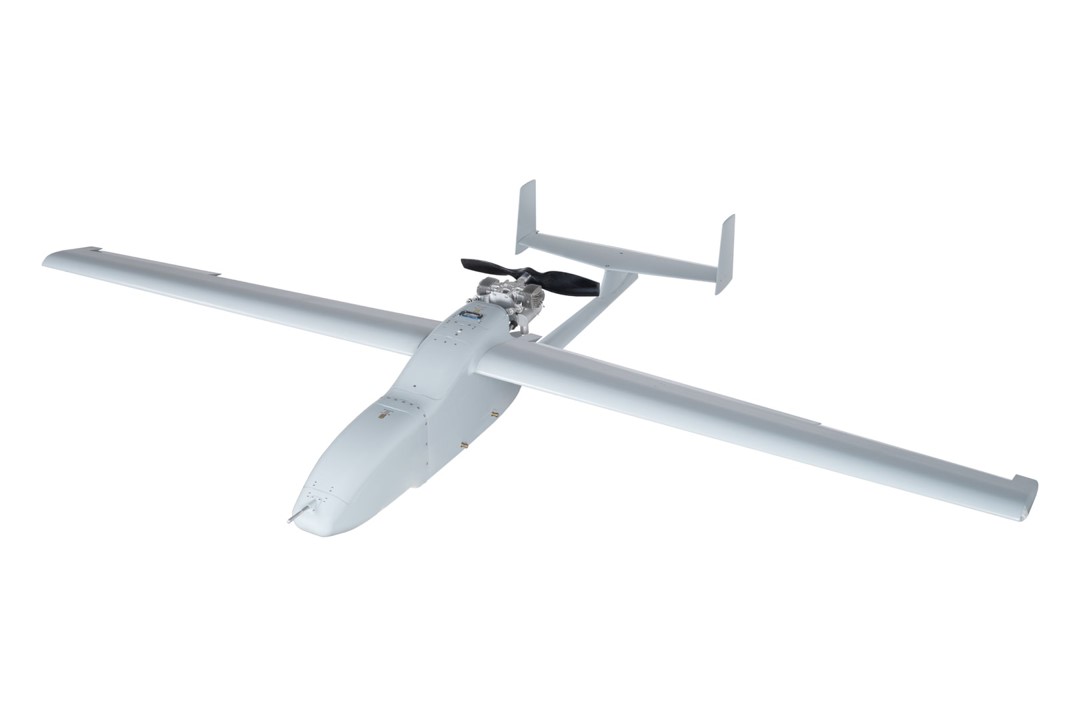

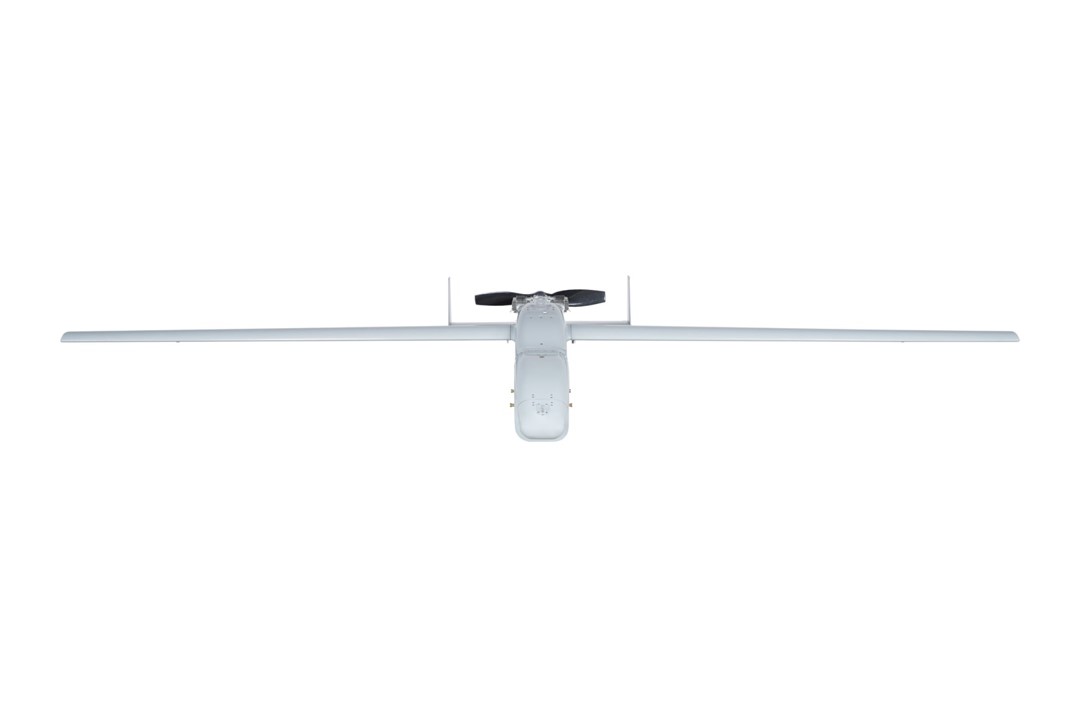

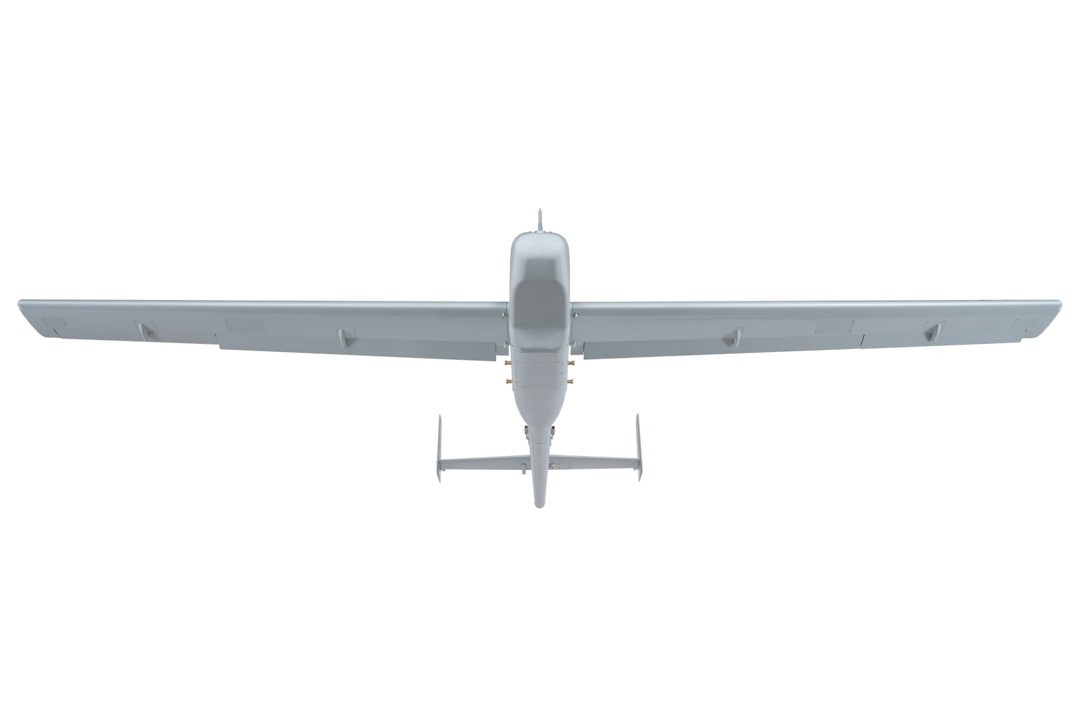

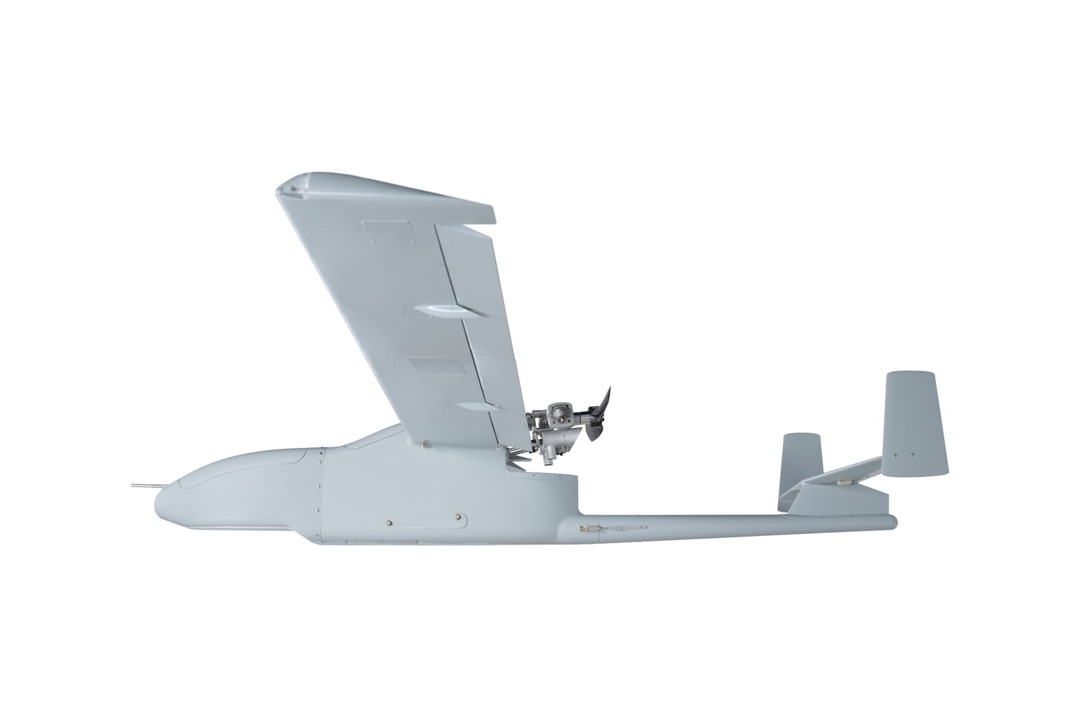

KUB-10E Russian Unmanned Aerial Vehicle (UAV)

KUB-10E

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
KUB-10E Russian Unmanned Aerial Vehicle (UAV)
Designation
KUB-10E
Alternate Designation
KUB-10E
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Kalashnikov Concern
Date of Introduction
2024
Description

The KUB-10E Russian Unmanned Aerial Vehicle (UAV) is designed to destroy objects, as follows: Enemy unarmoured combat equipment; command posts of divisions, battalions; control posts of platoons (fire sections), batteries, air defence missile system (ADMS) divisions, including vehicles with electronic systems and body-armoured manpower; objects of air defence (AD) and antiballistic missile (ABM) defence, electronic reconnaissance and electronic warfare (AD ADMS radars, counterbattery radars, ground moving target reconnaissance radars); sustainment objects; sustainment units of battalions, companies and platoons; field ammunition and fuel depots; launch sites for enemy unmanned aerial vehicle (UAV) systems; unsheltered aircraft (helicopters) at base airfields (sites); Armoured personnel carriers.

Air & Air Defense Specifications
Engine Battery
Max Speed 100.0 km/h
Cruise Speed 100.0 km/h
Range 90.0 km
Service Ceiling 2500 m
Wingspan 950.00 m
System
Alternate Designation KUB-10E
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Kalashnikov Concern JSC
Combat Crew 3 ea
Warhead Blast/fragmentation
Warhead Weight 11 kg
Aiming System Strike on predetermined GNSS coordinates
Launching Method Catapult
Dimensions
Length 1,210 mm
Height 165 mm
Wingspan 950 mm
Maximum Takeoff Weight 8 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Maximum Speed INA
Cruise Speed 100 km/h
Maximum Range 90 km
Service Ceiling 2,500 m
Endurance INA
Details
Country of Origin Russia
Category UAVs
Air > UAVs
Filter Label
K
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.21 m
Width
0.95 m
Height
0.17 m
Weight
8 kg
Operators (1)
Russia
