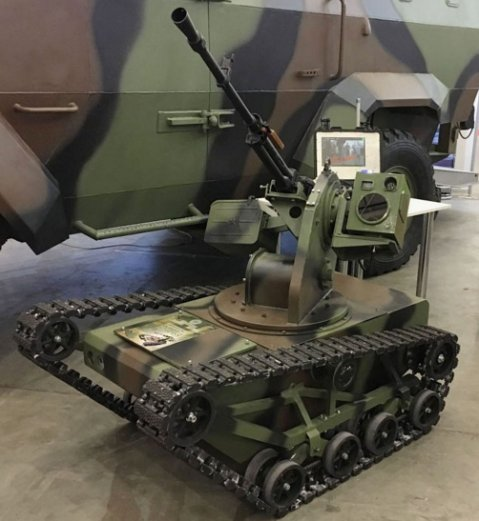

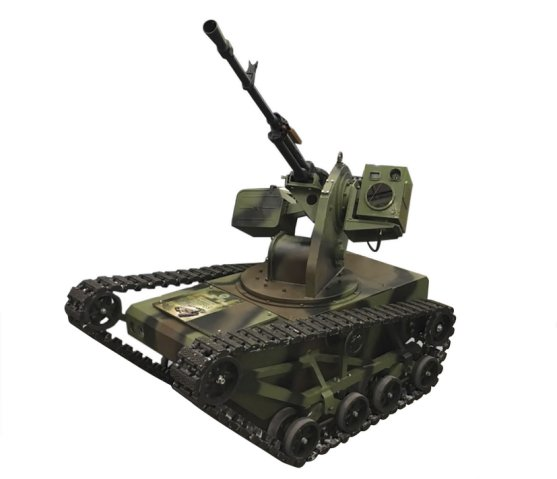

Piranha Ukrainian Tracked Unmanned Ground Vehicles (UGV)
Piranha
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Piranha Ukrainian Tracked Unmanned Ground Vehicles (UGV)
Designation
Piranha
Alternate Designation
Piranha
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Ukroboronprom
Date of Introduction
2017
Description
The Piranha Ukrainian Tracked Unmanned Ground Vehicles (UGV) is designed for combat use but can also fulfil other roles.
Ground Specifications
Engine
Battery
Max Speed
25.0 km/h
System
Alternative Designation
Piranha
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Ukroboronprom
Configuration
Tracked
Crew
Unmanned
Operator
The vehicle is controlled by an operator control unit that has a daylight readable display.
Sensors
The Piranha will be fitted with an Intelligence, Surveillance, and Reconnaissance (ISR) payload, which will include the Anti-Sniper. The Anti-Sniper is a sensor system designed for surveillance tasks and for countering snipers.
Software
A number of autonomous capabilities are available, such as return to base (especially in loss of communication with the operator), follow me, and waypoint navigation.
Dimensions
Length
1.5 m
Width
0.98 m
Height
0.50 m
Wheelbase
100 mm
Weight, Combat
100 kg
Ground Clearance
190 mm
Automotive
Engine Name
INA
Engine Type
Battery
Engine Power
INA
Amphibious
No
Maximum Speed
25 km/h
Operating Distance
20 km power reserve
Maximum Gradient
30°
Side Slope
25°
Endurance
INA
Communications
Note
The Piranha can operate via a secure radio link or fibre cable.
Main Weapon System
Note
In its combat configuration, the platform has been fitted with a stabilized rotating platform to mount various weapon types. This includes a 12.7 mm heavy machine gun (MG) NVST, which is capable of firing at distances of 1 km and can traverse 360°. A 7.62 mm PKT or 40 mm grenade launcher UAG-40, which has a range of between 2 and 10 km, can also be incorporated.
Protection
Armor
INA
Applique Armor
INA
Details
Country of Origin
Ukraine
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.5 m
Width
0.98 m
Height
0.5 m
Weight
100 kg
Operators (1)
Ukraine
