MV3 Chinese 6x6 General Utility Truck

FAW MV3

Heavy Utility Truck
Spotted an error? Sign in to suggest an edit.
MV3 Chinese 6x6 General Utility Truck
Other

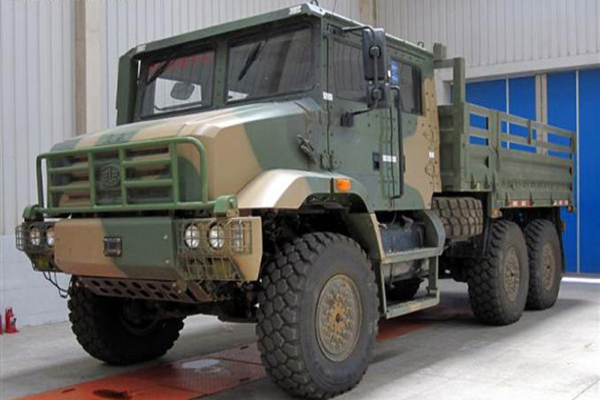

FAW_MV3_Chinese_6x6_(A).pngTRADOC ODIN WEG
Thumbnail
Thumbnail
Basic Information
Name
MV3 Chinese 6x6 General Utility Truck
Designation
FAW MV3
Alternate Designation
FAW MV3
Equipment Type
Heavy Utility Truck
Manufacturer
First Automobile Works (FAW)
Date of Introduction
2011
Description

The MV3 Chinese 6x6 General Utility Truck was developed by First Automobile Works (FAW) to meet a Chinese army requirement for a general utility truck with a payload capacity of up to 10 tons. The MV3 will be the next generation universal transport/cargo truck, replacing Dongfeng EQ240/EQ2081 and Dongfeng EQ245/EQ2100.

Ground Specifications
Crew 1
Engine Diesel (350 hp)
Range 1000.0 km
Variants
CTM-131 Chinese military designation. 6x6 configuration with double cab. 5 ton payload capacity.
CTM-132 Chinese military designation. 6x6 configuration with single cab. 5 ton payload capacity.
CTM-133 Chinese military designation. 4x4 configuration with double cab. 3.5 ton payload capacity.
CTM-134 Chinese military designation. 4x4 configuration with single cab. 3.5 ton payload capacity.
PCL-161 122 mm truck-mounted howitzer (self-propelled howitzer, SPH) capable of rapid deployment, based on CTM-133 chassis.
SR-7 Modular multiple launch rocket system based on CTM-133 chassis.
AFT-10 Carrier Two HJ-10 missiles and electro-optical sensor fitted on CTM-133 chassis
System
Alternative Designation FAW MV3
Type General Utility Truck
Manufacturer First Automobile Works (FAW)
Configuration 6x6
Crew 1
Cab Seating 1 + 1
Maximum Cargo Capacity 10 tons
Dimensions
Length INA
Width INA
Height INA
Weight, Empty 10 tons
Automotive
Engine Name INA
Engine Type Diesel
Engine Power 350 hp
Range 1,000 km
Speed, Maximum Road 90 km/h
Speed Maximum Swim Not Amphibious
Gradient 60 %
Side Slope 40 %
Vertical Step 0.5 m
Trench 0.6 m
Fording Depth 1.2 m
Main Weapon System
Note There are no crew-served weapons mounted on the FAW MV3 Chinese 6x6 General Utility Truck.
Protection
Armor INA
Applique Armor Available
Mine Clearing No
NBC Protection No
Smoke Equipment No
Image Sources
Notes https://www.nairaland.com/3220297/technical-discussions-international-military-equipments/78; https://www.pinterest.com/pin/faw--502081058432476694/;
Details
Country of Origin China
Category Logistics
Land > Combat Support Vehicles > Logistics
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
10000 kg
Operators (1)
China
