MAC-TI Ukrainian 4x4 Armored Personnel Carrier (APC)
MAC-TI
Amphibious Armored Personnel Carrier (APC)
Other
Basic Information
Name
MAC-TI Ukrainian 4x4 Armored Personnel Carrier (APC)
Designation
MAC-TI
Alternate Designation
MAC-TI
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Military Industrial Company (VPK)
Date of Introduction
2025
Description
The MAC-TI Ukrainian 4x4 Armored Personnel Carrier (APC) Is a multi-purpose armored vehicle (APV) designed for intelligence, patrol, peacekeeping, and transportation of personnel in hostile environments.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Main Weapon
heavy machine gun
Engine
4.5L V8 - Diesel (195 hp)
NBC Protection
Yes
Max Speed
80.0 km/h
Range
500.0 km
System
Alternative Designation
MAC-TI
Type
Armored Personnel Carrier (APC)
Manufacturer
VPK MAC
Configuration
4x4
Crew
2 ea
Passengers
6 ea
Dimensions
Length
5,280 mm
Width
1,890 mm
Height
with a tower of 2,854 mm; without tower 2,295 mm
Wheelbase
3,180 mm
Weight, Empty
4,820 kg (with tower)
Automotive
Engine Name
1VD-FTV (EGR)
Engine Type
4.5L V8 – Diesel
Engine Power
195 hp at 3300 rpm
Engine Torque
430 Nm (43.8 kg-m) at 1200-3200 rpm
Fuel Capacity
180 (90+90) liters (double tanks)
Maximum Range
500 km
Maximum Speed
80 km/h
Amphibious
No
Ground Clearance
225 mm
Front Overhang Angle
32 deg
Rear Overhang Angle
24 deg
Main Weapon System
Note

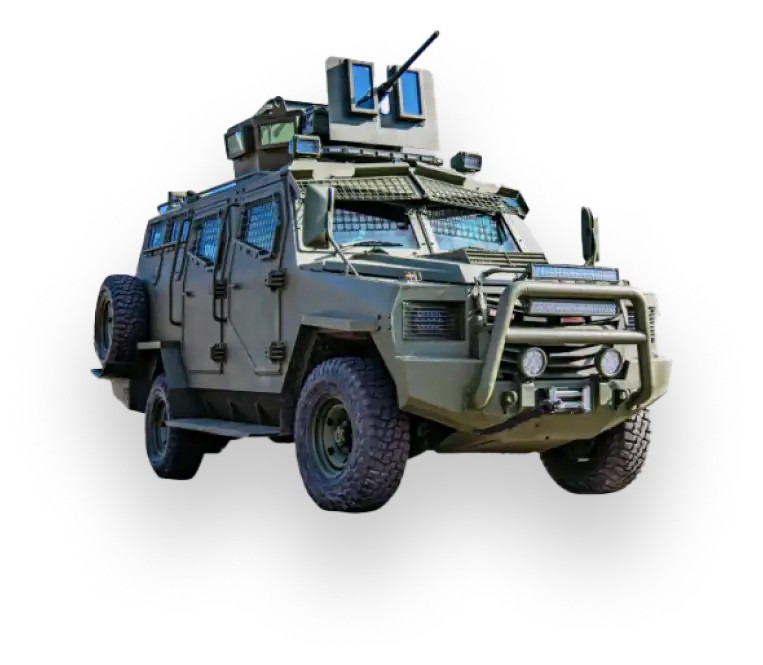

The MAC-TI 4x4 Armored Personnel Carrier (APC) is equipped with a roof-mounted machine gun turret that features 360-degree rotation. The turret, which is mechanically operated, typically carries a heavy machine gun.
Protection
Armor
The MAC-TI's B7 certification means it's built tough against a few serious threats:
- **Ammunition**: It can handle armor-piercing incendiary bullets up to 7.62mm.
- **Explosives**: It can take a hit from blasts up to 6 kg of TNT.
- **Hull Design**: The vehicle has a V-shaped hull designed to redirect blast waves from mines and IEDs away from where people are sitting inside.
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
Yes
Image Sources
Details
Country of Origin
Ukraine
Category
Land
Land
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.28 m
Width
1.89 m
Height
2.85 m
Weight
4820 kg
Operators (1)
Ukraine
