Shaheen 1 (Hatf 4)
Short-Range Ballistic Missile (SRBM)

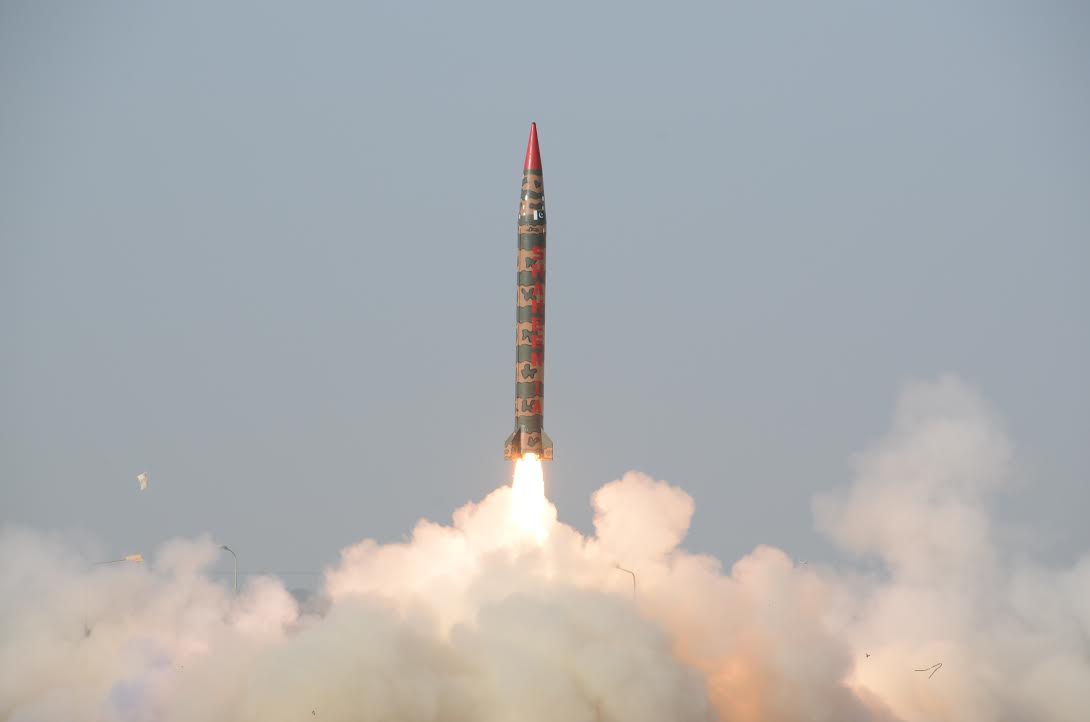

Operational Photo
Basic Information
Name
Shaheen 1 (Hatf 4)
Designation
—
Alternate Designation
—
Equipment Type
Short-Range Ballistic Missile (SRBM)
Manufacturer
—
Date of Introduction
2003
Description
The Shaheen 1 (Hatf 4) is a Pakistani-Chinese short-range ballistic missile. It can launch a payload of 700 – 1,000 kg to ranges of up to 700 km, and its extended-range variant, the Shaheen 1A, ranges up to 900 km. The missile was developed with Chinese technical assistance, and analysts suggest its design may derive from China’s DF-15 system.1
Air & Air Defense Specifications
Range
750.0 km
Quick Facts (CSIS)
Class
Short-Range Ballistic Missile (SRBM)
Basing

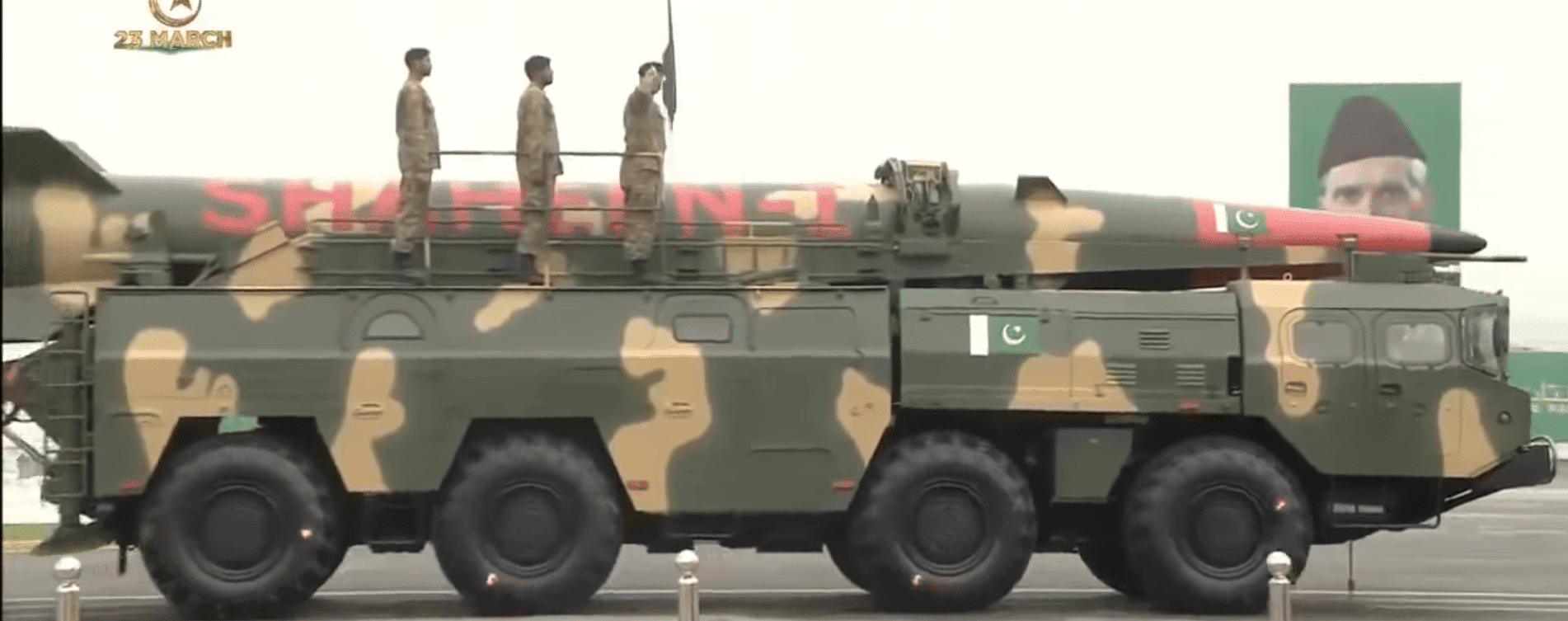

Road-mobile
Range
750 km, 900 km (1A variant)
Payload
700 – 1,000 kg
Length
12.0 m
Diameter
1.0 m
LaunchWeight
9,500 kg
Warhead
35 kT nuclear, HE, submunitions, chemical
Status
Operational
InService
2003 – Present
Details
Category
Short-Range Ballistic Missiles (SRBM) (301 km - 1,000 km)
Air > Short-Range Ballistic Missiles (SRBM) (301 km - 1,000 km)
Sources
CSIS Missile Threat: https://missilethreat.csis.org/missile/hatf-4/
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
12 m
Width
1 m
Height
—
Weight
9500 kg
