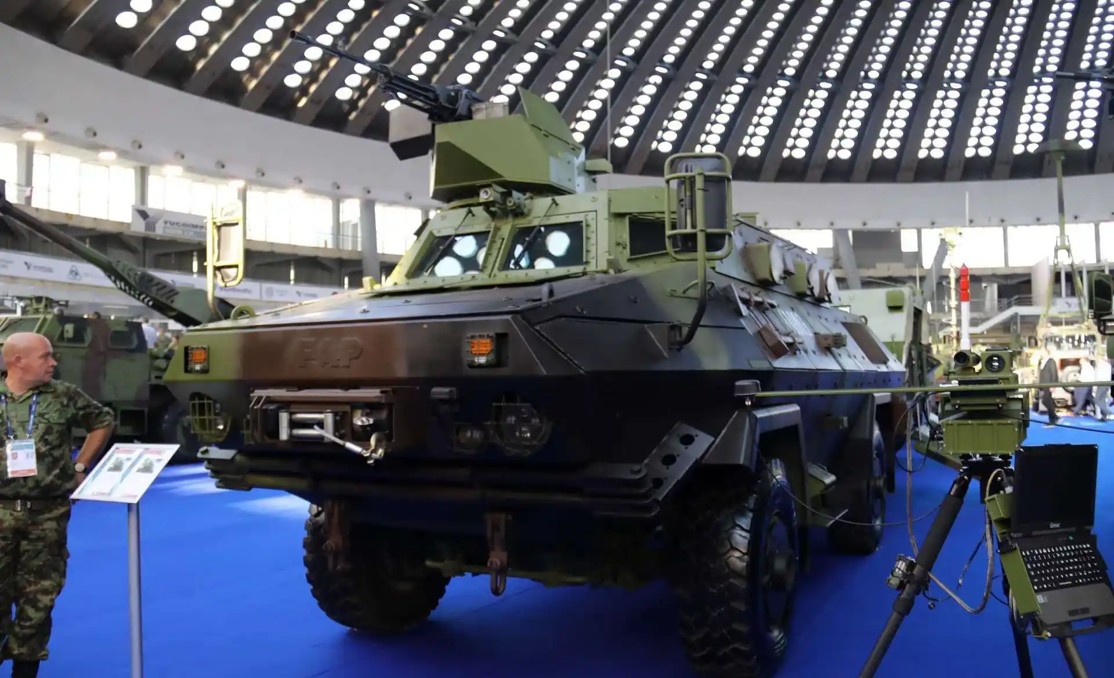

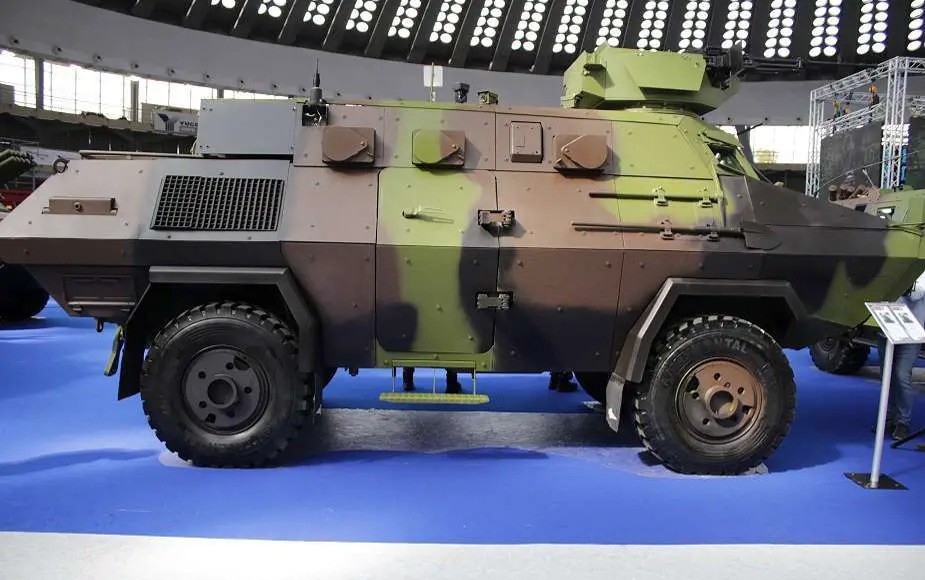

OT 4x4 Serbian Armored Personnel Carrier (APC)

OT 4x4

Amphibious Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
OT 4x4 Serbian Armored Personnel Carrier (APC)
Designation
OT 4x4
Alternate Designation
OT 4x4
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Yugoimport
Date of Introduction
2023
Description

The OT 4x4 Serbian Armored Personnel Carrier (APC) serves as a versatile solution for both internal security tasks and high-intensity support missions. Its compact design allows it to navigate narrow village streets where larger 8x8 vehicles may struggle, while also providing the necessary clearance and traction to traverse forest paths and muddy routes common in the Balkans. With its combination of long endurance and moderate top speed, battalion commanders can efficiently deploy forces for border security, peace support patrols, and quick reaction tasks with minimal refueling needs. As Serbia works to rebuild its land forces, it emphasizes disciplined procurement budgets and maintains options for export. Many potential buyers in Africa, the Middle East, and parts of Asia are looking for vehicles that offer survivable mobility without the high costs and maintenance demands associated with larger MRAPs. By utilizing globally supported engines and transmissions, along with a proven turret design, the OT 4x4 presents a credible and affordable solution that can be quickly deployed and upgraded as mission requirements evolve.

Ground Specifications
Crew 2
Mobility Type Wheeled (4x4)
Main Weapon 12.7 mm heavy machine gun
Engine Diesel (285 hp)
NBC Protection Yes
Max Speed 110.0 km/h
Range 1100.0 km
System
Alternative Designation OT 4x4
Type Armored Personnel Carrier (APC)
Manufacturer Yugoimport SDPR
Configuration 4x4
Crew 2 ea
Passengers 9 ea
Payload Capacity 1,500 kg
Dimensions
Length 6,700 mm
Width 2,600 mm
Height 2,500 mm
Weight, Combat 14,000 kg
Automotive
Engine Name Cummins ISB
Engine Type 6.7 diesel
Engine Power 285 hp
Maximum Range 1,100 km
Maximum Speed 110 km/h
Amphibious No
Ground Clearance 360 mm
Gradient 60%
Side Slope 45%
Fording 1.5 m
Main Weapon System
Note The 12.7 mm heavy machine gun mounted in the low-profile turret provides superior firepower against light vehicles, field fortifications, and low-flying aircraft at effective ranges for a heavy caliber weapon. Six lateral loopholes allow the embarked squad to deliver suppressive fire without dismounting, which is particularly useful for convoy escorts and checkpoint defense. The roof configuration can accommodate alternative weapons, such as a 7.62 mm machine gun or an automatic grenade launcher, and provides space for a lightweight remote weapon station for users who prefer under-armored gunner protection.
Protection
Armor Baseline ballistic shielding is designed to withstand fire from a 12.7 mm heavy machine gun on most angles, while the reinforced frontal armor can resist impacts from 20 mm projectiles. The floor is equipped with countermine features that help mitigate the effects of blasts from legacy mines and improvised explosive devices. Although the vehicle is not marketed as a full Mine-Resistant Ambush Protected (MRAP) vehicle, its focus on energy management beneath the vehicle and the carefully designed geometry of the lower hull provide a significant improvement in survivability compared to older armored vehicles still in use in the region.
Applique Armor INA
NBC Protection Yes
Smoke Equipment Six smoke dischargers give immediate screening during contact or withdrawal.
Details
Country of Origin Serbia
Category Land
Land
Filter Label
O
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.7 m
Width
2.6 m
Height
2.5 m
Weight
14000 kg
Operators (1)
Serbia
