BTR-87 Russian 8x8 Amphibious Armored Personnel Carrier (APC)
BTR-87
Amphibious Armored Personnel Carrier (APC)
Other
Basic Information
Name
BTR-87 Russian 8x8 Amphibious Armored Personnel Carrier (APC)
Designation
BTR-87
Alternate Designation
BTR-87
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Military Industrial Company (VPK)
Date of Introduction
2017
Description

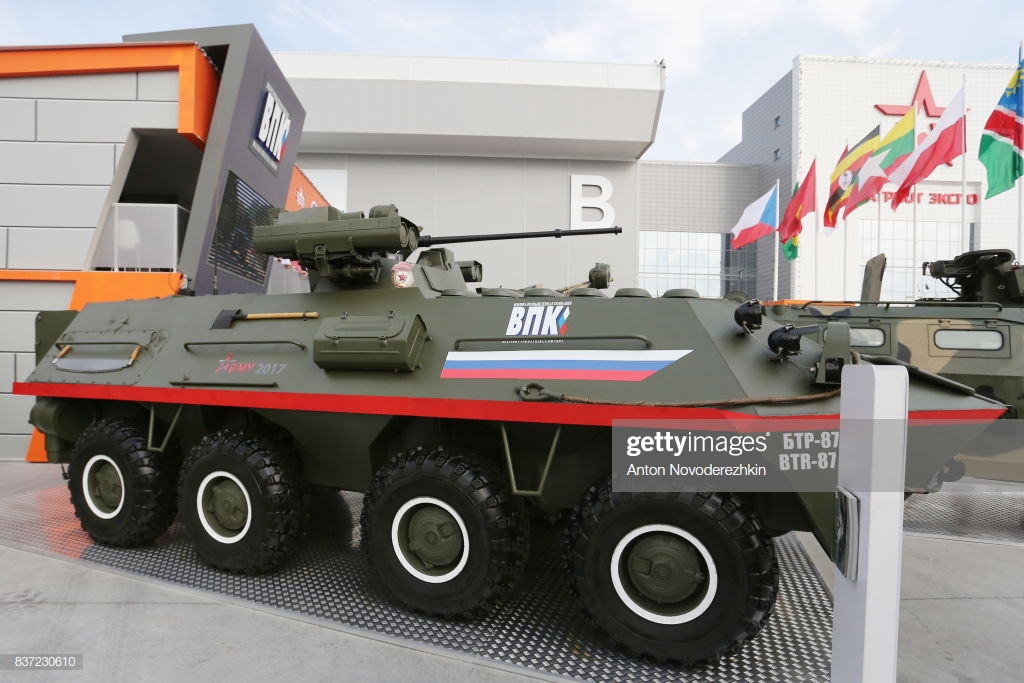

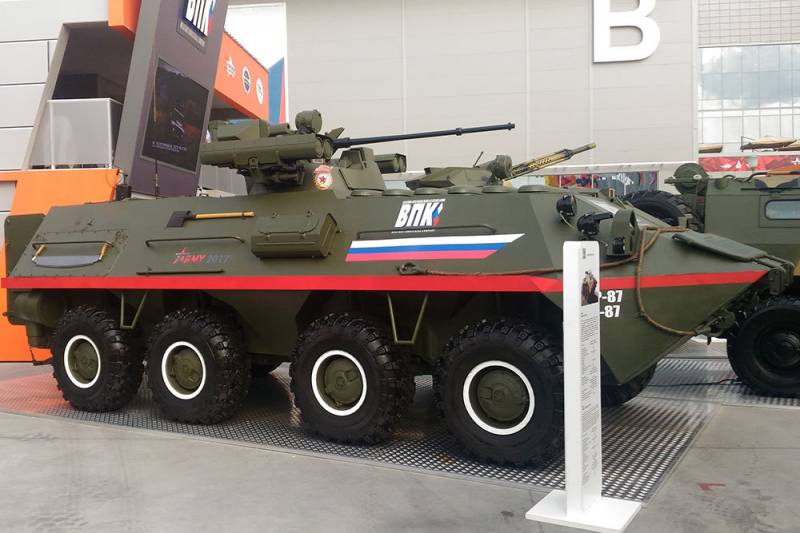

BTR-87 is designed by VPK with assemblies and units of BTR-82A APC. The vehicle was developed in 2015, and for the first time it was publicly demonstrated at the International Military-Technical Forum "Army-2017". The specifications of the BTR-87 is full analog of the BTR-82A. The difference is in the rear doors or ramp, which simplifies the landing of troops. To enable placement of the rear exit, the vehicle layout has changed - the engine is placed in front of the hull. Vehicles' ballistic armor protects the crew against small arms and shell splinters. The BTR-87 is additionally equipped with an NBC protection system.
Ground Specifications
Crew
2
Engine
Diesel (312 hp)
Active Protection
Hard-Kill APS
NBC Protection
Yes
Range
600.0 km
System
Alternative Designation
BTR-87
Type
Amphibious Armored Personnel Carrier (APC)
Description
Armored Personnel Carrier with front mounted engine.
Manufacturer
Russia`s Military-Industrial Company (VPK)
Configuration
8x8
Crew
2 ea
Passengers
8 ea
Note
Troops enter and leave the vehicle via rear entry doors rather than awkward side doors of the BTR-80 series vehicles
Dimensions
Length
7.56 m
Width
2.99 m
Height
3.02 m
Weight
16 - 16.5 tons (depending on the turret)
Automotive
Engine Name
YaMZ-53602
Engine Type
Diesel
Engine Mount Location
Front
Engine Power
312 hp
Fuel Tank Capacity
300 liters
Range
600 km
Speed, Maximum Road
90 km/h
Speed, Maximum Off Road
INA
Speed , Average Cross
INA
Speed, Maximum Swim
10 km/h
Gradient
60 %
Side Slope
30 %
Trench
2,000 mm
Vertical Obstacle
500 mm
Fording Depth
Amphibious
Communications
Radio
Name
R-173
Main Weapon System
32V01 Remote Controlled Weapon Station (RCWS)
Yes
Note #1
Additionally, the BTR-87 has a coaxial 7.62 mm machine gun
Note # 2
This armored vehicle has a universal turret mount and depending on customer requirements can be equipped with other turrets and remotely-controlled weapon stations
System
Name
1 x Shipunov 2A42
Type
Autocannon
Caliber
30 mm
Manufacturer
Tulamashzavod
In Service
1980-Present
Length
3.027 m
Barrel Length
2,416 mm
Diameter
INA
Weight
115 kg
Action
Gas-operated
Rate of Fire, Low
200 to 300 rds/min
Rate of Fire, High
550-800 rds/min
Effective Firing Range
2,000 metres (2,200 yd) (AP-T)
Maximum Firing Range
4,000 metres (4,400 yd) (HEI)
Feed System
Twin Feed
Ammunition
Type
Rifle
Caliber
30 mm
Cartridge
30 × 165 mm
Muzzle Velocity
960 m/s
Basic Load
500 ea
Anti-Tank Guided Missile (ATGM)
Name
9M133 Kornet (AT-14 Spriggan)
Type
man-portable anti-tank guided missile (ATGM)
Manufacturer
Degtyarev plant
In Service
1994-Present
Proliferation
+35,000
Length
1,200 mm
Diameter
152 mm
Wingspan
460 mm
Weight, with Launch Tube
27 kg
Weight, with Tripod and Firing Unit
63.7 kg
Warhead
1,000–1,200 (9K135), 1,200 (E), 1,300 (D) mm RHA penetration after ERA with Tandem HEAT, Thermobaric
Warhead Type
HEAT
Warhead Weight
4.6 kg
Detonation Mechanism
Impact Fuze
Propellant
Solid-fuel rocket
Operational Range, Kornet
100-5,500 m
Operational Range, Kornet-EM
8,000 m (anti-tank),
10,000 m (thermobaric)
Guidance System
SACLOS laser beam riding
Steering System
Two control surfaces
Accuracy
<5 m
Basic Load
4 ea
Protection
Active Protection System
Hard Kill
Armor, Front Arc
Withstands hits from 23 mm cannon
Armor, Sides
Withstand 12.7 mm rounds
Armor, All Around
Protection is likely to be against 7.62 mm bullets and artillery shell splinters
Applique Armor
Yes
Armor, Explosive Reactive
Yes
NBC Protection
Yes
Smoke Equipment
Yes
Firing Ports
Yes
Self-Recovery Winch
Yes
Central Tire Pressure System
Yes
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.56 m
Width
2.99 m
Height
3.02 m
Weight
16000 kg
Operators (1)
Russia
