Arma 6x6 Turkish Amphibious Infantry Fighting Vehicle (IFV)
Arma 6x6
Amphibious Infantry Fighting Vehicle (IFV)
Other
Basic Information
Name
Arma 6x6 Turkish Amphibious Infantry Fighting Vehicle (IFV)
Designation
Arma 6x6
Alternate Designation
Arma 6x6
Equipment Type
Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer
Otokar
Date of Introduction
2010
Description
The Arma 6x6 Turkish Amphibious Infantry Fighting Vehicle (IFV) is a Turkish-manufactured, modular wheeled armored platform that represents a modern approach to tactical mobility and survivability requirements. The vehicle combines superior cross-country mobility with scalable ballistic protection and weapons integration capability, positioning it as a competitive alternative to established European platforms in the medium-weight armored personnel carrier segment. The Otokar ARMA 6×6 represents mature design and proven operational authenticity within the tactical wheeled armored vehicle category. The platform balances mobility, protection, and armament integration across diverse mission profiles with demonstrated reliability in disparate operational environments. The scalable architecture from basic personnel carrier through fully-equipped fire-support variants provides force structure flexibility at manageable acquisition and lifecycle cost points compared to heavier 8×8 platforms or tracked alternatives. Continued variant development and regional operator expansion indicate sustained market competitiveness and manufacturer commitment to platform longevity through successive modernization cycles.
Ground Specifications
Crew
2
Mobility Type
Wheeled (6x6)
Engine
Turbocharged Diesel (450 hp)
NBC Protection
Yes
Amphibious
Yes
Max Speed
100.0 km/h
Range
700.0 km

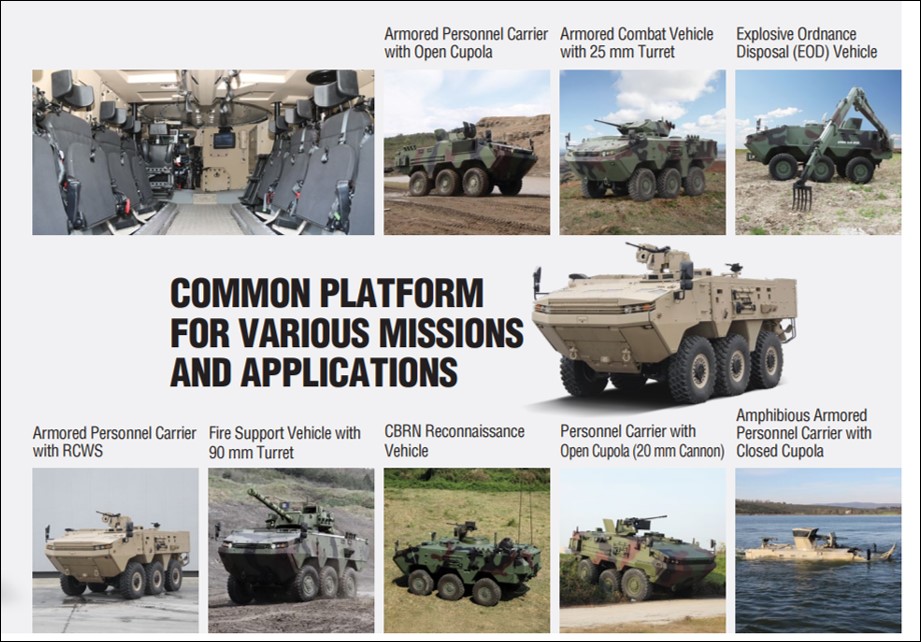

Variants
Personnel Carrier
Eight-dismount internal configuration optimized for transport and rapid dismount operations.
Combat Vehicle
Turret-equipped variants for fire support and reconnaissance.
Command & Control
Enhanced communications equipment with tactical operations center integration.
CBRN Reconnaissance
Specialized sensor packages and decontamination integration.
Medical Evacuation
Ambulance configuration with casualty care equipment.
Explosive Ordnance Disposal (EOD)
Remote-handling and containment features for ordnance management.
ARMA II Enhancement
The 8×8 variant represents a capability step-change with 40-ton weight authorization, 720-horsepower engine output, and integration of the John Cockerill CT-CV 105-millimeter turret system. This platform targets conventional combat scenarios and provides STANAG 4569 Level 4 protection with expanded internal volume for payload-intensive missions.
Rabdan (UAE Variant)
Joint development with Al Jasoor (Otokar 49%, Tawazun Holdings 51%) produced the Rabdan 8×8, designed as direct BMP-3 replacement for UAE forces. The variant achieves 28-ton weight with STANAG 4569 Level 4 ballistic and Level 4a/4b mine-blast protection, supporting 100-millimeter rifled gun, 30-millimeter automatic cannon, and coaxial armament through BMP-3 turret commonality. Projected procurement extends to 700 vehicles valued at $661 million.
System
Alternative Designation
Arma 6x6
Type
Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer
Otokar
Configuration
6x6
Crew
2 ea
Passengers
8 ea
Payload Capacity
4,500 kg
Dimensions
Length
7.0 m
Width
2.9 m
Height
2.46 m
Weight, Combat
23,000 kg
Automotive
Engine Name
Caterpillar
Engine Type
Turbocharged diesel
Engine Power
450 hp
Maximum Range
700 km
Maximum Speed
100 km/h

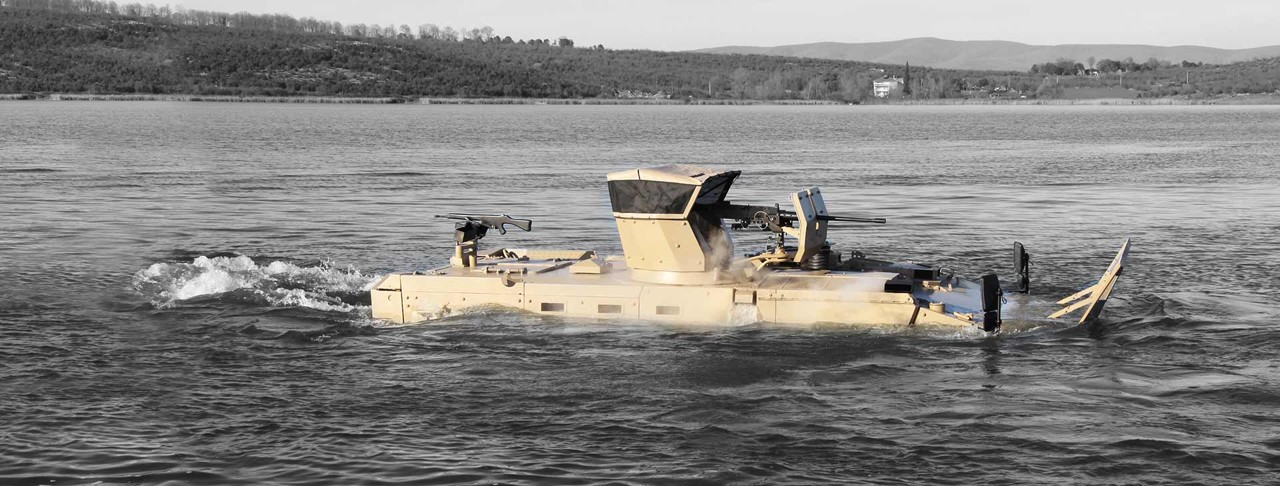

Amphibious
Yes
Amphibious Speed
9 km/h
Gradient
60%
Side Slope
30%
Vertical Step
600 mm
Trench
1,150 mm
Fording
1,500 mm
Ground Clearance
420 mm
Angle of Approach
45 deg
Angle of Departure
40 deg
Main Weapon System
Armament Integration
The ARMA 6×6 supports a tiered weapons architecture reflecting mission requirements across the spectrum from peacekeeping to high-intensity operations.
Standard Configuration
Open-ring support for 12.7-millimeter machine guns, as deployed with Bahrain's mechanized formations in Yemen operations beginning 2015. Remote-controlled weapon stations mounting 12.7-millimeter or 7.62-millimeter machine guns provide unmanned targeting capability with crew survivability advantages.
Intermediate Capability
The MIZRAK-25 turret system integrates a 25-millimeter dual-feed automatic cannon (likely M242 Bushmaster or Oerlikon KBA specification) paired with 7.62-millimeter coaxial machine gun armament. This configuration provides effects against light armored vehicles and aerial threats. The turret incorporates stabilization across dual axes, thermal/night imaging, laser rangefinding, and automatic target tracking capabilities, enabling engagement in degraded visibility conditions.
Advanced Configuration
The MIZRAK-30 turret elevates firepower through a 30-millimeter dual-fed automatic cannon with similar fire-control architecture to the MIZRAK-25. This system supports anti-aircraft roles through ammunition selection and provides effective suppression against position-hardened light infantry.
Force Multiplication Integration
The platform accommodates long-range anti-tank guided missile systems including Otokar's proprietary L-UMTAS with laser-guided terminal guidance, extending effective engagement range to 5,000+ meters for anti-armor or air defense missions.
Protection
Armor
The baseline ARMA 6×6 provides STANAG 4569 Level II ballistic protection, which defends against 7.62-millimeter armor-piercing ammunition at specified standoff distances. Anti-mine seating that channels blast energy away from the crew's torso and critical anatomical regions.
Applique Armor

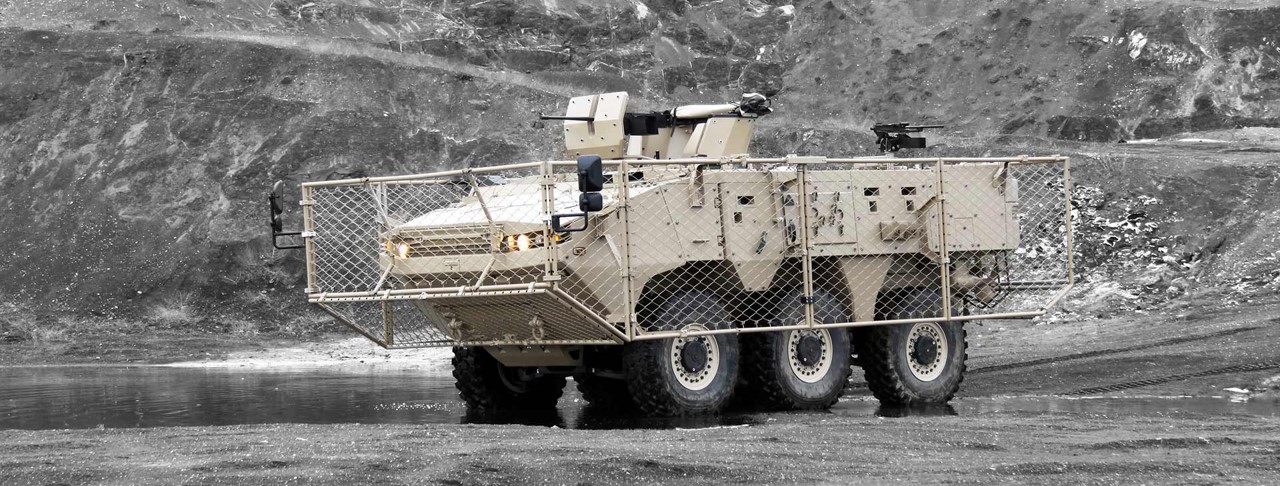

The modular nature of the protection architecture enables field-level upgrades—ceramic and composite armor modules can be replaced during maintenance cycles or tactical reassessment without dismantling core vehicle structures. Optional slat armor packages address rocket-propelled grenade (RPG) threats through standoff detonation, and the platform accommodates Otokar's TDU Mobile Camouflage System (MOCAS) to reduce signatures across the optical and thermal spectra.
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
Turkey
Category
Land
Land
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7 m
Width
2.9 m
Height
2.46 m
Weight
23000 kg
Operators (4)
Germany
Bahrain
Estonia
Kazakhstan
