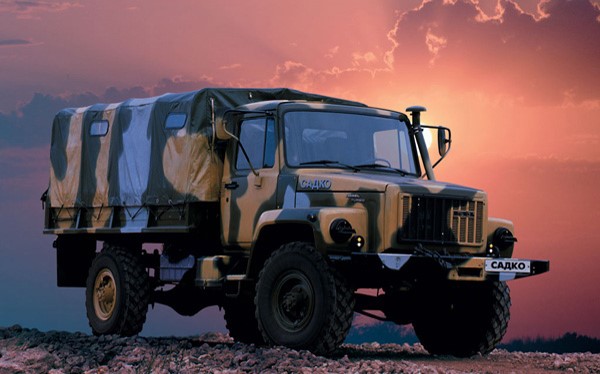

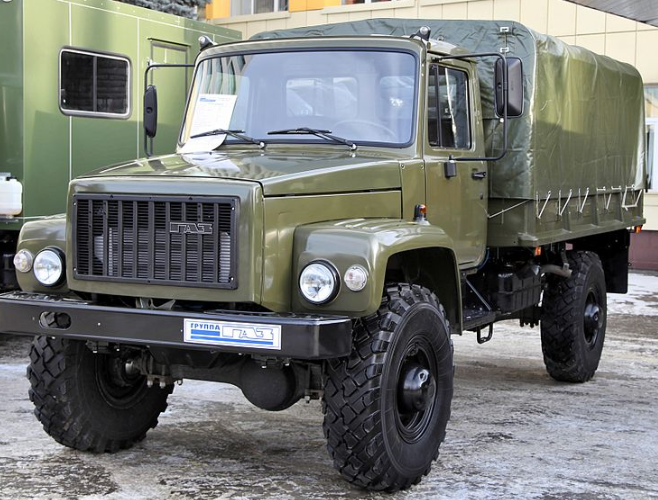

GAZ-3308 Sadko Russian 4X4 Light Utility Truck
Sadko
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
GAZ-3308 Sadko Russian 4X4 Light Utility Truck
Designation
Sadko
Alternate Designation
Sadko
Equipment Type
—
Manufacturer
GAZ
Date of Introduction
1996
Description
The GAZ-3308 Sadko Russian 4X4 Light Utility Truck is a military replacement of the previous GAZ-66, which was produced for 35 years.
Ground Specifications
Troop Capacity
2
Mobility Type
Wheeled (4x4)
Engine
ZMZ-513 gasoline, 4.25L, 116hp; 0r ZMZ-5233 gasoline, 4.67L, 122hp
Max Speed
90.0 km/h
Range
950.0 km
System
Alternative Designation
Sadko
Brake system (front)
Drums
Brake system (rear)
Drums
Cargo Height
1.36 mm
Cooling
Water
Curb Weight
3.71 kg
Number of Axles
2 ea
Number of Tires
4 ea
Payload
2.0 mt
Troop Capacity
2 ea
Wheels Central Tire Pressure Regulation System
Yes
Wheel Size
1200R18 in
Dimensions
Height
2570 mm
Length
6250 mm
Width
2.34 m
Wheelbase
3.77 m
Automotive
Engine Type
ZMZ-513 gasoline, 4.25L, 116hp; 0r
ZMZ-5233 gasoline, 4.67L, 122hp
Fording Depth
1.0 m
Ground Clearance
315 mm
Range, Cruising
950 km
Speed
90 km/h
Turning Radius
11 m
Vertical Step
0.6 m
Side Slope
40 %
Angle of Approach
48 degree
Angle of departure
32 degree
Fuel
Fuel Capacity
210 liters
Fuel Type
Gasoline
Payload
Cargo Space Cargo Bed Area
7.272 m2
Cargo Space Height
1.36 m
Cargo Space Length
3.39 m
Cargo Space Width
2.145 m
Gradient, Loaded
68 deg
Utility
Transport
Vehicle is used to carry troops and cargo while towing trailers or light artillery pieces.
Variants
GAZ-33081
MMZ D-245.7 turbodiesel engine
GAZ-33082
GAZ-562, 3.2L, turbodiesel engine
GAZ-33085
MZ-5233, 4.67L, gasoline engine; 4 ton, twin-tired rear axle
GAZ-33086
MMZD-245.7, 4.75L, turbodiesel, 117hp;
GAZ-33088
YaMZ-53442, 4.43L, turbodiesel engine; 4 ton, twin-tired rear axle
Sadko-NEXT
Increased carrying capacity of 3 tons; 3-person cab; YaMZ-534 turbocharged diesel 150hp engine
GAZ-3308811-10 Vepr (EN: Wild Boar)
Targeted replacement for older GAZ-66 vans and office-type rear bodies.
N2
MLRS system produced in Armenia on the GAZ-3308 chassis
Details
Country of Origin
Russia
Category
Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.25 m
Width
2.34 m
Height
2.57 m
Weight
3.71 kg
Operators (10)
Russia
Ukraine
Armenia
Azerbaijan
Bolivia
Iraq
Laos
Lebanon
Syria
Vietnam
