CW-007 Chinese Unmanned Aerial Vehicle (UAV)

CW-007

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
CW-007 Chinese Unmanned Aerial Vehicle (UAV)
Designation
CW-007
Alternate Designation
CW-007
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
JOUAV
Date of Introduction
2019
Description

The CW-007 Chinese Unmanned Aerial Vehicle (UAV) is designed to carry various mission payloads. Depending on your specific mission requirements, you can choose from several types of cameras, including a LiDAR system, industrial aerial camera, oblique camera system, gimbal system, and Synthetic Aperture Radar (SAR). This UAV features one-button takeoff and landing, making it both safe and easy to operate, with landing accuracy within 10 cm. It can be set up or taken down in less than two minutes, without the need for any tools. With vertical takeoff and landing capabilities, it reduces terrain dependency and can adapt to most locations. Equipped with dual GPS and dual compass systems, the CW-007 can smoothly switch to a backup unit in case of a fault, ensuring reliable operation.

Air & Air Defense Specifications
Engine Electric
Cruise Speed 61.2 km/h
Range 30.0 km
Endurance 55.00 hrs
Service Ceiling 6000 m
Wingspan 2.20 m
Payload Capacity 1 kg
System
Alternate Designation CW-007
Type Unmanned Aerial Vehicle (UAV)
Manufacturer JOUAV
Payload Capacity 1 kg

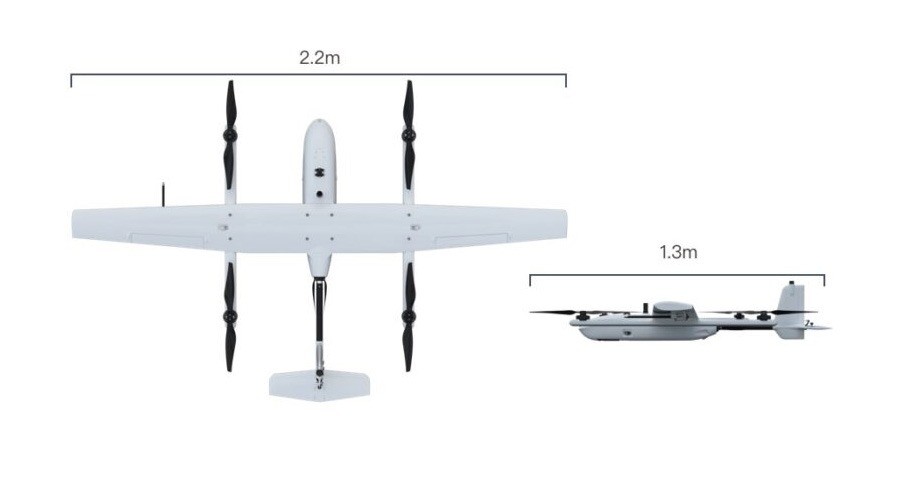

Dimensions
Length 1.3 m
Height INA
Wingspan 2.2 m
Maximum Takeoff Weight 6.8 kg
Automotive
Engine Name INA
Engine Type Electric Motor (Low noise, brushless)
Engine Power INA
Maximum Speed INA
Cruise Speed 61.2 km/h
Maximum Range 30 km
Service Ceiling 6,000 m
Endurance 55 min
Details
Country of Origin China
Category UAVs
Air > UAVs
Filter Label
C
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.3 m
Width
2.2 m
Height
Weight
6.8 kg
Operators (1)
China
