1V110 Russian 4x4 Artillery Command and Reconnaissance Vehicle
1V110
Armored Reconnaissance Vehicle
Other
Basic Information
Name
1V110 Russian 4x4 Artillery Command and Reconnaissance Vehicle
Designation
1V110
Alternate Designation
1V110
Equipment Type
Armored Reconnaissance Vehicle
Manufacturer
—
Date of Introduction
1979
Description

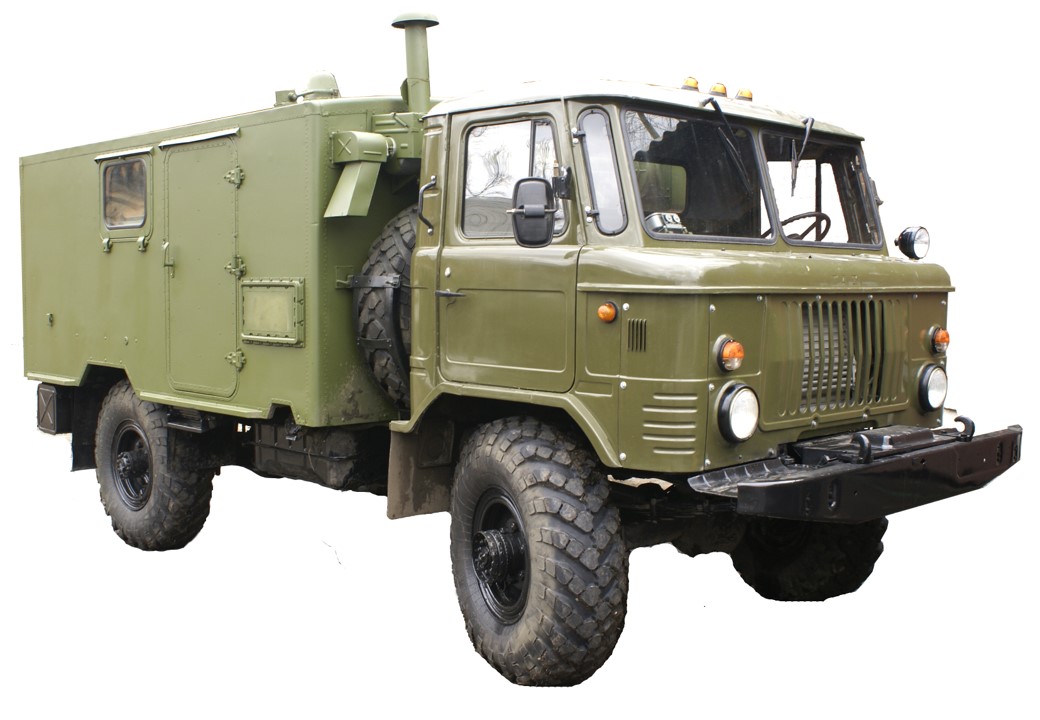

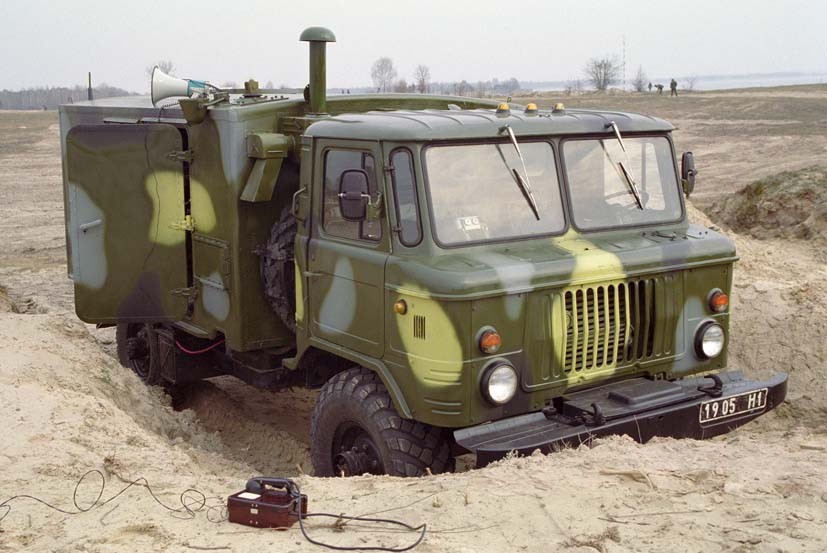

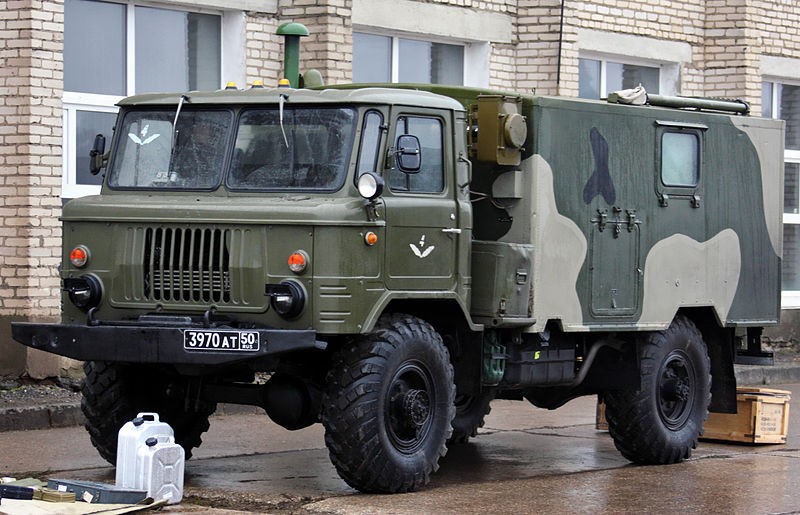

The 1V110 is a battalion-level artillery and rocket fire direction and control vehicle. It is based on the GAZ-66 (4 x 4) BBV truck. The 1V110 is assessed to be the battery senior officer's vehicle.
Ground Specifications
Crew
5
Mobility Type
Wheeled (4x4)
Engine
Water-cooled, gasoline (115 hp)
Max Speed
87.0 km/h
Range
875.0 km
System
Alternative Designation
1V110
Type
Artillery Command and Reconnaissance Vehicle
Chassis
GAZ-66 (4 x 4) BBV truck
Configuration
4x4
Crew
5 ea
Dimensions
Height, Overall
2.44 m
Length, Chassis Overall
5.66 m
Width, Overall
2.34 m
Weight, Combat
3.6 tons
Automotive
Engine Name
ZMZ-66
Engine Power
115 hp
Engine Type
Water-cooled, gasoline
Range, Cruising
875 km
Speed, Average Cross-Country
INA
Speed, Maximum Off-Road
35 km/h
Speed, Maximum Road
87 km/h
Maximum Fording Depth
1 m
Communications
Radios
R-123M radio (3 each)
Fire Control System
Fire direction
Automated fire direction: 1V520. Manual fire direction: PUO-7. The vehicle is equipped with the APK automated firing data receiver.
Other
DSP-30 laser rangefinder, K-1 collimator
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
1
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.66 m
Width
2.34 m
Height
2.44 m
Weight
3600 kg
Operators (1)
Russia
