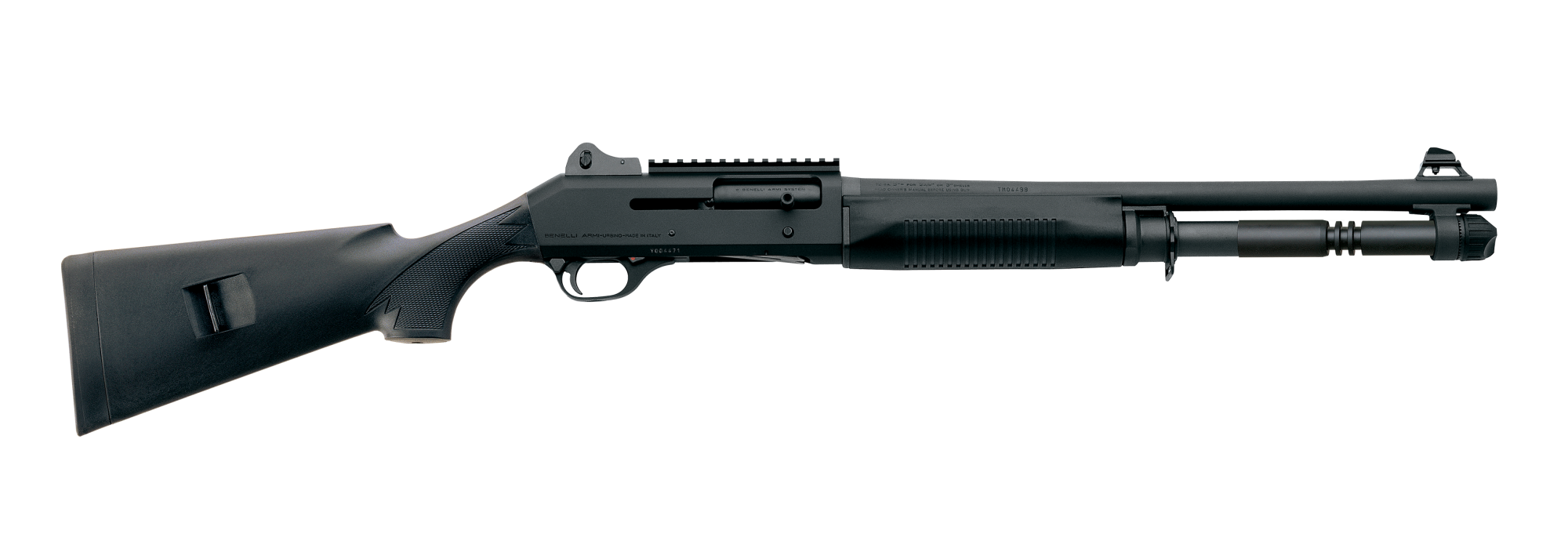

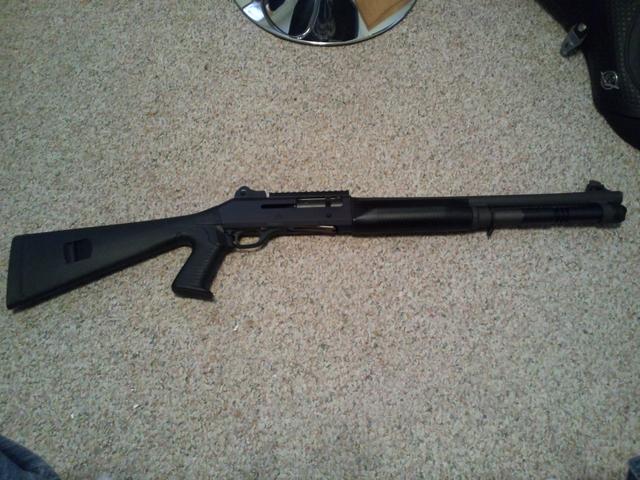

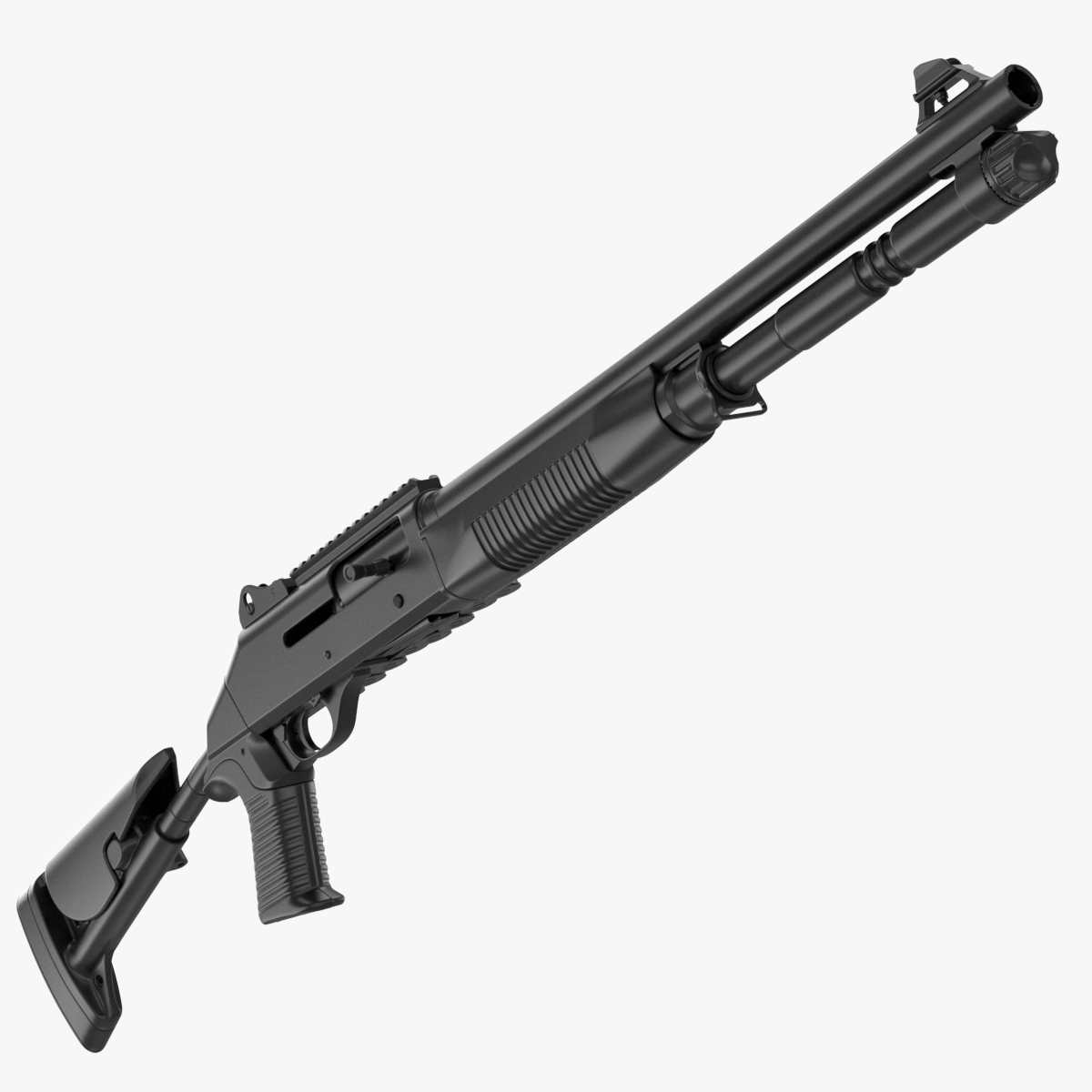

Benelli M4 Super 90 (M1014) Italian 12-Gauge Semi-Automatic Shotgun

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Benelli M4 Super 90 (M1014) Italian 12-Gauge Semi-Automatic Shotgun
Designation
Alternate Designation
Equipment Type
Manufacturer
Benelli
Date of Introduction
1999
Description

This is probably one of the most respected foreign shotguns in Russia. Italy’s Benelli M-4 Super 90 is famed not only for its ergonomics and reliability, but also for its beauty. It’s been adopted by the U.S. military and law enforcement units. It received an adjustable stock and Picatinny rails that allows operatives to install various tactical gear to increase operational mobility. The guns are loved by U.S. marines and have become a popular weapon on the civilian arms market in Russia. Yet the gun is pretty expensive compared to Russian weapons of this type - sanctions as well as customs duty have increased the cost of the M-4 to nearly $3,000, which is a pretty hefty price tag, especially when you can bag a Saiga-12 for around $400. The M4 was the first gas-operated shotgun produced by Benelli. Its function is designed around an entirely new method called the "auto regulating gas operated" (ARGO) system. The short-stroke design uses two stainless-steel self-cleaning pistons located just ahead of the chamber to function opposite the rotating bolt, thereby eliminating the need for the complex mechanisms found on other gas-actuated automatics. The ARGO incorporates only four parts: two symmetrical shrouds containing two small steel gas pistons. Additionally, the weapon is self-regulating for use with cartridges of varying length and power levels. It can fire 2.75 (70 mm) and 3-inch (76 mm) shells of differing power-levels without any operator adjustments and in any combination. Low-power rounds, such as less-lethal rubber pellets, must be cycled manually. The sights are military-style ghost ring and are adjustable in the field using only a cartridge rim. The MIL-STD-1913 Picatinny sight rail on top allows use of both conventional and night-vision sights, while retaining use of the original sights. he modular basis of the shotgun means many of its features can be reconfigured as needed. It allows a user to quickly exchange the various assembly groups (barrel, buttstock, forearm, etc.) without the use of tools. Preliminary testing of the M4 suggests a high level of reliability. It can reliably function for at least 25,000 rounds without replacement of any major parts.[2][3] The steel components of the weapon feature a matte black phosphated corrosion resistant finish while the aluminum parts are matte hard-anodized. These finishes reduce the weapon's visibility during night operations. The weapon requires little maintenance and operates in all climates and weather conditions

System
Alternate Designation(s) Benelli M4 Super 90 (M1014)
Primary Function / Type Semi-Automatic Shotgun
Manufacturer Benelli Armi SPA
Action Gas-operated, rotating bolt
Effective Firing Range 50 m
Feed System 5+1 (civilian) or 7+1 (Military, LE) internal tube (Using 2.75 shells) magazine
Sights Ghost ring sight, Picatinny rail for sights
Collapsible Buttstock The buttstock is collapsible on the M4 Model (designated 11707) and on the M1014.Collapsing the buttstock shortens the weapon by almost 8 inches, allowing easier storage and transportation; furthermore, it permits better maneuverability around tight corners and over obstacles. The M4 is also available with both pistol grip and semi-pistol grip fixed stocks, with these also being available for the M1014. The M4 is no longer sold today with the skeleton fixed stock (model M11707) to civilians. Benelli only sells the M4 with a fixed pistol grip style tactical stock in the United States. However, the collapsible butt stock can be purchased by civilians in Canada.
Dimensions
Length 885 mm
Barrel Length 470 mm
Weight 3.82 kg
Ammunition
Caliber 12 Gauge
Basic Load 5+1 (civilian) or 7+1 (Military, LE) internal tube (Using 2.75 shells) magazine
Details
Country of Origin Italy
Category Shotguns
Land > Infantry Weapons > Shotguns
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.89 m
Width
Height
Weight
3.82 kg
Operators (21)
United States
France
United Kingdom
Israel
Italy
Serbia
Belarus
Australia
Croatia
Georgia
Greece
Indonesia
Iraq
Ireland
Libya
Lithuania
Malaysia
Malta
Portugal
Slovakia
Slovenia
