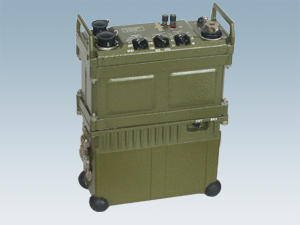

R-168-5UN(1)E Russian VHF Manpack-Vehicular Radio Station
R-168-5UN(1)E
VHF Radio
Other
Basic Information
Name
R-168-5UN(1)E Russian VHF Manpack-Vehicular Radio Station
Designation
R-168-5UN(1)E
Alternate Designation
R-168-5UN(1)E
Equipment Type
VHF Radio
Manufacturer
Yaroslavl Radioworks Corp
Date of Introduction
2000
Description
The R-168-5U(N)1E VHF manpack-vehicular radio station provides clear and secure radio communications in tactical command level radio networks in a harsh ECM environment. The radio station is produced as a manpack, vehicular, or fixed version. R-168-5UN(1)E replaces R-159 (16 kg), R-159M (16 kg), R-163-10U (14 kg).
Variants
R-168-5UNE-2
The R-168-5UNE-2 is a VHF FH multi-channel manpack radio designed for tactical applications in Regiment, Battalion and Company networks. It supports clear or secure voice and data transmission.
System
Alternate Designation
R-168-5UN(1)E
Type
VHF Manpack-Vehicular Radio Station
Manufacturer
Yaroslavl Radioworks Corp
Composition
Transceiver, handset «GID», handset MTT-1, rod antenna ASh-1.5, battery 10NKGTs 6-2, battery casing bag for carrying purposes, individual SPTA set, operating and technical documentation set.
Modes of Operation
Scanning reception at 6 preset frequencies, operation with cut in noise suppressor in FM telephony mode, tone call transmission and reception, listening watch power-saving, radio data input from recording device, simplex or two-frequency simplex at one of preset frequencies, remote control via two-wire line with a telephone from up to 500 m distance, earlier input data erasing in case of emergency.
Frequency Range
30–87.975 MHz
Communication Range
10-12 km
Channel Spacing
25 kHz
Data Rate
16 kbps analogue encrypted; 1.2, 2.4, 4.8 and 16 kbps digital from external terminal
Receiver Sensitivity
1.0 μV
Transmitter Output Power
1 W (min); 8 W (max)
Susceptibility Level by Side Reception Channels
Not less than 80 dB
Transmitter Frequency Harmonic Components Attenuation
Not less than 40 dB
Continuous Operation Time from Accumulator Battery at Time Ratio Rx:Tx:Econ=1:1:8
Not less than 16 hours
Operating Temperature
- 40°С...+ 55°С
Dimensions
Length
210 mm
Width
90 mm
Height
200 mm
Weight
2.7 kg
Details
Country of Origin
Russia
Category
Very High Frequency (VHF) Radios
Land > Communication Equipment > Very High Frequency (VHF) Radios
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.21 m
Width
0.09 m
Height
0.2 m
Weight
2.7 kg
Operators (1)
Russia
