QLG-10 (Type 10) Chinese 35mm Under-Barrel Grenade Launcher
QLG-10
Grenade Launcher
Other
Basic Information
Name

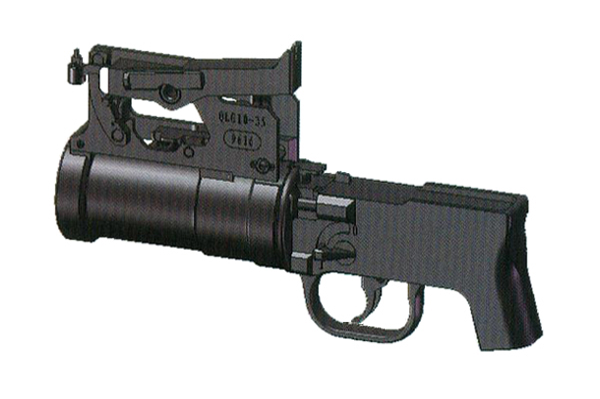

QLG-10 (Type 10) Chinese 35mm Under-Barrel Grenade Launcher
Designation
QLG-10
Alternate Designation
QLG-10; Type 10
Equipment Type
Grenade Launcher
Manufacturer
—
Date of Introduction
2010
Description
The QLG-10 Chinese 35mm Under-Barrel Grenade Launcher was designed to be mounted on China's QBZ-95 assault rifle. It is modeled after Russian under-barrel grenade launchers such as the GP-25, GP-30 and GP-34.
Variants
QLG-10A
The overall construction of the QLG-10A features a redesigned firing mechanism located at the rear of the barrel assembly that fits under the fore‐end with a loop‐type trigger, which sits directly under the host weapon trigger‐guard.
System
Alternate Designation
QLG-10; Type 10
Type
Under-Barrel Grenade Launcher
Caliber
35 mm
Manufacturer
INA
Muzzle Velocity
78 m/s
Rate of Fire
4 - 5 rpm
Maximum Effective Firing Range
200 m
Sighting Range
400 m
Sighting
The QLG-10 sighting device is a simple ladder type positioned on the top left of the interface mounting.
Dimensions
Length
310 mm
Weight
1.45 kg
Ammunition
Type
Grenade
Caliber
35 mm
Cartridge
35 x 310 mm
Basic Load
INA
Note
The QLG-10 (Type 10) Chinese 35mm Under-Barrel Grenade Launcher uses DFS-10 ceaseless high explosive fragmentation grenades. Though most likely more types of grenades, including training and smoke are available for this weapon. These are modeled after the Russian VOG-25 grenades but are smaller and lighter.
Image Sources
Details
Country of Origin
China
Category
Land
Land
Filter Label
Q
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.31 m
Width
—
Height
—
Weight
1.45 kg
Operators (1)
China
