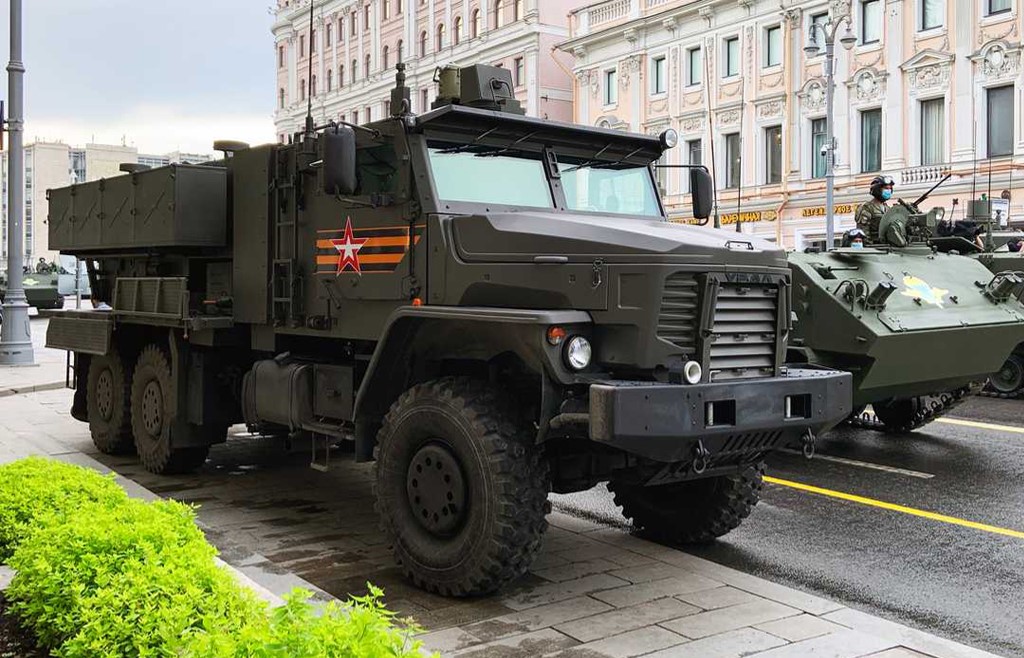

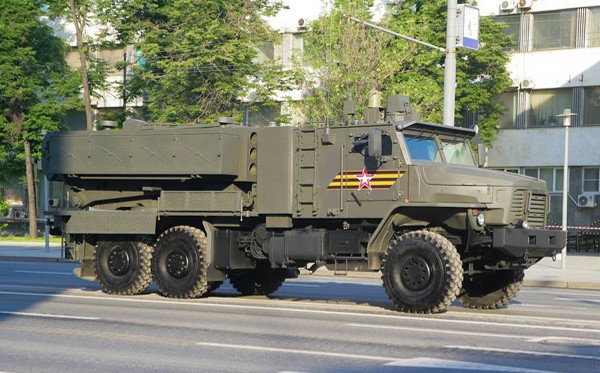

TOS-2 Russian 220mm Heavy Flamethrower System

TOS-2

Flamethrower
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
TOS-2 Russian 220mm Heavy Flamethrower System
Designation
TOS-2
Alternate Designation
TOS-2; "Tosochka"
Equipment Type
Flamethrower
Manufacturer
Omsktransmash
Date of Introduction
2021
Description

The TOS-2 Russian 220mm Heavy Flamethrower System is a new Russian flamethrower system. It is also nicknamed as the Tosochka. It is a lighter, less expensive, and more mobile version of the TOS-1A system. The TOS-2 is a Russian-made heavy flamethrower system notable for its unique operational method. It deviates from traditional flamethrowers by employing thermobaric and incendiary rockets, which combine fuel and air in a cloud that, upon detonation, generates intense heat and pressure, rapidly consuming surrounding oxygen. The term "thermobaric" pertains to the type of explosive used in the rockets, producing a fiery explosion followed by a concussive shockwave upon detonation. This attribute renders the TOS-2, along with its tracked counterpart, the TOS-1A, particularly effective in engaging enemy personnel within fortified positions or open terrain. The TOS-2's destructive capabilities originate from its capacity to unleash destruction by firing 220mm rockets from 18 launch tubes, delivering a relentless barrage. The thermobaric effect of these rockets proves highly destructive, especially in enclosed spaces such as bunkers or urban environments, producing more heat and overpressure compared to conventional explosives by igniting a vapor within the blast zone. The resulting shockwave and intense heat from the detonation can cause extensive damage, surpassing the destructive potential of conventional explosives. This effect can be particularly detrimental to organs with varying tissue densities, such as the lungs, bowel, and inner ear.

Ground Specifications
Crew 5
Engine Diesel (440 hp)
NBC Protection Yes
Range 1000.0 km
System
Alternative Designation TOS-2; "Tosochka"
Type Heavy Flamethrower System
Caliber 220 mm
Manufacturer Omsk Transmash Design Bureau
Family TOS
Crew 5 ea

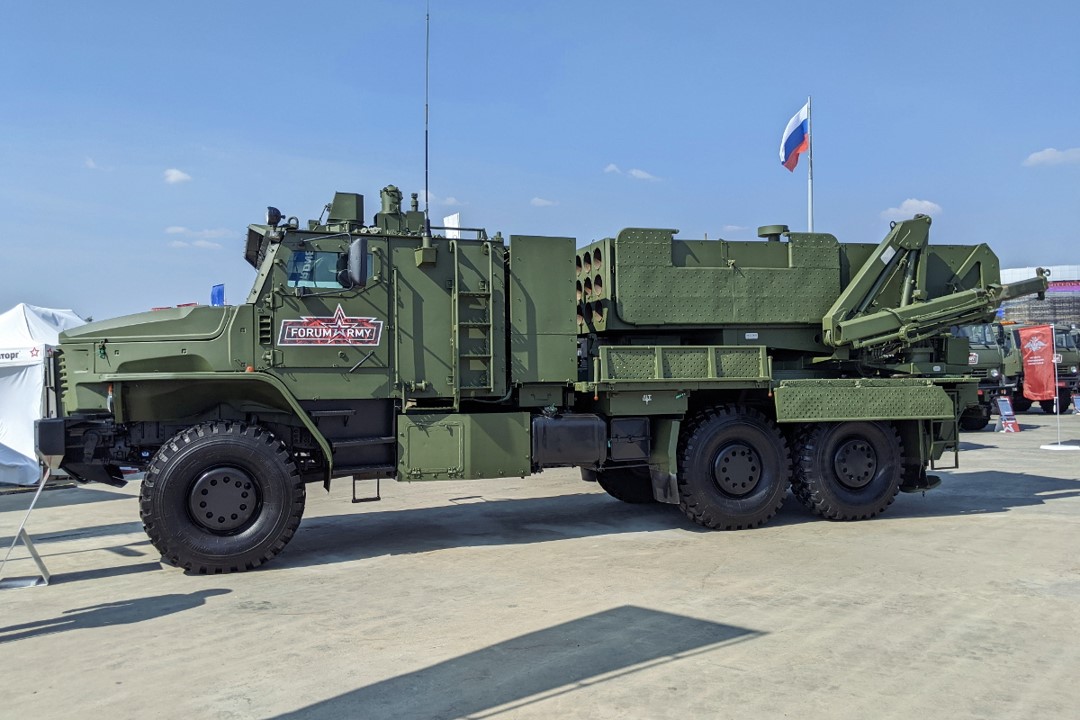

Chassis The TOS-2 is based on a wheeled 6x6 chassis.

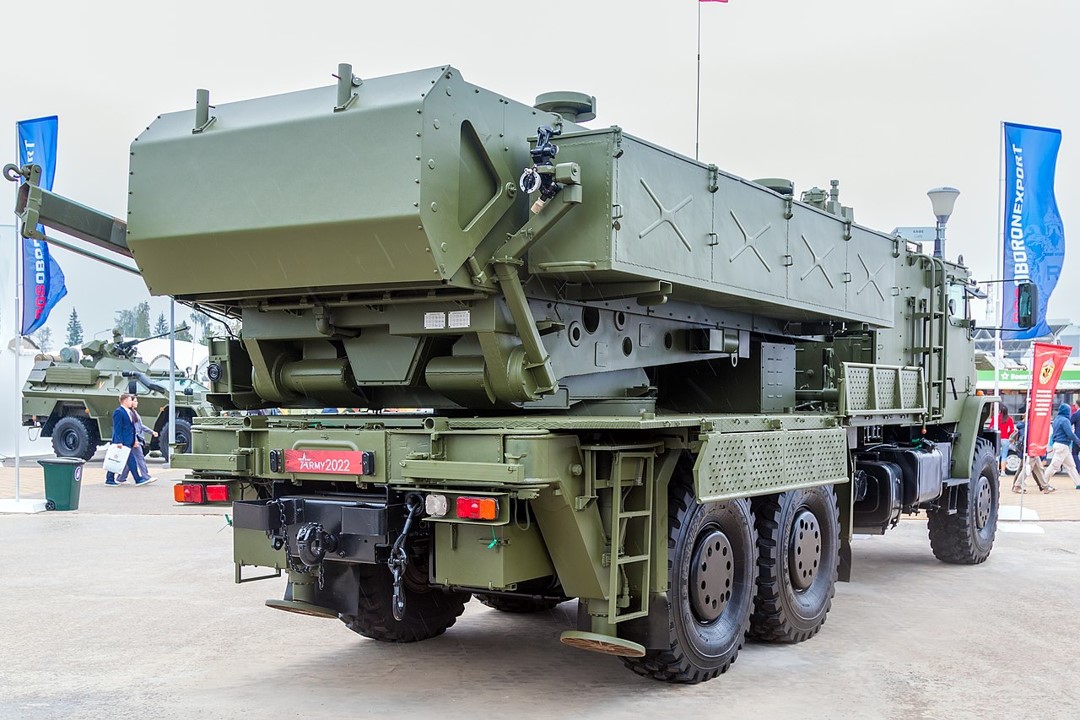

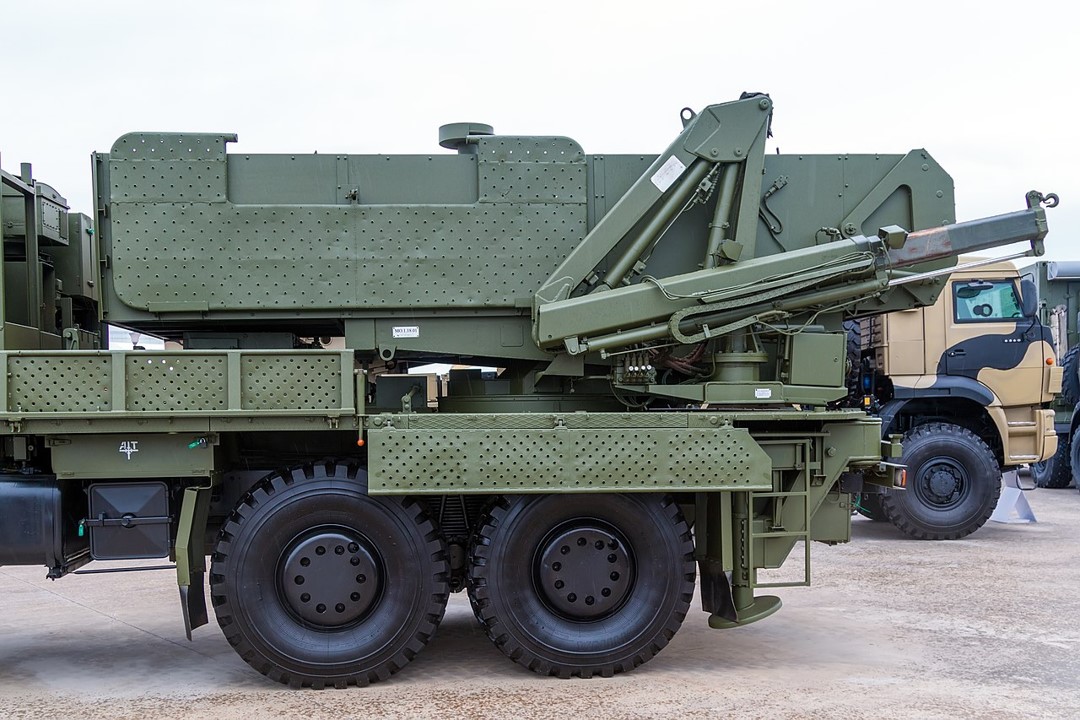

Crane The TOS-2 is fitted with hydraulic crane, which is used to reload rockets. This system can pick and load rockets from the ground, or from escorting resupply truck. There is no need for a dedicated reloading vehicle. This also reduces procurement and operating costs.
Displacement Time INA
Emplacement Time The launcher vehicle can stop and fire at a visible target within 90 seconds from traveling.
Dimensions
Length 10.0 m
Width 2.5 m
Height 3.5 m
Weight, Combat 20 tons
Automotive
Engine Name YaMZ-652
Engine Type Diesel
Engine Power 440 ho
Maximum Range 1,000 km
Speed, Maximum Road 100 km/h
Amphibious No
Gradient 60 %
Side Slope 40 %
Vertical Step 0.55 m
Trench 1.2 m
Fording Depth 1.8 m
Main Weapon System
System
Name INA
Type Heavy Flamethrower
Caliber 220 mm
Number of Tubes 16 ea
Maximum Firing Range 6 km
Full Salvo Duration 10 seconds
Reloading Time INA
Note #1 This rocket system is used to clear out buildings, bunkers and field fortifications using its thermobaric rockets.
Note #2 There are at least two types of warheads including incendiary and thermobaric. The thermobaric weapons are also called vacuum or fuel-air explosive weapon. This type of munitions releases a large cloud of flammable gas and causes massive explosions.
Ammunition (Option #1)
Name MO.1.01.04
Type Rocket
Caliber 220 mm
Length 3.3 m
Weight 173 kg
Maximum Range The original rocket for the TOS-1A had a range of only 2,700 m
Ammunition (Option #2)
Name MO.1.01.04M
Type Rocket
Caliber 220 mm
Length 3.7 m
Weight 217 kg
Maximum Range 6,000 m
Ammunition (Option #3)
Name M0.1.01.04M2
Type Rocket
Caliber 220 mm
Length INA
Weight INA
Maximum Range 10 km
Fire Control
Fire Control System Yes
Battle Management System Yes
Note #1 The TOS-2 is equipped with modern navigation equipment, a laser rangefinder, satellite navigation, a Doppler speed meter, and an inertial measurement unit. Its ability to fire from unprepared positions, coupled with onboard guidance and fire control systems, enables highly automated operation.
Note #2 All guidance and firing procedures are made from inside of the truck, without exposing the crew to enemy fire.
Protection
Hull Armor The cab is armored and provides protection for the crew against small arms fire and artillery shell splinters.
Applique Armor INA
NBC Protection Yes
Smoke Equipment INA
Details
Country of Origin Russia
Category Land
Land
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10 m
Width
2.5 m
Height
3.5 m
Weight
20000 kg
Operators (1)
Russia
