1V111 Russian 6x6 Artillery Command and Reconnaissance Vehicle
1V111
Armored Reconnaissance Vehicle
Other
Basic Information
Name
1V111 Russian 6x6 Artillery Command and Reconnaissance Vehicle
Designation
1V111
Alternate Designation
—
Equipment Type
Armored Reconnaissance Vehicle
Manufacturer
—
Date of Introduction
1979
Description

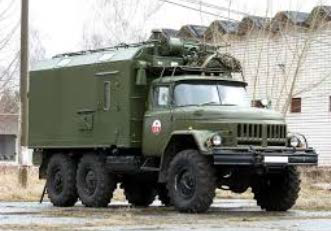

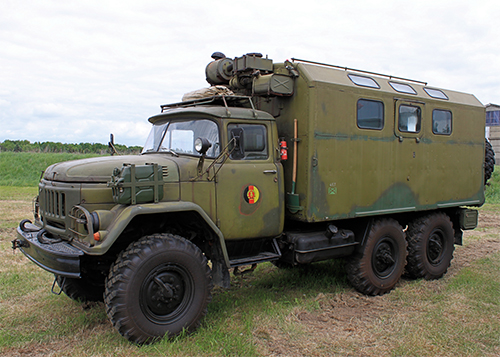

The 1V111 is a battalion-level artillery and rocket fire direction and control vehicle. It is based on the ZIL-131 (6 x 6) BBV truck.
Ground Specifications
Crew
5
Mobility Type
Wheeled (6x6)
Engine
V-8 Gasoline
Max Speed
80.0 km/h
Range
850.0 km
System
Alternative Designations
1V111
Type
Artillery Command and Reconnaissance Vehicle
Chassis
ZIL-131
Configuration
6x6
Crew
5 ea
Dimensions
Length
6.90 m
Height
2.48 m
Width
2.50 m
Weight
6.7 tons
Automotive
Vehicle

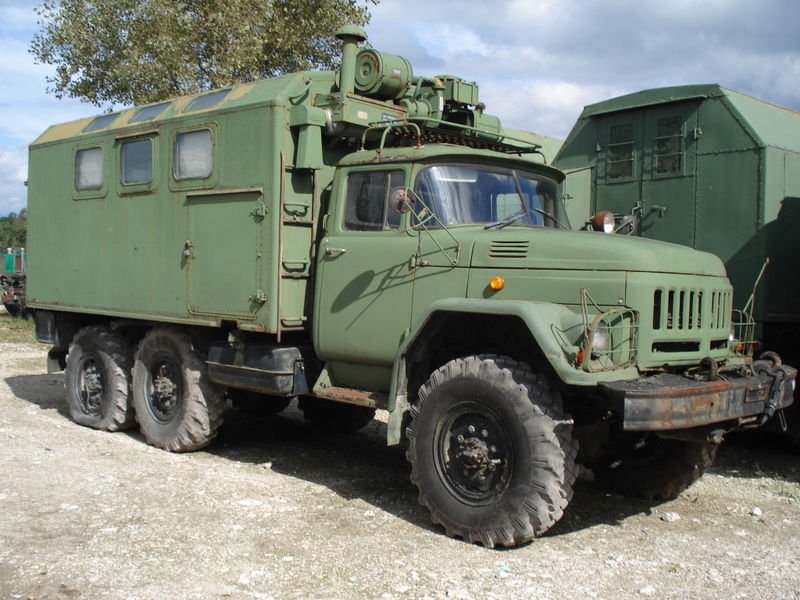

ZIL 131 6x6 box body van
Engine Type
V8 gasoline
Cruising Range (km)
850 km
Max Road Speed (km/h)
80 km/h
Max Off-Road Speed (km/h)
35 km/h
Cross-Country Speed (km/h)
INA
Fording Depth
1.4 m
Communication
Radios
R-111M (1 each), R-123M (2 each) radios; R-130M short-wave radio (1 each), and R-326 receiver (1 each)
Sensors/Components
Fire direction
9V59 fire-control computer
Protection
Note
The ZiL-131 is a light skinned vehicle and provides no protection to the crew
NBC
Shelter may have an overpressure system to provide protection against an NBC attack
Image Sources
Notes
https://www.facebook.com/340860576558041/posts/going-to-be-signing-off-facebook-for-a-bit-if-anyone-fancies-looking-after-this-/404938990150199/; https://commons.wikimedia.org/wiki/File:ZIL_131_mit_Koffer_mechanische_Werkstatt_MSMU-1A.JPG; https://commons.wikimedia.org/wiki/File:Zil131_nva.jpg;
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
1
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.9 m
Width
2.5 m
Height
2.48 m
Weight
6700 kg
Operators (2)
Russia
CFE Treaty
