RABDAN 6X6 Emirati Amphibious Infantry Fighting Vehicle (IFV)

RABDAN 6x6

Amphibious Infantry Fighting Vehicle (IFV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
RABDAN 6X6 Emirati Amphibious Infantry Fighting Vehicle (IFV)
Designation
RABDAN 6x6
Alternate Designation
RABDAN 6x6
Equipment Type
Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer
Al Jasoor
Date of Introduction
2021
Description

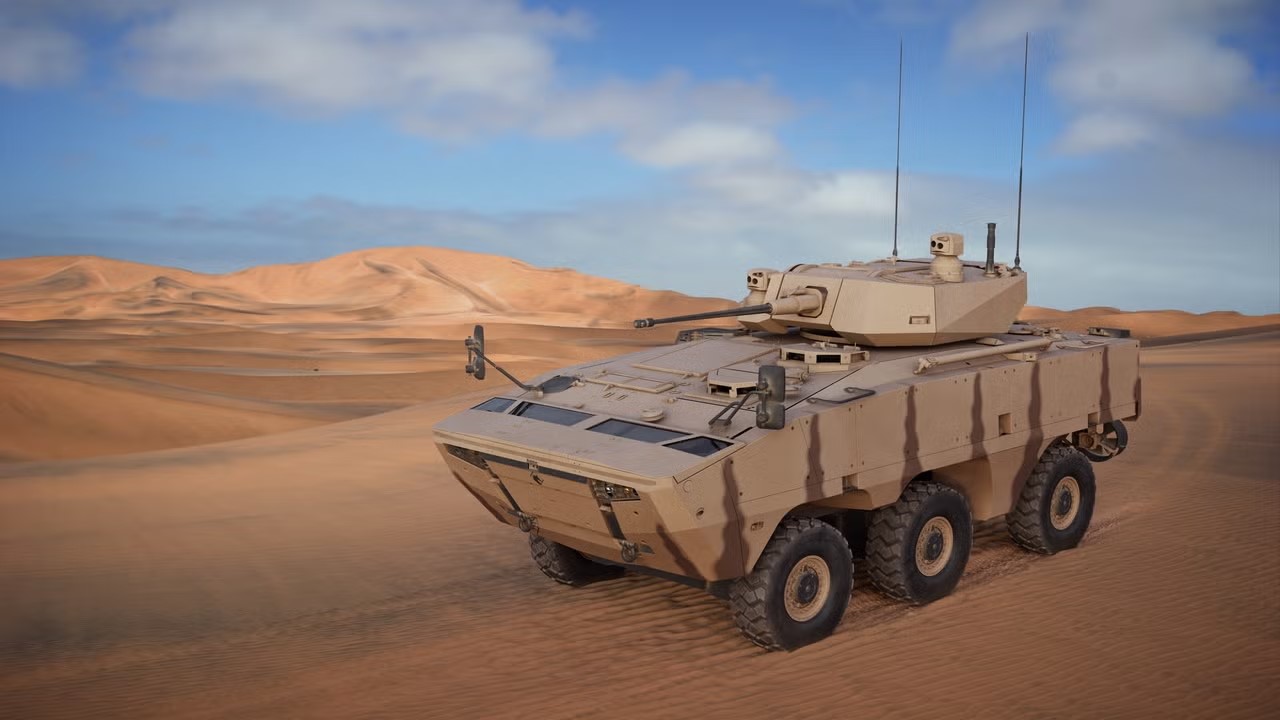

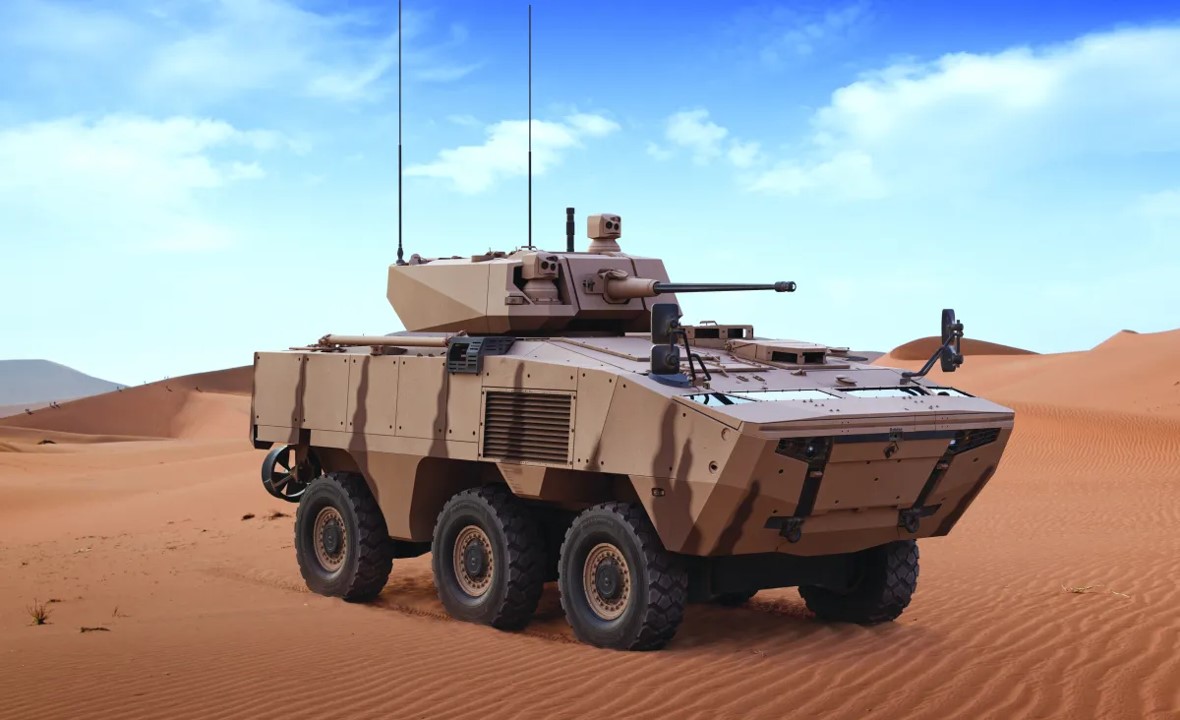

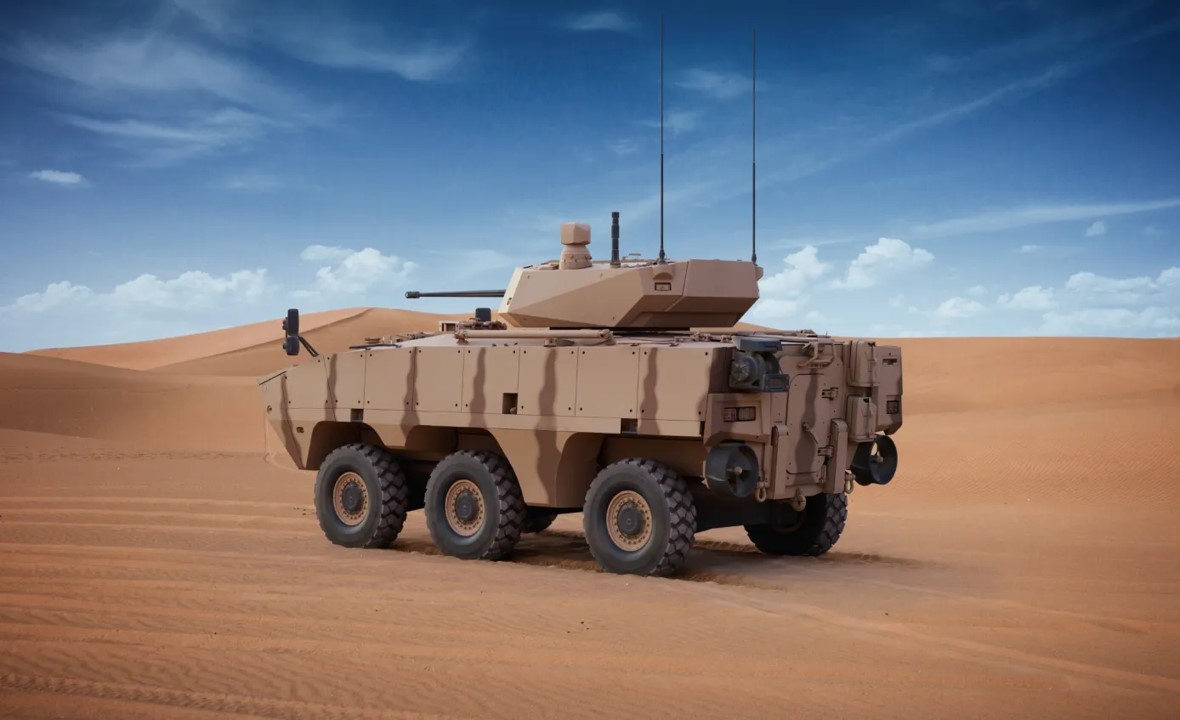

The RABDAN 6X6 is an Emirati Amphibious Infantry Fighting Vehicle (IFV) offered by Al Jasoor, a collaboration between the UAE’s Edge and the Turkish vehicle manufacturer Otokar Land Systems. This variant of the Rabdan infantry fighting vehicle is designed to enhance amphibious capabilities and provide superior mobility in extreme off-road conditions, making it suitable for a variety of mission profiles within modern armies. The crew cabin is located next to the engine compartment and features adjustable seats for both the driver and the commander. The vehicle includes roof hatches, gun ports, vision blocks, an air conditioning system, a floating floor, and a towing eye. Additionally, the infantry fighting vehicle is equipped with a self-recovery winch to assist in retrieving the vehicle in the event of a breakdown. A ramp door located at the rear provides an emergency exit for quick evacuation during emergencies. The Rabdan 6X6 is also fitted with an integrated display and vision enhancement system for the driver. Its electronic systems include blackout lighting, fog lights, a logging and replay system for displaying video and vehicle data, a jump start socket, and command, control, communications, computers, and intelligence (C4I) systems. Optional features for the vehicle include a GPS/INS navigation system and a radio/intercom system.

Ground Specifications
Crew 2
Mobility Type Wheeled (6x6)
Main Weapon 7.62mm, 12.7mm, and 14.5mm machine guns, as well as a 40mm automatic grenade launcher, 20mm, 25mm, and 30mm cannons, along with a 90mm cannon
Engine Turbocharged Diesel (450 hp)
NBC Protection Yes
Amphibious Yes
Max Speed 105.0 km/h
Range 700.0 km
System
Alternative Designation RABDAN 6x6
Type Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer Al Jasoor
Configuration 6x6
Crew 2 ea
Passengers 8 ea
Dimensions
Length 7,000 mm
Width 2,900 mm
Height 2,460 mm
Weight, Combat 22,500 kg
Automotive
Engine Name INA
Engine Type Turbo charged diesel engine
Engine Power 450 HP
Transmission Automatic
Electrical System 24 V, 12 V, 120 Ah Maintenance-free Batteries, 28 V Alternator
Maximum Range 700 km
Maximum Speed 105 km/h
Amphibious Yes
Amphibious Speed 8 km/h
Ground Clearance 420 mm
Gradient 60%
Side Slope 30%
Vertical Step 600 mm
Trench 1,150 mm
Fording 1,500 mm
Axles Differentials with lock and geared wheel hubs
Suspension Fully independent suspension with telescopic type shock absorber & helical spring
Brakes Pneumatic service brakes with discs on each wheel, dual circuit with ABS Pneumatic independent park brake system
Steering Power assisted, steerable 1st and 2nd axles
Tires 14.00 R20 with run-flat system
Main Weapon System
Note The modular design of the Rabdan 6×6 infantry fighting vehicle enables the integration of remote-controlled weapon stations. These stations can be equipped with 7.62mm, 12.7mm, and 14.5mm machine guns, as well as a 40mm automatic grenade launcher. Additionally, the vehicle can be fitted with medium-caliber weapon systems, including 20mm, 25mm, and 30mm cannons, along with high-caliber weapon systems like a 90mm cannon. Other armament options available for the Rabdan include mortar systems, anti-tank missiles, and air defense missile systems.
Protection
Armor Equipped with a modular add-on armor system, the vehicle offers flexible ballistic protection for its occupants. The Infantry Fighting Vehicle (IFV) provides enhanced defense against kinetic energy (KE) projectiles and fragments. It features 360-degree protection against improvised explosive devices (IEDs) at close range, superior mine protection for the wheels and underbelly, as well as protection against chemical, biological, radiological, and nuclear (CBRN) threats. Additionally, the vehicle is fitted with an automatic fire suppression system to extinguish and control any fires that may occur. It also includes a five-point seat belt harness to provide extra protection for the crew and troops.
Applique Armor Available
NBC Protection Yes
Smoke Equipment Yes
Details
Country of Origin United Arab Emirates
Category Land
Land
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7 m
Width
2.9 m
Height
2.46 m
Weight
22500 kg
Operators (1)
United Arab Emirates
