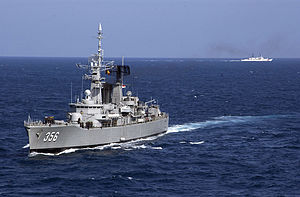

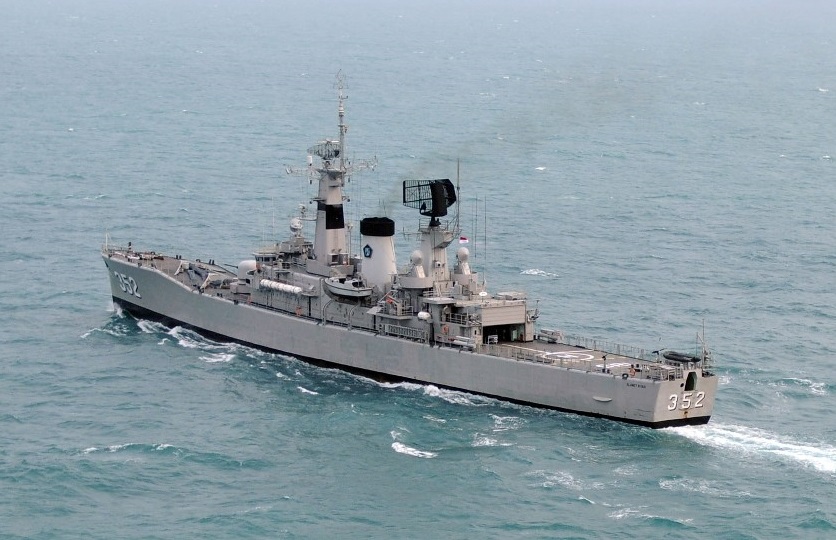

Ahmad Yani Class Indonesian Frigate

Ahmad Yani Class

Frigate

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Ahmad Yani Class Indonesian Frigate

Designation

Ahmad Yani Class

Alternate Designation

Ahmad Yani Class

Equipment Type

Frigate

Manufacturer

—

Date of Introduction

1963

Description

The Ahmad Yani-class of six general-purpose frigates were acquired by the Indonesian Navy in the 1980s. They were originally built in the Netherlands for the Royal Netherlands Navy as the Van Speijk-class and were licence-built versions of the British Leander-class

Naval & Littoral Specifications

Crew 180

Beam 12.50 m

Draft 4.57 m

Variants

AHMAD YANI Commissioned: 1987 Status: Active

SLAMET RIYADI Commissioned: 1967 Status: Active

YOS SUDARSO Commissioned: 1967 Status: Active

OSWALD SIHAAN Commissioned: 1967 Status: Active

ABDUL HALIM PERDANAKUSUMA Commissioned: 1967 Status: Active

KAREL SATSUITUBUN Commissioned: 1968 Status: Active

System

Alternative Designation Ahmad Yani Class

Type Frigate

Builder 351, 352 and 356: Netherlands Dok en Scheepsbouw Mij, Amsterdam, Netherlands 353, 354 and 355: Koninklijke Maatschappij de Schelde, Flushing, Netherlands

Crew 180 total

Note The Ahmad Yani-class of six general-purpose frigates were acquired by the Indonesian Navy in the 1980s. They were originally built in the Netherlands for the Royal Netherlands Navy as the Van Speijk-class and were licence-built versions of the British Leander-class

Dimensions

Length 113.38 m

Beam 12.50 m

Draft 4.57 m

Displacement, Standard 2,200 tons standard

Displacement, Full Load 2,850 tons full load

Propulsion System

Engine Name 2 x Caterpillar type 3616 diesels (except pendant 356: 2 Caterpillar type 3212 diesels and pendant 354: 2 SEMT-Pielstick type 12 PA6B diesels).

Engine Type Diesel

Engine Power 14,617 total bhp (except pendant 356: 12,512 total bhp and 14,000 total bhp)

Boilers 2 x Babcock & Wilcox 38.7 kg/sq cm, 450-deg Celsius

Maximum Range 4,500 nm at 12 knots

Maximum Speed 20 knots

Gun Weapon Systems

Gun Weapon System #1

Name 1 x OTO Melara

Type Naval Gun

Caliber 76mm

Barrel Length 4,724.4 mm

Weight 7.5 tons

Crew remote controlled

Elevation −15°/+85° speed: 35°/s (acceleration: 72°/s²)

Traverse 360°

Rate of Fire Compact: 85 rounds/min Super Rapid: 120 rounds/min

Muzzle Velocity 915 m/s

Maximum Firing Range HE-PFF 16,000 m SAPOMER 20,000 m VULCANO 40,000 m

Feed System Magazine capacity: 80 ready rounds on Compact gun mount

Gun Weapon Systems #1 Ammunition

Type Rifle

Caliber 76 mm

Shell 76×636mmR

Basic Load INA

Gun Weapon System #2

Name STK 50MG

Type Heavy Machine Gun

Caliber 12.7mm

Quantity 4 x STK 50MG 12.7mm Heavy Machine Guns

Length 1,778 mm

Barrel Length 1,143 mm

Width 190 mm

Weight 30 kg (66.14 lb) (complete gun assembly w/o feed chute and tripod adaptor)

Barrels Single barrel (progressive RH parabolic twist, 8 grooves)

Action Gas-operated, rotating bolt

Rate of Fire 400–600 rounds/min

Feed System Single sprocket Belt-fed with dual-feed chutes

Gun Weapon System #2 Ammunition

Type Rifle

Caliber 12.7mm

Cartridge 12.7×99mm NATO

Basic Load INA

Missile Weapon Systems

Missile #1

Note 2 x quad Harpoon SSM launchers [only two missiles per launcher usually carried] (believed to be time expired)

Missile #2

Note 2 x twin by Matra Simbad SAM launchers [unknown no. Mistral missiles carried]

Aviation Facilities

Helicopters 2 x Wasp (HAS-1) ASW helicopters

Torpedoes

Torpedo Tubes 2 x triple 324-mm (U.S. Mark 32) tubes [unknown no.U.S. Mark 46, Mod. 2 torpedoes carried]

Fire Control Systems

FCS Name INA

Computerized FCS Yes

Battle Management System INA

Radar Systems

Air Search Radar 1 x Thales LW-03 air search

Air/Surface Radar 1 x Thales DA-05/2 air/surface search

Navigation Radar 1 x Decca TM-1229C navigation

Main Gun System Radar 1 x Thales M-45 system for 76-mm guns

Gun Director 1 x Thales LIOD Mark 2 optronic gun director (354, 353 and 356 only)

Sonar Systems

Name 1 x Signaal CWE-610

Type Hull Mounted Sonar

Protection

Active Protection System INA

Countermeasures Yes

NBC Water Washdown System Yes

EW 1 x British UA-8 and 1 x UA-9 intercept

Image Sources

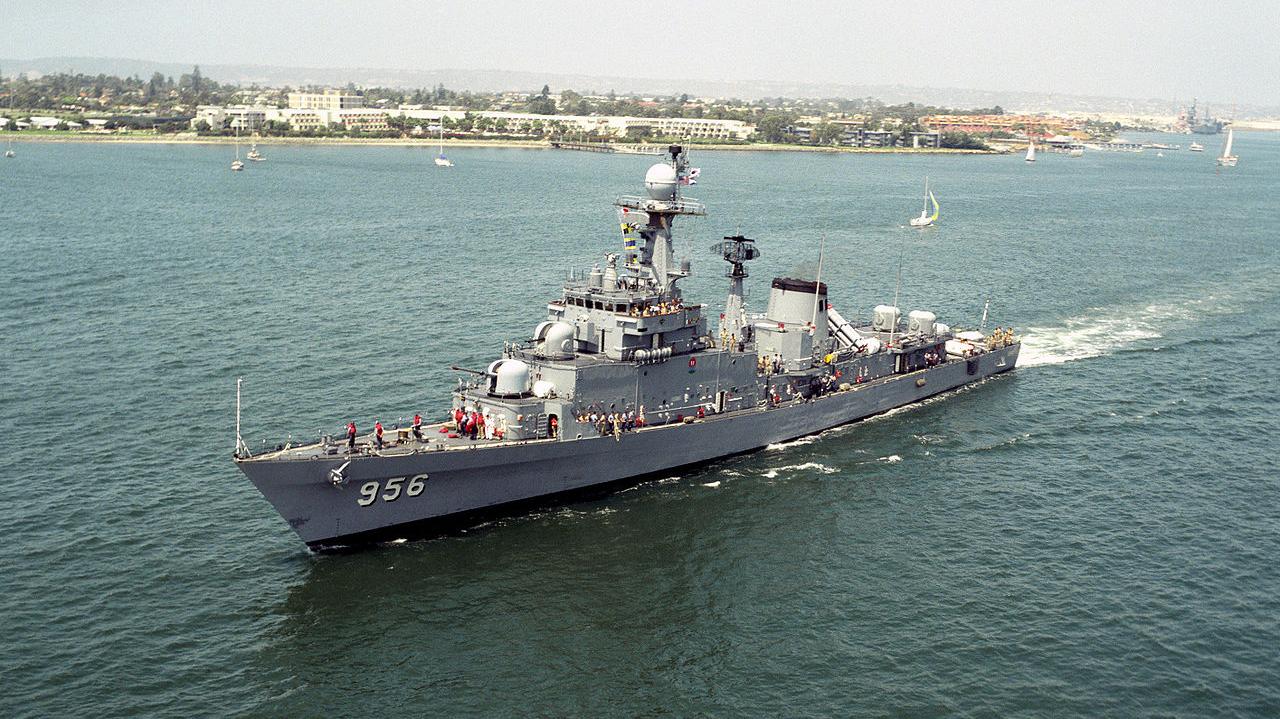

Notes https://en.wikipedia.org/wiki/Ahmad_Yani-class_frigate; https://en.m.wikipedia.org/wiki/File:Port_view_of_ROK_ship_Kyong_Buk_(FF_956)_near_San_Diego,_CA.jpeg; https://www.facebook.com/indonesiannavy.jalesvevajayamahe/?locale=sr_RS;

Details

Country of Origin Indonesia

Category Naval

Naval

Classification

Domain

Naval & Littoral

Equipment Status

Active

Dimensions

Length

113.38 m

Width

—

Height

—

Weight

—

Operators (1)

Indonesia
