PD-2 Ukrainian Fixed-Wing Unmanned Aerial Vehicle (UAV)
PD-2
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
PD-2 Ukrainian Fixed-Wing Unmanned Aerial Vehicle (UAV)
Designation
PD-2
Alternate Designation
PD-2
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Ukrspecsystems
Date of Introduction
2021
Description
The PD-2 Ukrainian Fixed-Wing Unmanned Aerial Vehicle (UAV) is a ready-to-fly versatile modular solution designed for the execution of various missions in a wide geographic range and approved by militaries for militaries. The system is packed with high-end technologies, AES 128/256 encryption, advanced payloads, and anti-jamming technologies. PD-2 UAS is well-suited for military use, border control, surveillance, power line inspections, aerial photography, agriculture, search and rescue, and public safety applications.
Air & Air Defense Specifications
Engine
Gasoline
Max Speed
140.0 km/h
Range
1100.0 km
Endurance
8.00 hrs
Service Ceiling
4500 m
Wingspan
5.00 m
System
Alternate Designation
PD-2
Type
Fixed-Wing Unmanned Aerial Vehicle (UAV)
Manufacturer
Ukrspecsystems
Autonomy
Semi-Autonomous
Crew
Unmanned
Standard Payload Capacity
7 kg
Maximum Payload Capacity
11 kg
Configurations
The PD-2 UAV was designed to change its configuration within 15 minutes with no tools required, depending on the mission factor. Rapidly change airframe configuration on the go wherever you are within 15 minutes. No tools are required.
You can change take-off and landing methods, wingspan, endurance, MTOW, and payload weight.
Configuration 1

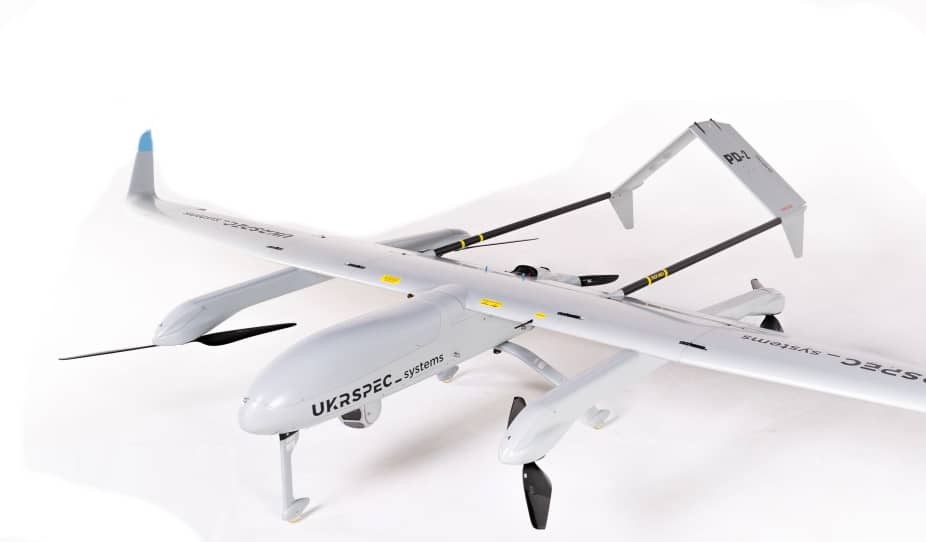

VTOL fixed-wing configuration
Configuration 2

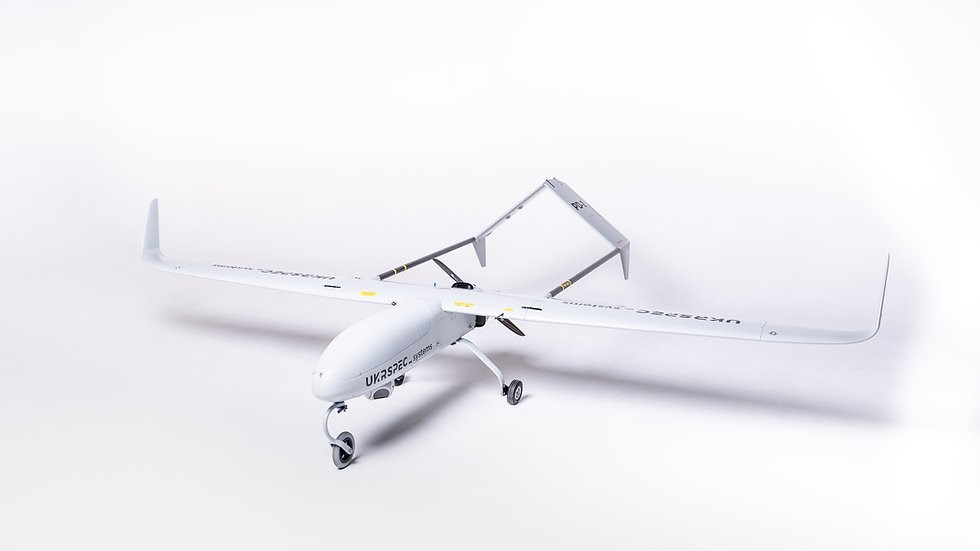

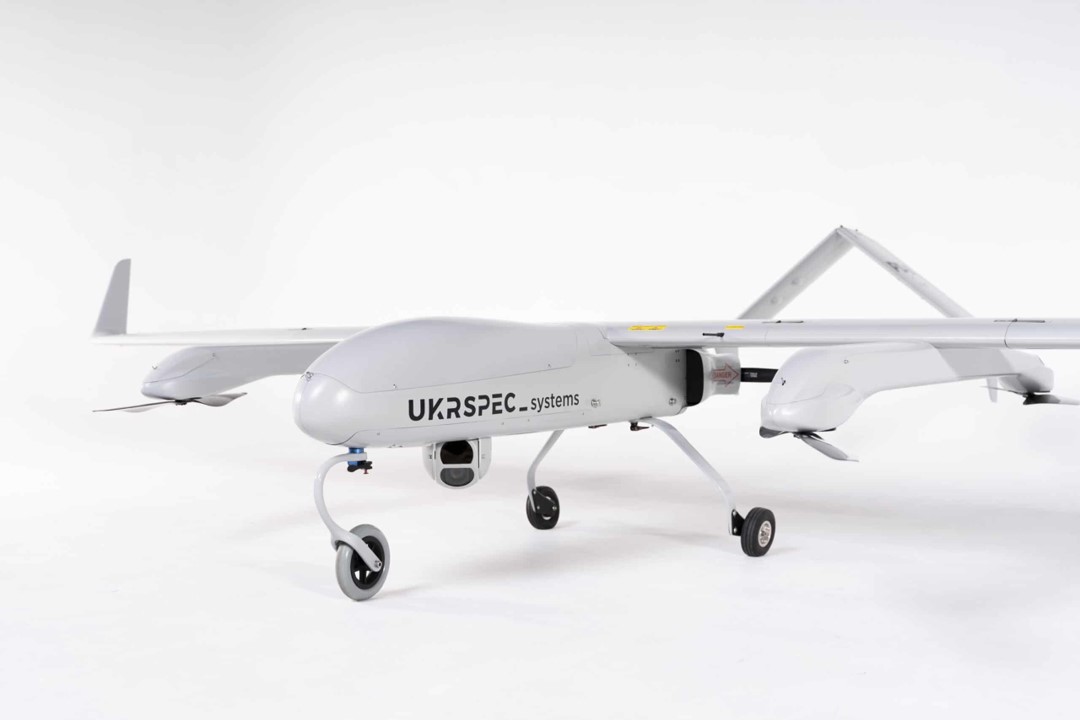

Conventional fixed-wing configuration
with chassis
Configuration 3
Conventional fixed-wing configuration
without chassis
Launching System
Vertical, using 4 electric motors. No runway needed, able to take-off
and land on a ship deck. Catapult launch and parachute recovery. No
runway or chassis is needed.
Recovery System
Vertical, using 4 electric motors. No runway needed, able to take-off
and land on a ship deck. Catapult launch and parachute recovery. No
runway or chassis is needed.
Ground Control Station
GCS has two laptops for easy integration wherever you need (truck, container, etc). If
the relief is flat and open it’s enough to use quadropod, once mission faces difficult
terrain motorized mast comes in hand. Ground control station automatically enables
frequency hopping in case of GNSS or signal loss. Moreover, there’s advanced
software, that ensures features mentioned above to work perfectly on-the-go with
no human intervention.
Payload Options
LiDAR, SAR, IMSI Cather, Radio Repeater
Dimensions
Length
INA
Wingspan
5 m
Height
INA
Maximum Takeoff Weight
55 kg
Automotive
Engine Name
4-stroke carburetor
Engine Type
Gasoline Engine
Engine Power
INA
Maximum Speed
140 km/h
Cruising Speed
100 km/h
Service Ceiling
4,500 m
Maximum Climbing Rate
3 m/2
Maximum Range
1,100 km
Endurance
8 hours
Communications
Radio Control Maximum Range
Encrypted Radio Communications Distance of 200 km. Standard communication configuration contains line of sight
ground control station, using radio connection. It has two
datalinks (the main one, used for video and telemetry exchange
within 200+ km range, and backup one, for telemetry only), with
the feature of automatic hopping between them in case of GNSS
or signal loss and AES-256 encryption.
3G/LTE communication
Data transmission is carried out using secure VPN
technologies using TLS, IPSec, PPTP, L2TP protocols. This
option allows you to establish communication with the
UAV without range restrictions, provided that the cellular
network coverage is stable. To ensure reliability, the
modem registers itself simultaneously in the networks
of two different operators of the cellular network and
automatically selects the best one.
SATCOM
Line of sight type links certainly have their limitations due
to range and weather interference. Satcom has historically
been perceived as BLOS communication system, ensuring
stable connection and data transmission at respective
ranges. Provides low radio signature due to a narrow
directional L-band antenna. Compatible with government
grade encryption and secure communications standards,
STU-IIIB, STE, TACLANE, KIV-7 and BRENT.
Details
Country of Origin
Ukraine
Category
UAVs
Air > UAVs
Filter Label
P
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
5 m
Height
—
Weight
55 kg
Operators (1)
Ukraine
