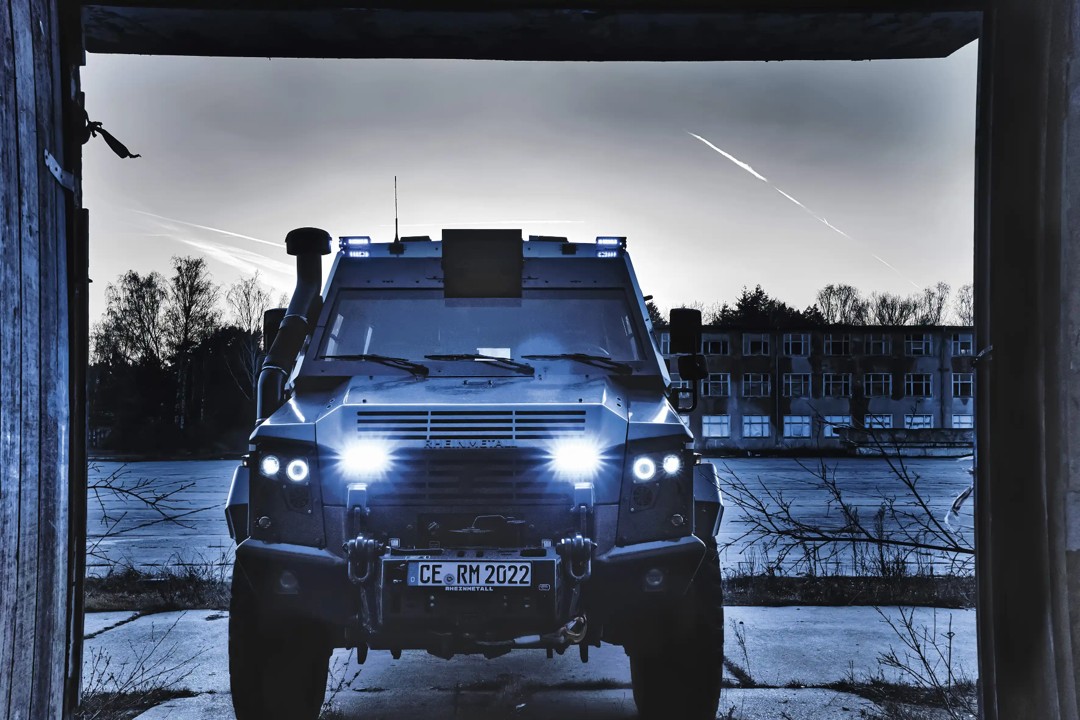

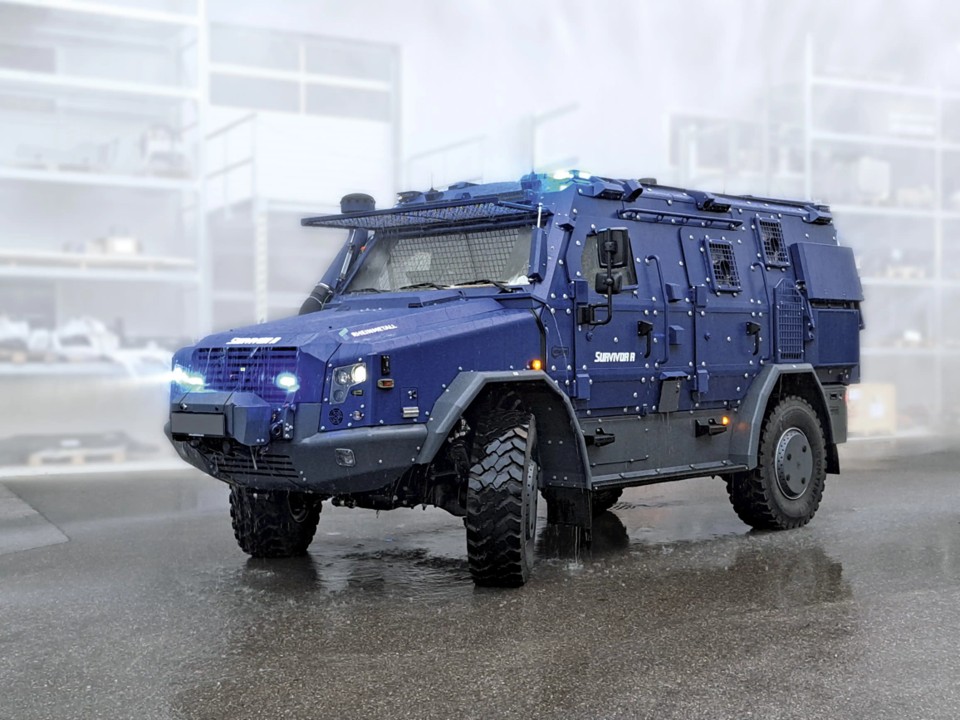

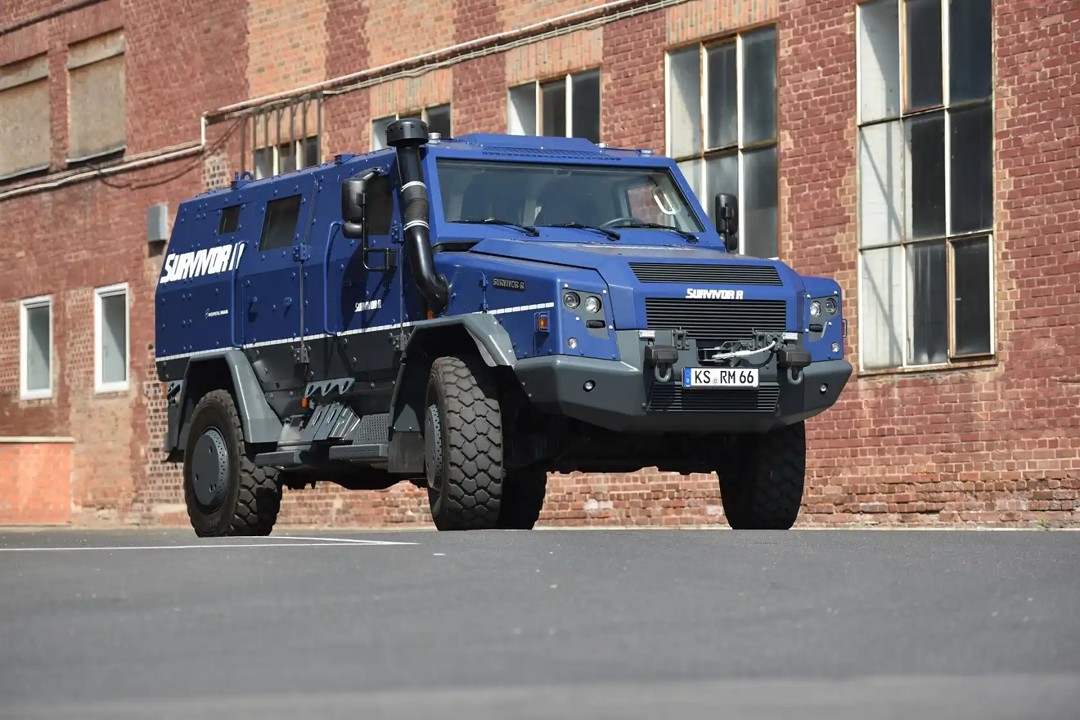

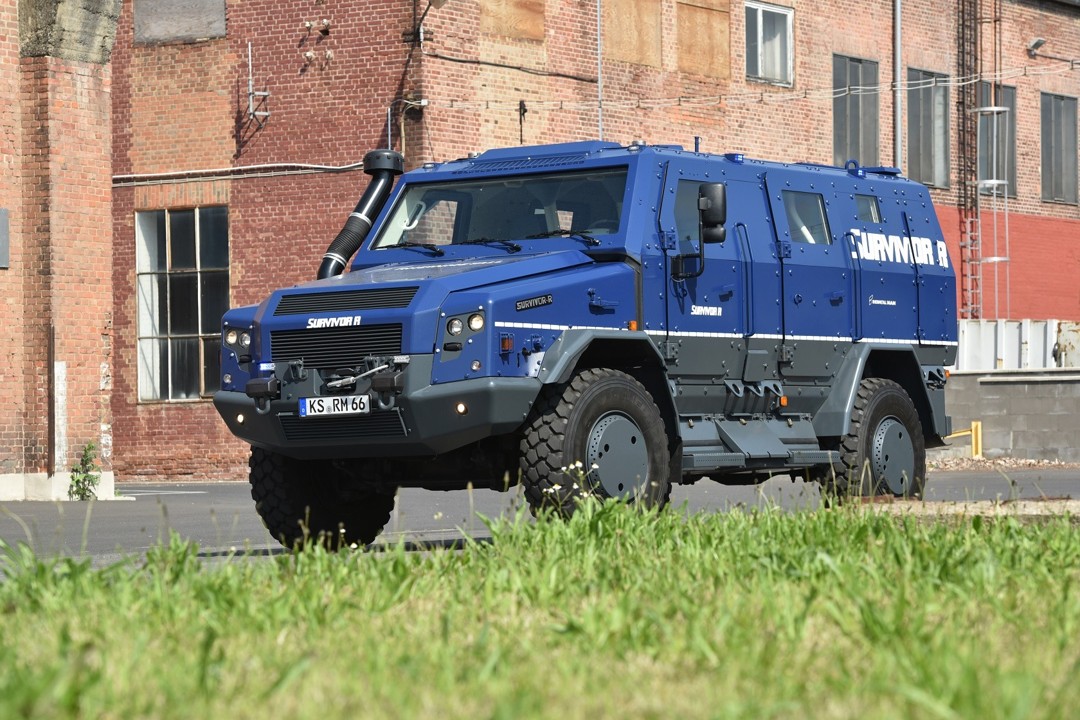

Survivor R German 4x4 Armored Wheeled Vehicle
Survivor R
Wheeled Armored Vehicle
Other
Basic Information
Name
Survivor R German 4x4 Armored Wheeled Vehicle
Designation
Survivor R
Alternate Designation
Survivor R
Equipment Type
Wheeled Armored Vehicle
Manufacturer
Rheinmetall
Date of Introduction
2017
Description
The Survivor R German 4x4 Armored Wheeled Vehicle is a protected multirole platform based on the commercially proven MAN TGM truck chassis, combining military-grade protection with operational flexibility. he platform leverages commercial off-the-shelf (COTS) components to reduce lifecycle costs and maintenance complexity while leveraging the Rheinmetall/MAN global service network. Its modular design enables rapid configuration changes for mission-specific requirements, and its aeronautical compatibility allows transport in C-130 Hercules aircraft. The Survivor R represents a mature balance between protected mobility and operational flexibility for both military and law enforcement applications across European procurement.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Engine
6.9-liter MAN six-cylinder diesel (330 hp)
NBC Protection
Yes
Max Speed
100.0 km/h
Range
800.0 km
Variants
CBRN Reconnaissance
Equipped with automated nuclear radiation detectors, chemical agent sensors, remote standoff detection capability, and sampling equipment for soil and water analysis. Real-time data transmission to command elements.
Police/Law Enforcement

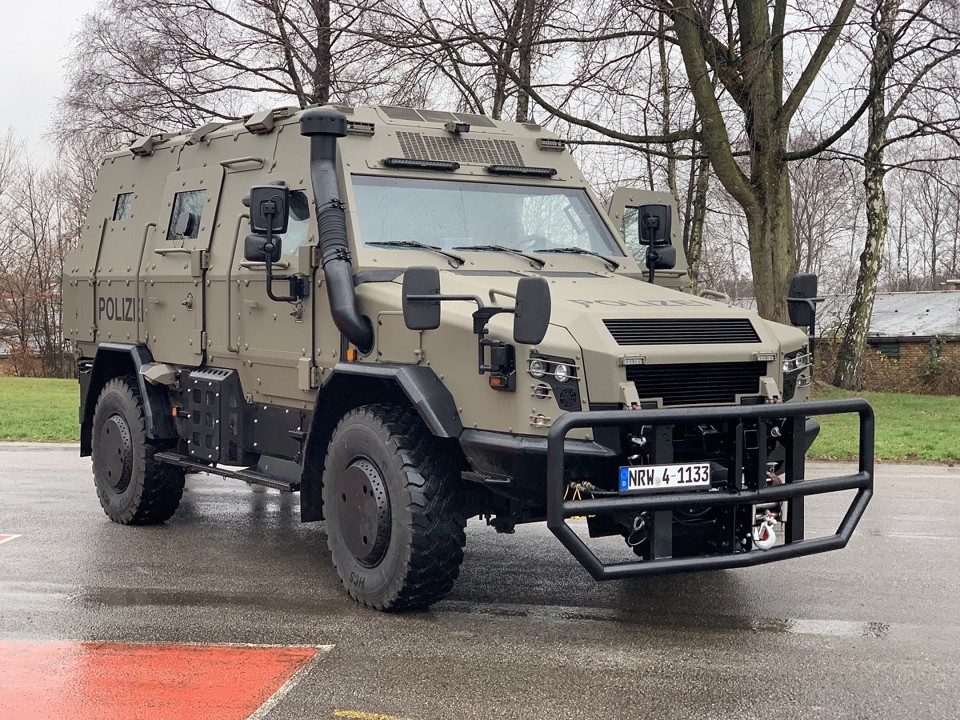

Configured with riot control systems, dozer blade, smoke/tear gas launchers, and internal weapon stations. Currently in service with German Federal Police and state-level forces as the "SONDERWAGEN 5," replacing the 35-year-old SONDERWAGEN 4.
Counter-UAS (C-UAS)
Features 3D ASEA search radar with 360° coverage, electro-optical verifiers, passive emitter locators, and LIDAR integration paired with the Skymaster command system for threat neutralization.
System
Alternative Designation
Survivor R
Type
Armored Wheeled Vehicle
Manufacturer
Rheinmetall
Configuration
4x4
Crew
2 ea
Passengers
8 ea
Payload Capacity
4,000-5,000 kg
Dimensions
Length
6.5 m
Width
2.5 m
Height
2.7 m
Weight, Combat
15,000-17,500 kg
Automotive
Engine Name
MAN
Engine Type
6.9-liter MAN six-cylinder diesel
Engine Power
330 hp
Maximum Range
800 km
Maximum Speed
100 km/h
Amphibious
No
Gradient
60%
Side Slope
INA
Vertical Step
INA
Trench
INA
Fording
800 mm
Main Weapon System
Note
INA
Protection
Armor
Hardened steel with optional ceramic composite up-armor. Ballistic protection against 7.62mm rifle fire and 5.56mm rounds. Laminated bulletproof windows matching hull protection levels.
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
Germany
Category
Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.5 m
Width
2.5 m
Height
2.7 m
Weight
15000 kg
Operators (2)
Germany
Austria
