Svetlyak Class (Project 10410 Svetlyak Class) Russian Patrol Boat
Svetlyak Class
Patrol Boat
Other
Basic Information
Name
Svetlyak Class (Project 10410 Svetlyak Class) Russian Patrol Boat
Designation
Svetlyak Class
Alternate Designation
Svetlyak Class; Project 10410 Svetlyak Class
Equipment Type
Patrol Boat
Manufacturer
—
Date of Introduction
1988
Description

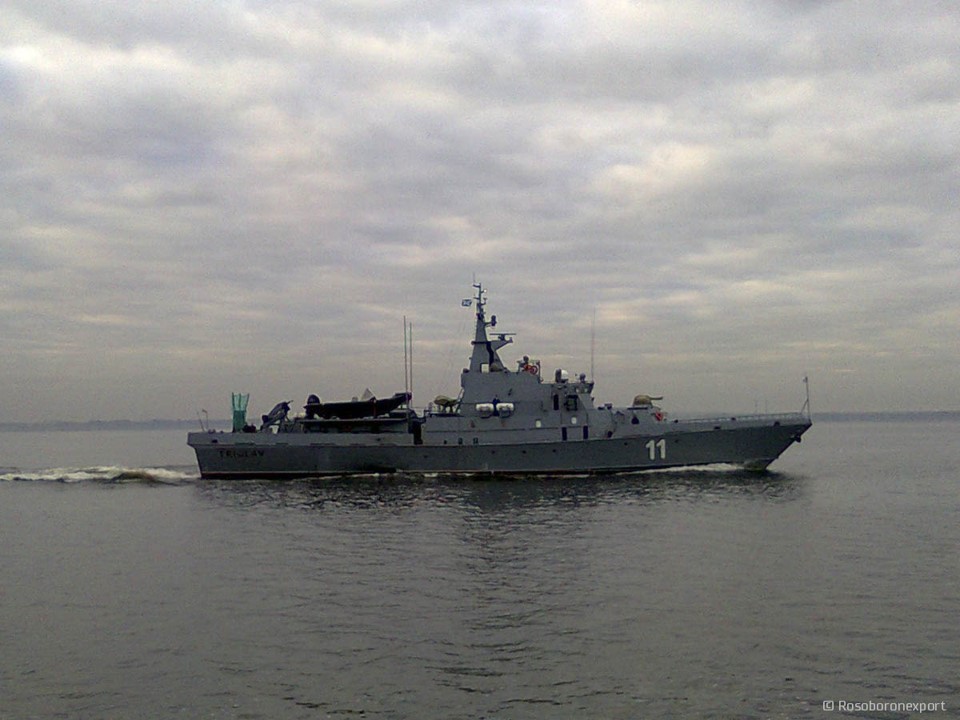

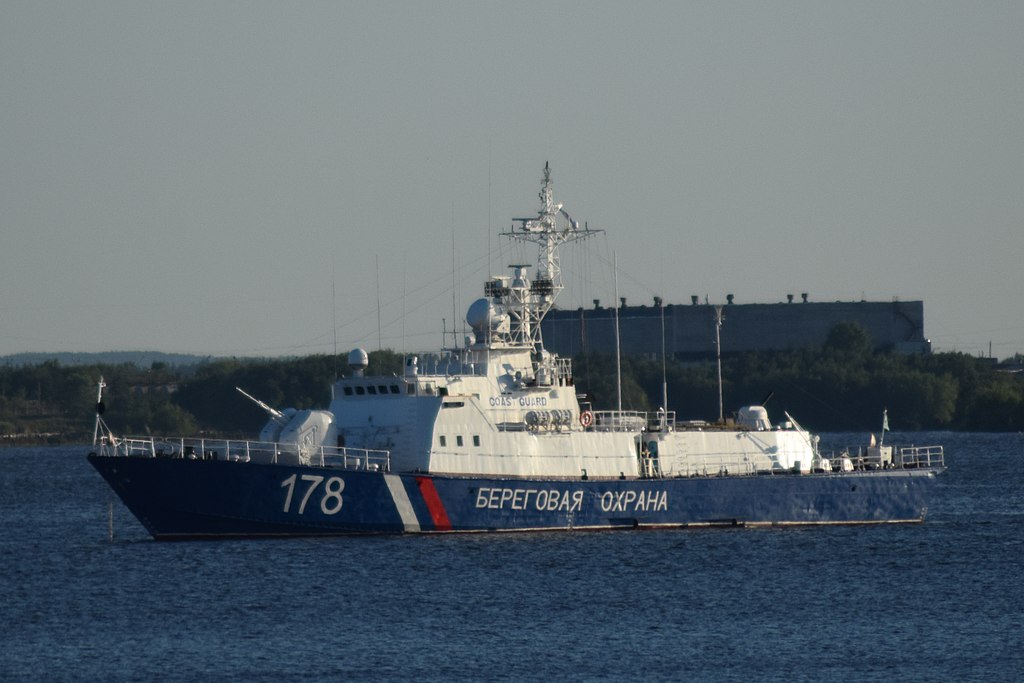

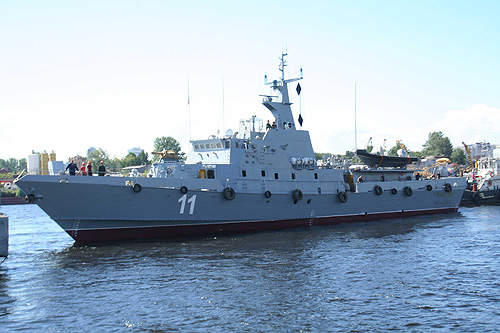

The Svetlyak class, Russian designation Project 10410 Svetlyak, is a class of patrol boats designed and built in the Soviet Union and later in Russia, and currently being used primarily by the Russian Navy and Russian Coast Guard. The patrol boats of the class are designed to carry out a variety of missions, from patrol missions to prevent violations of the maritime state border, to protect friendly vessels and facilities from the enemy surface and air attacks. The patrol boats are constructed with a steel hull and aluminum superstructure. The boats have NBC warfare protection and can survive with two compartments flooded. The patrol boat engine room is coated with a vibration-damping material.
Naval & Littoral Specifications
Crew
28
Beam
9.20 m
Draft
2.40 m
Variants
KIZLAR
Commissioned: Dec. 23, 1997
PSKR-922
Commissioned: June 12, 2000
PSKR-914
Commissioned: 1991
SYKTYVKAR
Commissioned: Nov. 22, 1995
NEVEL'SK
Commissioned: 1992
YUZHNO-SAKHALINSK
Commissioned: Oct. 22, 1994
SOCHI
Commissioned: Feb. 8, 1992
PODOL'SK
Commissioned: March 25, 1993
NEPTUN
Commissioned: July 28, 1995
PSKR-908
Commissioned:1991
PSKR-907
Commissioned: 1990
DERBENT
Commissioned:1995
KHOLMSK
Commissioned:1989
STAVROPOL'
Commissioned: April 1, 1990
KIZLYAR
Commissioned: Dec. 23, 1997
ANATOLIY KOROLYOV
Commissioned: 1994
RASUL GAMZATOV
Commissioned:1991
BRIZ
Commissioned:Dec. 10, 1992
PSKR-916
Commissioned: 1994
VYBORG
Commissioned:July 31, 1992
ALMAZ
Commissioned: Oct. 15, 1993
PSKR-904
Commissioned: April 9, 1989
PSKR-923
Commissioned:2003
VALENTIN PIKUL'
Commissioned: June 25, 2001
PSKR-927
Commissioned: INA
PSKR-928
Commissioned:Dec. 15, 2007
PSKR-929
Commissioned: April 21, 2010
System
Alternative Designation
Svetlyak Class; Project 10410 Svetlyak Class
Type
Patrol Boat
Builder
PSKR-909, -912, -913, -917, -919/921, -924, -925 and PSKR-927: Sudostroitel'noye Obyedineniye "Almaz," Petrovskiy Shipyard, St. Petersburg, Russia
PSKR-902, -905/906, -910/911, -916, -928 plus one other unit: Yaroslavskiy Shipbuilding, Yaroslavl, Russia
Crew
28 total (4 off. + 24 enl.)
Dimensions
Length
49.50 m
Beam
9.20 m
Draft
2.40 m
Displacement, Standard
333 tons
Displacement, Full Load
381 tons
Propulsion System
Engine Name
3 x Zvezda M-520B
Engine Type
Diesel
Engine Power
16,200 total bhp
Maximum Range
2,200 nm at 12-13 knots; 1,500 nm at 12 knots
Maximum Speed
32 knots
Gun Weapon Systems
Gun Weapon System #1
Name
1 × AK-176M Naval Gun
Type
Naval Gun
Caliber
76.2 mm
Crew
2 (4 in manual control mode)
Length
4,484 mm
Weight
16,800 kg
Fire Control System
R-123-02, television targeting and a laser rangefinder
Barrels
1
Recoil
380 to 500 mm
Elevation
-15° to +85°
Traverse
±175°
Rate of Fire
120 rds/min
Muzzle Velocity
980 m/s
Maximum Firing Range
15.5 km
Effective Firing Range
10
Feed System
152 ready to fire rounds
Gun Weapon Systems #1 Ammunition
Type
Rifle
Caliber
76.2 mm
Shell Weight
12.4 kg
Basic Load
2,000 Rounds
Gun Weapon System #2
Name
1 x AK-630m 30mm CIWS
Type
Close-in Weapon System (CIWS)
Caliber
30 mm
Main Armament
1 or 2 AO-18 autocannons
Secondary Armament
4 x 4 9A4172 missiles
Crew
1
Barrel Length
1,629 mm
Width
1,240 mm
Height
1,070 mm
Gun Mount Weight
1,000 kg
Barrels
6 ea
Action
Gas-operated rotary cannon
Elevation
+88° ... -12° (50°/sec)
Traverse
±180° (70°/sec)
Rate of Fire
4,000–5,000 rounds/min
Muzzle Velocity
880–900 m/s
Maximum Firing Range
the projectiles self-destruct past 5,000 m
Feed System
2,000 rounds (additional 1,000 rounds in reserve feed bin
Sights
Radar / TV-optical
Gun Weapon Systems #2 Ammunition
Type
Rifle
Caliber
30 mm
Shell
HEI-Frag, Frag-T
Shell Weight
0.39 kg
Basic Load
3,000 Rounds
Missile Weapon System
Missile #1
Name
2 x Igla-1M shoulder-launched SAM missile systems
Type
Surface-to-Air Missile (SAM)
Basic Load
16 Missile Carried
ASW Weapon System
ASW Tubes
2 fixed 400-mm OTA-40-204A ASW tubes [4 SET-40 torpedoes carried]
Depth Charge Racks
2 depth charge racks [12 total BB-1 depth charges carried]
Fire Control Systems
FCS Name
1 x MR-123 Vympel-A (Bass Tilt)
Computerized FCS
Yes
Battle Management System
INA
Radar Systems
Surface Search / Navigation Radar
1 Reyd (Peel Cone**) surface search/navigation and/or 1 Mius (Spin Trough**) surface search/navigation
Gun Fire Control Radar
1 x MR-123 Vympel-A (Bass Tilt) for guns
Ringsight Backup Director Radar
1 x SP-521 Rakurs (Kolonka-2) ringsight backup director
Sonar Systems
Name
1 x MG-349 Uzh high-frequency helicopter dipping sonar
Protection
Hull Armor
INA
Countermeasures
2 x 16-tubed PK-16 decoy rocket launchers
NBC Water Washdown System
Yes
Details
Country of Origin
Russia
Category
Naval
Naval
Filter Label
S
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
49.5 m
Width
—
Height
—
Weight
—
Operators (2)
Russia
Vietnam
