VN4 Chinese 4x4 Light Armored Vehicle
VN4
Light Multi-Role Armored Vehicle
Other
Basic Information
Name
VN4 Chinese 4x4 Light Armored Vehicle
Designation
VN4
Alternate Designation
VN4
Equipment Type
Light Multi-Role Armored Vehicle
Manufacturer
NORINCO
Date of Introduction
2012
Description

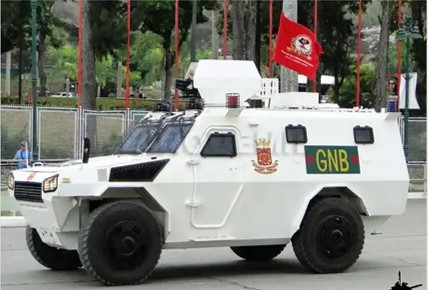

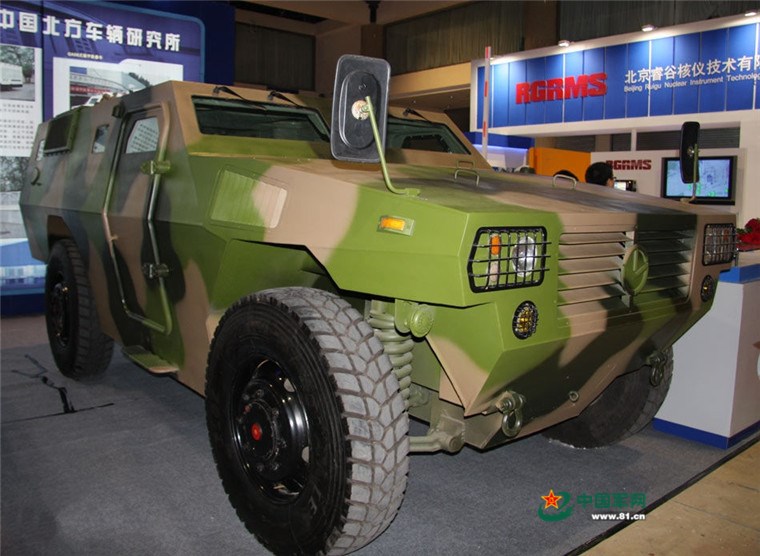

The VN4 Chinese 4x4 Light Armored Vehicle is a light armored patrol vehicle developed and manufactured by China North Industries Corporation (Norinco). It is intended for use with border forces and internal security operations and is able to carry a variety of weapon systems to achieve its goals. The VN4 joins the growing family of LAVs from Norinco and since the vehicle was first revealed, it has attracted multiple export orders.
Ground Specifications
Crew
2
Engine
6-Cylinder Turbocharged Diesel (235 hp)
NBC Protection
Yes
Max Speed
115.0 km/h
Range
700.0 km
System
Alternative Designation
VN4
Type
Light Armored Vehicle
Manufacturer
NORINCO
Configuration
4x4
Crew
2 ea
Passengers
8 ea
Dimensions
Length
5.40 m
Width
2.40 m
Height
2.05 m
Weight, Combat
9,000 kg
Automotive
Engine Name
Cummins
Engine Type
6 cylinders, turbocharged, water-cooled, diesel
Engine Power
235 hp
Power-to-Weight Ratio
25.77 hp/t
Maximum Range
700 km
Maximum Speed
115 km/h
Amphibious
No
Gradient
60%
Side Slope
40%
Vertical Step
0.40 m
Trench
0.80 m
Fording
INA
Main Weapon System
Note

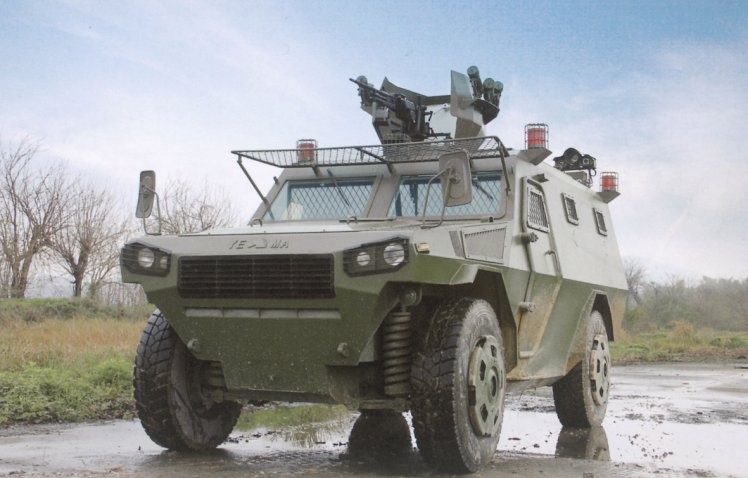

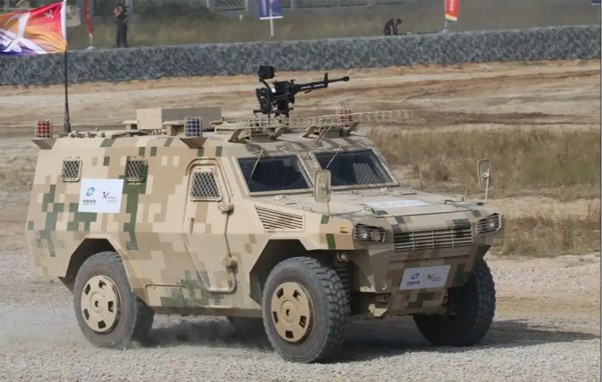

The VN4 is fitted with an open-roof small turret mounted at front top hull armed with a 12.7mm heavy machine gun.
Protection
Armor
The hull of the VN4 is made in all-welded steel armor plates which provides a protection for the crew against firing of small arms and shell splinters. On entry door is available on each side at the front of the hull and one large door at the rear. Two small bulletproof windows are fitted on each side of the hull with firing port.
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
3 x
Details
Country of Origin
China
Category
Wheeled Light Armored Vehicles
Land > Infantry Vehicles > Wheeled Light Armored Vehicles
Filter Label
V
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.4 m
Width
2.4 m
Height
2.05 m
Weight
9000 kg
Operators (4)
China
Cambodia
Kenya
Venezuela
