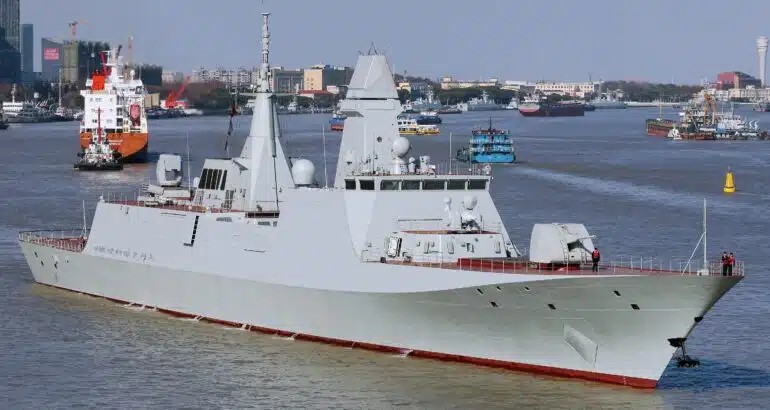

Type 054B Class (Jiangkai III Class) Chinese Frigate
Type 054B Class
Frigate
Other
Basic Information
Name
Type 054B Class (Jiangkai III Class) Chinese Frigate
Designation
Type 054B Class
Alternate Designation
Type 054B Class; Jiangkai III Class
Equipment Type
Frigate
Manufacturer
Hudong-Zhonghua Shipyard, Shanghai; Huangpu-Wenchong Changzhou, Guangzhou
Date of Introduction
2025
Description
Type 054B Class (Jiangkai III Class) Chinese Frigate is approximately 50% larger in displacement terms than the preceding Type 054A and features a number of differences in weapon and sensor fit. The main gun is assessed to be a a 100 mm mount (vice 76 mm) and while the 32-cell VLS forward has been retained, it is possible that this is now of the same universal type as fitted to the Luyang III and Renhai classes. The two midships CIWS systems fitted to the Type 054A have been replaced by a single CIWS forward of the superstructure and a 24-cell launcher for HQ-10 point defence missiles above the hangar.
Naval & Littoral Specifications
Beam
18.50 m
Draft
6.80 m
Variants
Luohe
Commissioned: 2025
Status: Active
Qinzhou
Commissioned: INA
Status: Building
System
Alternative Designation
Type 054B Class; Jiangkai III Class
Type
Frigate
Builder
Louche (Hudong-Zhonghua Shipyard, Shanghai); Quinzhou (Huangpu-Wenchong Changzhou, Guangzhou)
Crew
INA
Dimensions
Length
147.0 m
Height
INA
Beam
18.5 m
Draft
6.8 m
Displacement, Standard
INA
Displacement, Full Load
6,000 tons
Propulsion System
Engine Name
INA
Engine Type
Combined Diesel and Gas CODAG
Engine Power
INA
Maximum Range
INA
Maximum Speed
INA
Main Weapon System
Combat Data Systems
To be announced.
Weapon Control Systems
To be announced.
Electro-Optic Systems
1 x optronic director; 2 x EO/IR surveillance systems.
Missile System
Surface-to-Surface Missile (SSM)
8 x YJ-83 (CSS-N-8 Saccade) (2 quad); inertial guidance and active radar terminal homing to 180 km (97.2 n miles) at Mach 0.9; warhead 165 or 190 kg; sea-skimmer.
Surface-to-Air Missiles (SAM)
HHQ-16; inertial guidance with command updates and semi-active radar terminal homing 40 km (21.6 n miles) at Mach 4.5; warhead 70 kg. Fired from VLS. 1 x HHQ-10 24-cell launcher; 24 x HHQ-10 missiles; passive IR/anti-radiation homing to 9 km (4.9 n miles).
Anti-Submarine Missile
CY-5/Yu-8 rocket-assisted ASW weapon; missile range 30 km (16.2 n miles) at at Mach 0.9; payload Yu-11. Fired from VLS.
Gun System
Guns
1 x H/PJ87A 100 mm/56; 25 rds/min to 22 km (11.9 n miles); weight of shell 15.6 kg. 1 H/PJ11 (Type 1130) 30 mm; 11 barrels per mounting; 10,000 rds/min combined to 4 km (2.2 n miles); on-mount H/LJP-349 search-and-track radar and optronic director.
Torpedo System
Torpedo Tubes
6 x 324 mm Type 7424 (2 triple) tubes.
Torpedoes
Yu-7 or Yu-11; active/passive homing to 30 km (16.2 n miles) at 26 kt; 11 km (5.9 n miles) at 50 kt; thermal; warhead 45 kg; depth to 600 m (est).
Anti-Submarine Mortars
To be announced.
Radar Systems
Air/Surface Search Radar
1 x unknown dual-face rotating radar; E/F-band. 1 unknown dual-face rotating radar; I-band.
Surface Search/Navigation Radar
1 I-band.
Fire Control Radar
1 x H/LJP-344A; I-band (for 100 mm); I-band. 1 unknown fire-control radar; 4 fixed-face panels. 1 H/LJP-349; I-band (on Type 1130 CIWS).
Note
The sensor fit remains to be confirmed. Initial assessment of imagery indicates a rotating two-faced active electronically scanned array (AESA) radar as well as integrated phased-array radar panels on the main mast plus a smaller rotating radar inside the aft mast.
Sonar System
Sonar
To be announced. Expected to include 1 x hull mounted, 1 x passive towed array, and 1 x active variable-depth sonar.
Aviation
Note
Aviation facilities assessed to have been enhanced to accommodate the larger and more capable Z-20F helicopter rather than the Z-9C seen on Type 054A frigates.
Protection
Hull
INA
Physical Countermeasures
2 x 18 barrelled trainable launchers; IR flares and chaff. Towed torpedo decoy.
Electronic Countermeasures
Variants of a Type 751-1 ESM and Type 726-3 ECM.
NBC Water Washdown System
Yes
Details
Country of Origin
China
Category
Naval
Naval
Filter Label
T
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
147 m
Width
18.5 m
Height
—
Weight
6000000 kg
Operators (1)
China
