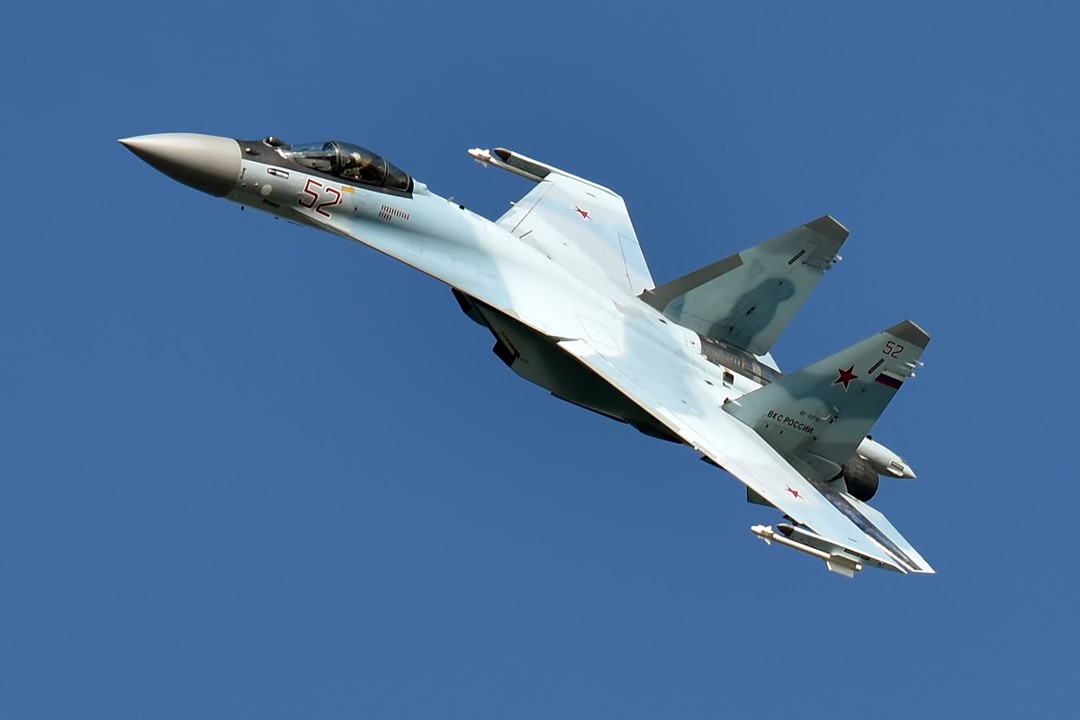

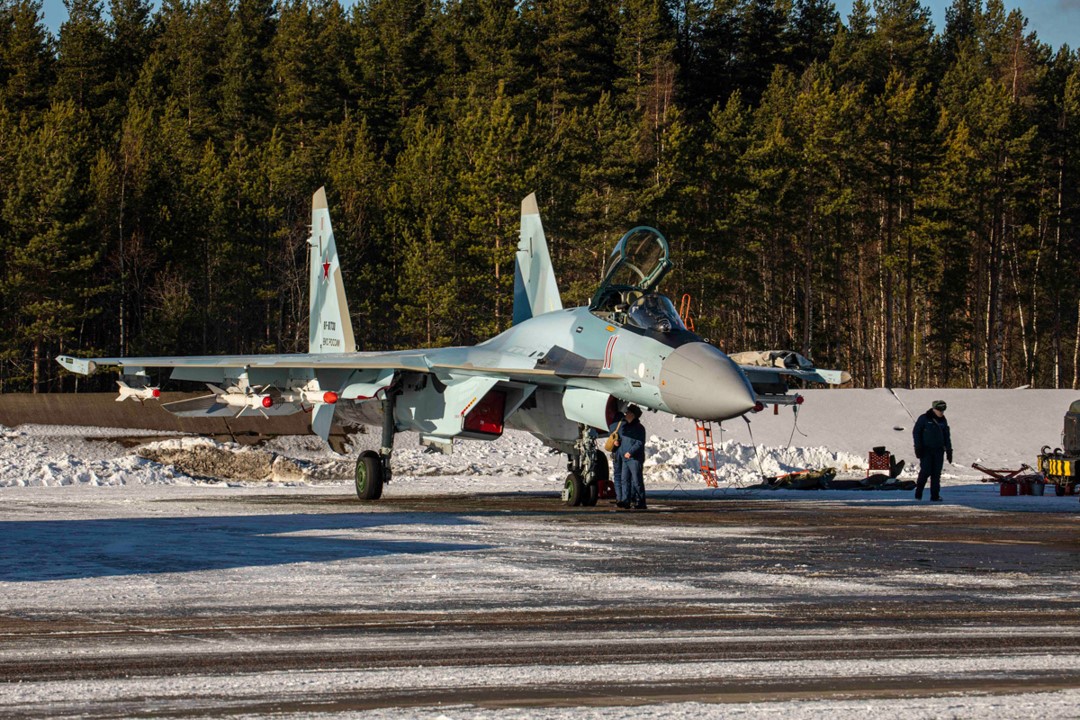

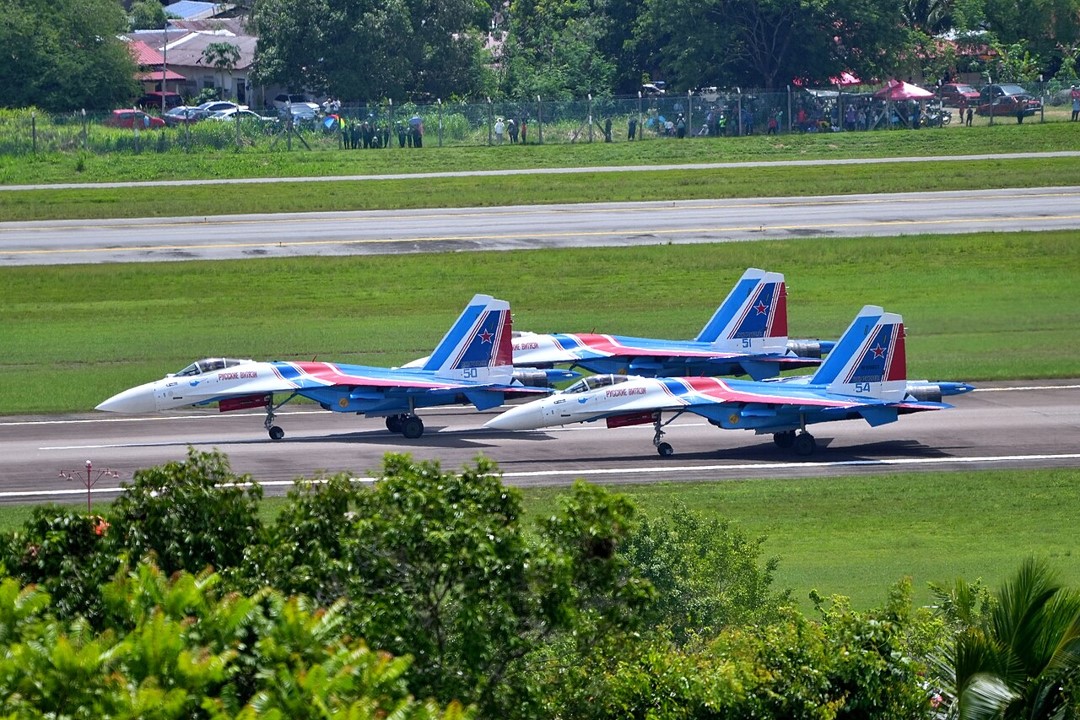

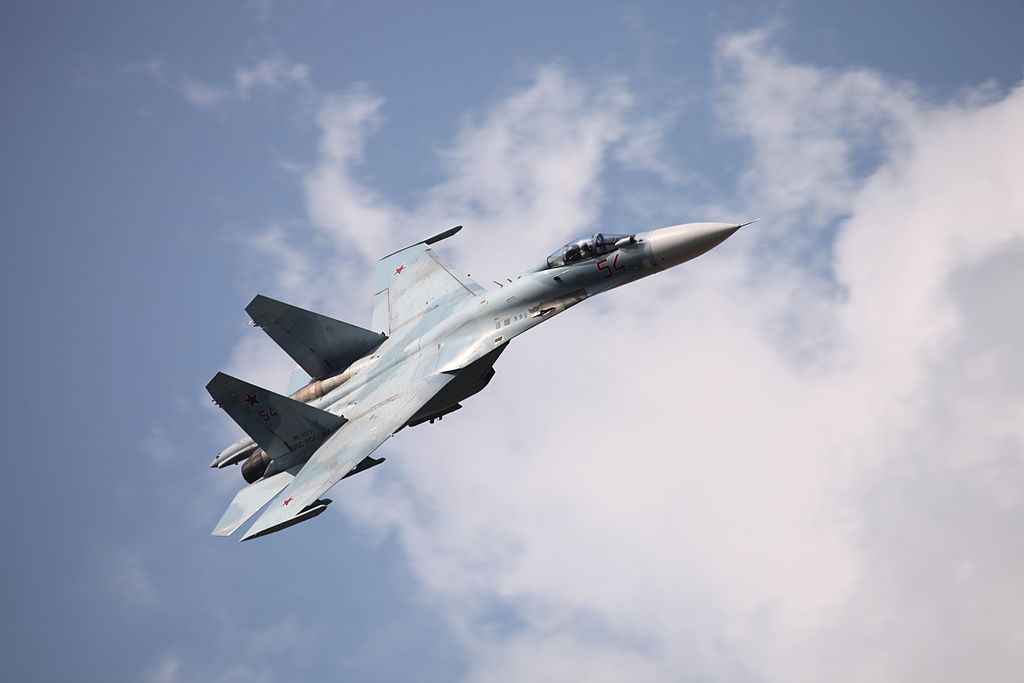

SU-35S (Flanker-M) Russian Air Superiority Fighter

SU-35S

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

SU-35S (Flanker-M) Russian Air Superiority Fighter

Designation

SU-35S

Alternate Designation

—

Equipment Type

—

Manufacturer

United Aircraft Corporation (for Su-35S)

Date of Introduction

2014

Description

The SU-35S (Flanker-M) Russian Air Superiority Fighter is the main production variant as delivered to Russia and China. Previously known as Su-35BM. Primarily air superiority fighter, but with secondary air-to-ground capability.

Air & Air Defense Specifications

Crew 1

Engine Turbofan (142 hp)

Max Speed 1290.0 km/h

Range 853.0 km

Service Ceiling 18000 m

Hardpoints 12

Variants

Su-35 Fighter, Prototype, no longer in development/trials.

Su-35UB Trainer, No longer known to be in production or service

Su-37 Developmental, Prototype, no longer in development/trials.

System

Alternate Designation(s) SU-35S; NATO: Flanker-M

Primary Function / Type Air Superiority Fighter

Manufacturer United Aircraft Corporation (for Su-35S)

Crew 1 ea

Number of Engines 2 ea

Airframe Higher proportion of carbon fibre and aluminium-lithium alloy in fuselage; composites used for components such as leading-edge flaps, nosewheel door, and radomes.

Controls Four-channel analogue fly-by-wire, with no mechanical back-up; artificial feel; relaxed longitudinal stability; full-span leading-edge flaps and plain inboard flaperons controlled manually for take-off and landing, computer-controlled in flight; no ailerons; differential/collective tailerons operate in conjunction with flaperons and rudders for pitch and roll control, with maximum deflections +15/-20°; flight control system limits g loading to +9 and normally limits angle of attack to 30–35°; angle-of-attack limiter can be overruled manually for certain flight manoeuvres; large door-type airbrake in top of centre-fuselage.

Display and Instrumentation Two side-by-side LCDs, each 381 mm (15 inch) and IKSh-1M wide angle collimator head-up display (20×30° view) and control display unit.

Communications Polet S-108 VHF/UHF radios with voice encryption. IUS-35 data exchange terminal incorporating twin RPKS BAGET-31M computers; automatic data exchange on radio links.

Avionics Twin BINS-SP-2 strapdown inertial/Glonass (GPS) navigation with digital map. RSBN-85V short-range radio navigation; VND-94 and VIM-95 international navigation; ARK-25 course director.

Radar Tikhmirov NIIP N135E Irbis-E multifunction phased-array system (Bars derivative), comprising phased element scanning 60° sectors in azimuth and elevation, while hydraulic actuator provides additional 60° in azimuth and 120° in bank; effective azimuth thus 120°. Simultaneous aerial 30-target tracking and two-target engagement capability with semi-active radar homing missiles or eight targets with active radar AAMs; of these, four targets can be at some 162 n miles (300 km; 186 miles). Ground modes include terrain mapping, Doppler beam sharpening, and synthetic aperture. Four-target tracking and two simultaneous attack in ground mode. “Terrain following flight support”. Range up to 216 n miles (400 km; 249 miles) against 3 m2 aerial target.

Number of Hard Points 12 hardpoints, consisting of 2 wingtip rails, and 10 wing and fuselage stations with a capacity of 8,000 kg (17,630 lb) of ordnance.

Maximum Payload 8,000 kg (17,636 lb) [combat]

Landing Gear Hydraulically retractable tricycle type, made by Hydromash; mainwheels turn 90° while retracting forward into wingroots; hydraulically steerable non-braking, twin nosewheels also retract forward. Mainwheel tyres 1030×350; nosewheel tyres 620×180; braking parachute in tailcone.

Dimensions

Length 21.90 m

Height 5.90 m

Wing Span 15.30 m (50 ft 2¼ in) [over ECM pods]; 14.70 m (48 ft 2¾ in) [clean]

Wing Aspect Ratio 3.5

Gross Wing Area 62.04 m² (667.8 sq ft)

Empty Weight 17,000 kg (37,478 lb)

Maximum Take-Off Weight 34,500 kg (76,059 lb); 25,300 kg (55,776 lb) [normal]

Maximum Fuel Weight 11,500 kg (25,353 lb) [internal]; 3,200 kg (7,054 lb) [external]

Automotive

Engine Name 2 x Saturn/UFA AL-41F-1S

Engine Type Turbofans

Engine Power each 142.2 kN (31,970 lb st) with afterburning, 86.3 kN (19,400 lb st) dry

Maximum Speed 1,290 kt (2,390 km/h; 1,485 mph) at 11,000 m (36,089 ft)

Maximum Range 853 n miles (1,579 km; 981 miles) [max fuel,]; 944 n miles (1,748 km; 1,086 miles) [ferry, max fuel, with two external tanks at optimum cruise]; 2,429 n miles (4,498 km; 2,795 miles) [ferry, max fuel, with two external tanks]

Rate of Climb 16,800 m/min (55,118 ft/min) [max, at S/L]

G Limits +9

Service Ceiling 18,000 m (59,060 ft)

Take-Off Run 450 m (1,477 ft) [at normal weight]

Landing Run 700 m (2,297 ft) [with parachute]

Armament

Hardpoints 12 hardpoints, consisting of 2 wingtip rails, and 10 wing and fuselage stations with a capacity of 8,000 kg (17,630 lb) of ordnance.

Guided Weapon Systems

Air-to-Air Missile Five RVV-BD [1, 3, 4, 11, 12]; four R-27P1(EP1) [3, 4, 11, 12]; 12 RVV-SD [two 1, two 2, 3, 4, 5, 6, 11, 12]; six RVV-MD [3, 4, 5, 6, 7, 8]. R-37M long range missile (unknown quantity) carriage and release trials on performed in 2020–21.

Air-to-Surface Missile five Kh-59MK [1, 3, 4, 5, 6]; six Kh-31PD, or Kh-31A or Kh-38MLE, MTE, MKE, MAE [all 3, 4, 5, 6, 9, 10]. Kh-35U added to equipment from October 2017.

Guided Bombs 8 KAB-500Kr, or KAB-500OD, or KAB-500S-E [all 1, 2, 3, 4, 5, 6, 9, 10]; three KAB-1500KR, KRM, LG [all 1, 3, 4].

Unguided Weapon Systems

Unguidedd Rockets 120 S-8 in six pods or 30 S-13 in six pods or six S-25 singles [all 3, 4, two 5, two 6].

Unguided Bombs 10 AB-500 [1, 2, 3, 4, two 5, two 6, 9, 10]; 32 AB-250 or 32 AB-100 on multiple launchers [both 1, 2, 5, 6, 9, 10].

Main Gun

Autocannon 1 x GSh-301

Caliber 30 mm

Basic Load 150 rounds, in starboard wingroot extension.

Protection

Stealth Properties No

Heat Signature Reduction Yes

EW Counter Measures L-175M10-35 self/mutual protection active jammer from Rostekhnologii/Kaluga; radar-, missile approach, and laser warning systems

Chaffs/Flares Yes

Image Sources

Notes https://commons.wikimedia.org/wiki/File:Russian_Knights_(Russkiye_Vityazi)_%E2%80%93_ARMY_2017,_Kubinka_Airbase_23-8-2017_(36745946263).jpg; https://www.militaryfactory.com/aircraft/detail.php?aircraft_id=88; https://www.iranintl.com/en/202303110871;

Details

Country of Origin Russia

Category Fixed Wing Aircraft

Air > Fixed Wing Aircraft

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

21.9 m

Width

—

Height

5.9 m

Weight

15648.92 kg

Operators (2)

Russia

China
