Ula Class (Type 210 Class) Norwegian Diesel-Electric Submarine

Ula Class

Diesel-Electric Submarine
Spotted an error? Sign in to suggest an edit.
Ula Class (Type 210 Class) Norwegian Diesel-Electric Submarine
Other

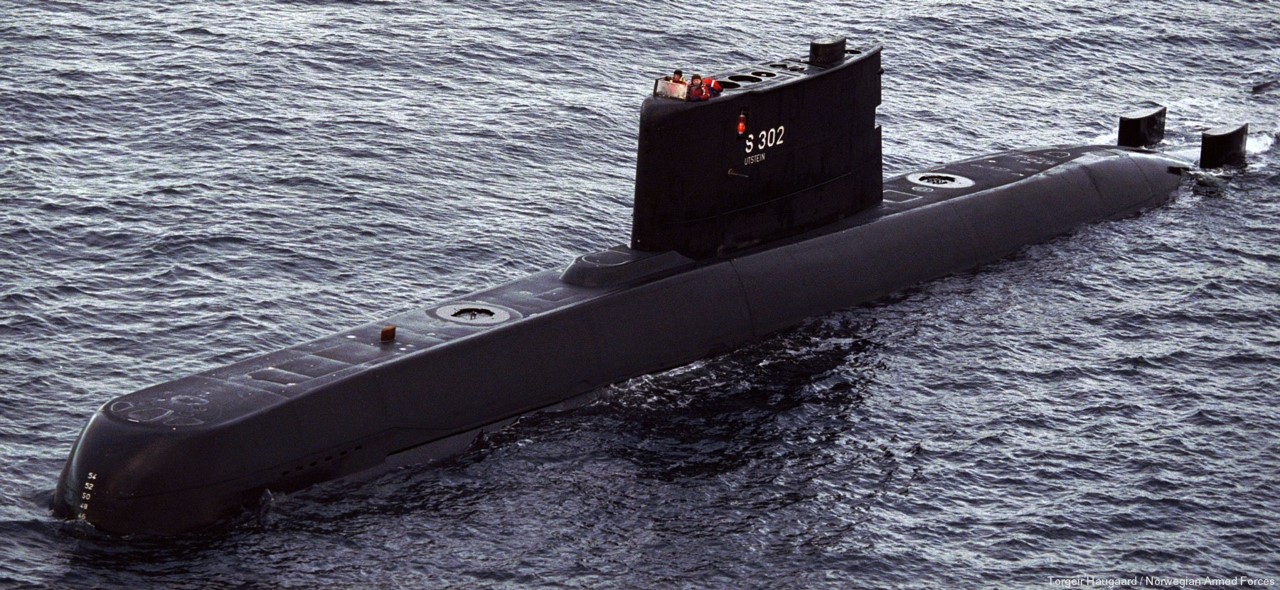

Ula_Class_(Type_210_Class)_(C).jpgTRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
Ula Class (Type 210 Class) Norwegian Diesel-Electric Submarine
Designation
Ula Class
Alternate Designation
Ula Class; Type 210 Class
Equipment Type
Diesel-Electric Submarine
Manufacturer
—
Date of Introduction
1989
Description

The Ula Class (Type 210 Class) Norwegian Diesel-Electric Submarine consisting of six vessels, is currently the only submarine type in service with the Royal Norwegian Navy.

Naval & Littoral Specifications
Crew 5
Beam 5.40 m
Draft 4.60 m
Variants
Ula Commissioned: 1989 Status: Active
Uredd Commissioned: 1990 Status: Active
Utvaer Commissioned: 1990 Status: Active
Uthaug Commissioned: 1991 Status: Active
Utstein Commissioned: 1991 Status: Active
Utsira Commissioned: 1992 Status: Active
System
Alternative Designation Ula Class; Type 210 Class
Type Diesel-Electric Submarine
Builder Thyssen Nordseewerke, Emden.
Crew 5 officers; 21 enlisted
Dimensions
Length 59.0 m
Height INA
Beam 5.4 m
Draft 4.6 m
Displacement, Surfaced 1,040 tons
Displacement, Submerged 1,150 tons
Propulsion System
Engine Name 2 x MTU 16V 396 SB83
Engine Type Diesel-Electric
Engine Power Diesel 2,600 hp; Electric 1 Siemens motor; 6,000 h
Maximum Range 5000 n miles (9260.0 km)
Maximum Speed, Surface 23 kt (42.6 km/h)
Maximum Speed, Submerged 23 kt (42.6 km/h)
Torpedo System
Launcher 8 x 533mm Bow Tubes
Torpedoes 14 x AEG DM2 A3 Seehecht; dual purpose; wire-guided active homing to 13 km (7 n miles) at 35 kt; passive homing to 28 km (15 n miles) at 18 kt; electric; warhead 250 kg.
Radar Systems
Surface Radar 1 x Kelvin Hughes 1007; I-band.
Sonar Systems
Active/Passive Sonar 1 x Atlas Elektronik CSU 83 (DBQS-21DN); active/passive intercept search and attack; medium frequency sonar
Flank Array Sonar 1 x TSM 2285 flank array; passive; low frequency sonar
Protection
Hull Armor INA
Electronic Countermeasures 1 x ITT ES-3701; radar intercept.
NBC Water Washdown System Yes
Image Sources
Notes https://www.seaforces.org/marint/Norwegian-Navy/Submarine/Ula-class.htm; https://www.nationstates.net/nation=hnoms_utstein;
Details
Country of Origin Norway
Category Submarines
Naval > Submarines
Filter Label
U
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
59 m
Width
—
Height
—
Weight
—
Operators (1)
Norway
