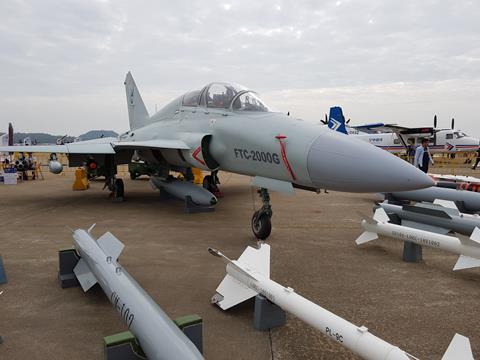

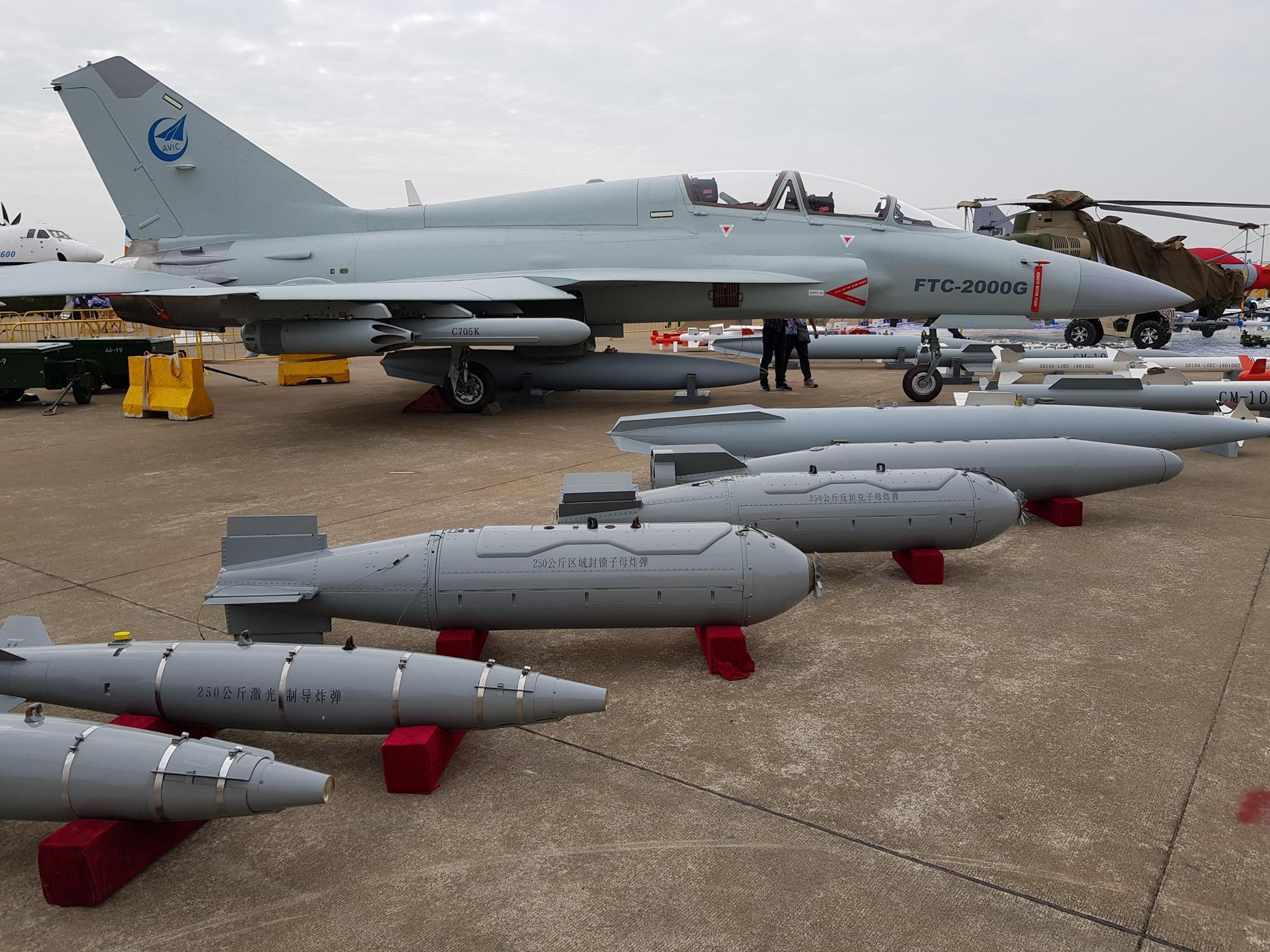

FTC-2000G Chinese Multi-Role Aircraft

FTC-2000G

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
FTC-2000G Chinese Multi-Role Aircraft
Designation
FTC-2000G
Alternate Designation
Equipment Type
Manufacturer
Guizhou Aviation Industry Import/Export Company (GAIEC)
Date of Introduction
2003
Description

The FTC-2000 is a JJ-7/FT-7 with a new wing, a forward fuselage with side air intakes, and a glass cockpit. The engine, management, and mechanical controls of the JJ-7/FT-7 are retained. The FTC-2000G is a multi-role combat fighter aircraft and one of the cheapest multi role fighters on the market with the aim to replace old legacy fighters like the J-7/F-7. It has 7 hard-points. It also features a diverterless supersonic inlet. It made its first flight in September 2018. Compared to the FTC-2000 trainer variant, the FTC-2000G is heavier, slower due to new wing design, and has less endurance than the FTC-2000.

Air & Air Defense Specifications
Crew 2
Engine Turbojet (4400 hp)
Max Speed 1.6 km/h
Service Ceiling 16000 m
Variants

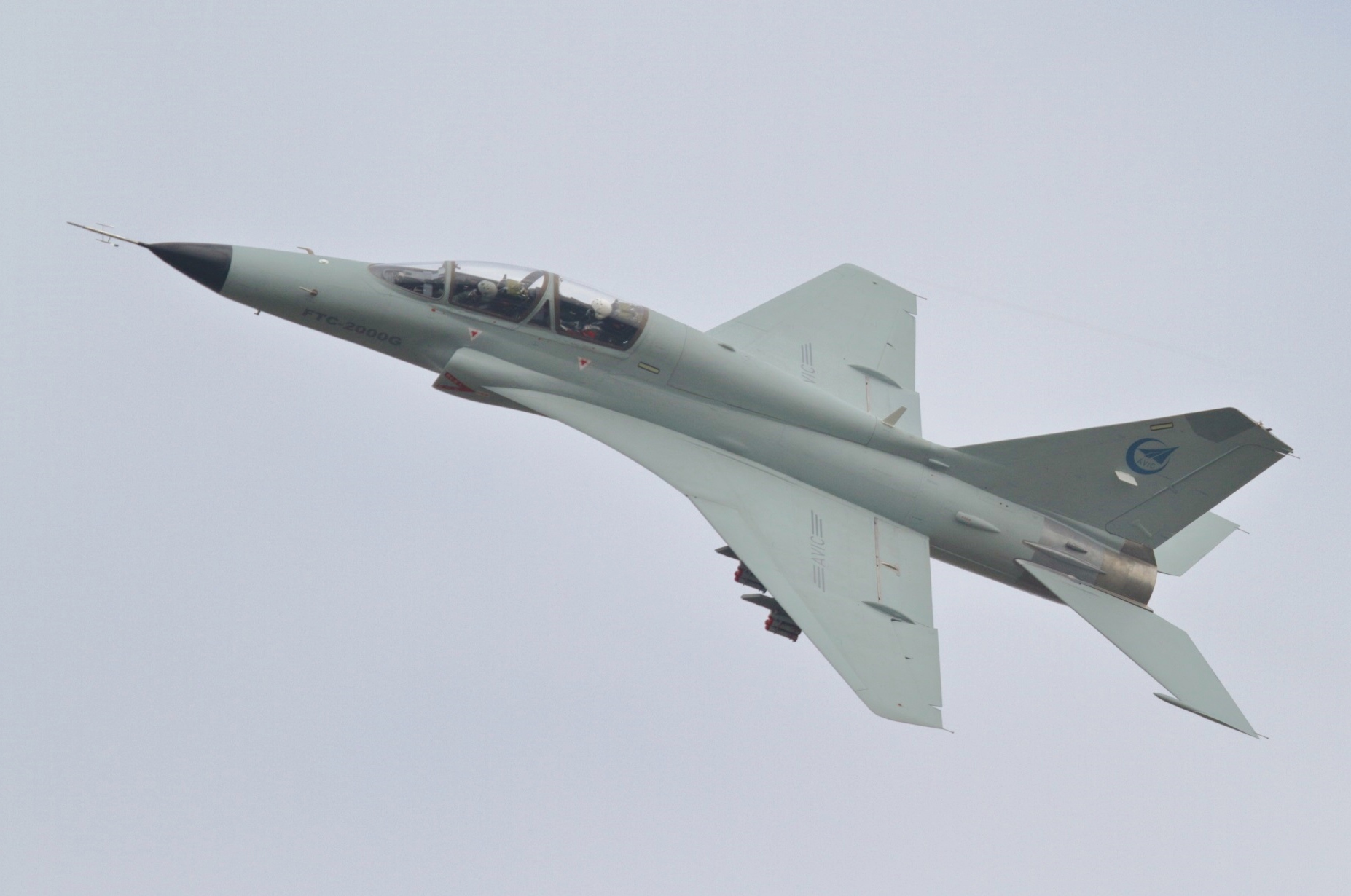

JL-9 The JL-9 Shanying (Mountain Eagle) is a trainer aircraft based on the J-7 fighter. The aircraft has been competing against the JL-15 for China's next-generation trainer program.
System
Alternate Designation(s) FTC-2000G
Primary Function / Type Multi-Role Aircraft
Manufacturer Guizhou Aviation Industry Import/Export Company (GAIEC)
Crew 2
Number of Engines 1
Number of Hard Points seven hard-points with a maximum payload of 3,000 kg.
Night-Flying Capabilities Yes
Note The jet can be equipped with reconnaissance or electronic warfare pods
Dimensions
Length 14.555 m
Height 4.105 m
Width (Wing Span) 8.32 m
Wing Area 26.15 m2
Gross Weight 7,800 kg
Maximum Takeoff Weight 11,000 kg
Automotive
Engine Name 1 x WP-13F(C)
Number of Engines 1
Engine Type Turbojet
Engine Power Maximum thrust 4,400 kg Afterburner 6,450 kg
Fuel Capacity Internal 2,660 liters, The aircraft can carry up to three fuel drop tanks under its wings.
Ferry Range 2,500 km
Maximum Speed Mach 1.6
Service Ceiling 16,000 m
Maximum Climb 260 m/s
G Limit +8/-3
Main Gun System
Note 23-mm cannon; Name: INA
Main Missile Systems
Note typically 2x PL-8 AAMs on inboard pylons + 2x PL-9 AAMs on outboard pylons
Fire Control / Avionics
Fire Control Radar Name Italian Grifo S-7 pulse-Doppler fire-control radar
Fire Control System Type The aircraft is equipped with a Chinese pulse-Doppler fire-control radar
HUD XPS-2 head-up display (HUD
Protection
Stealth Properties None
Heat Signature Reduction INA
Add on Armor INA
NBC Protection INA
EW Counter Measures INA
Chaffs/Flares INA
Details
Country of Origin China
Category Multirole Aircraft
Air > Multirole Aircraft
Filter Label
F
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
14.56 m
Width
8.32 m
Height
4.11 m
Weight
7800 kg
Operators (2)
China
Sudan
