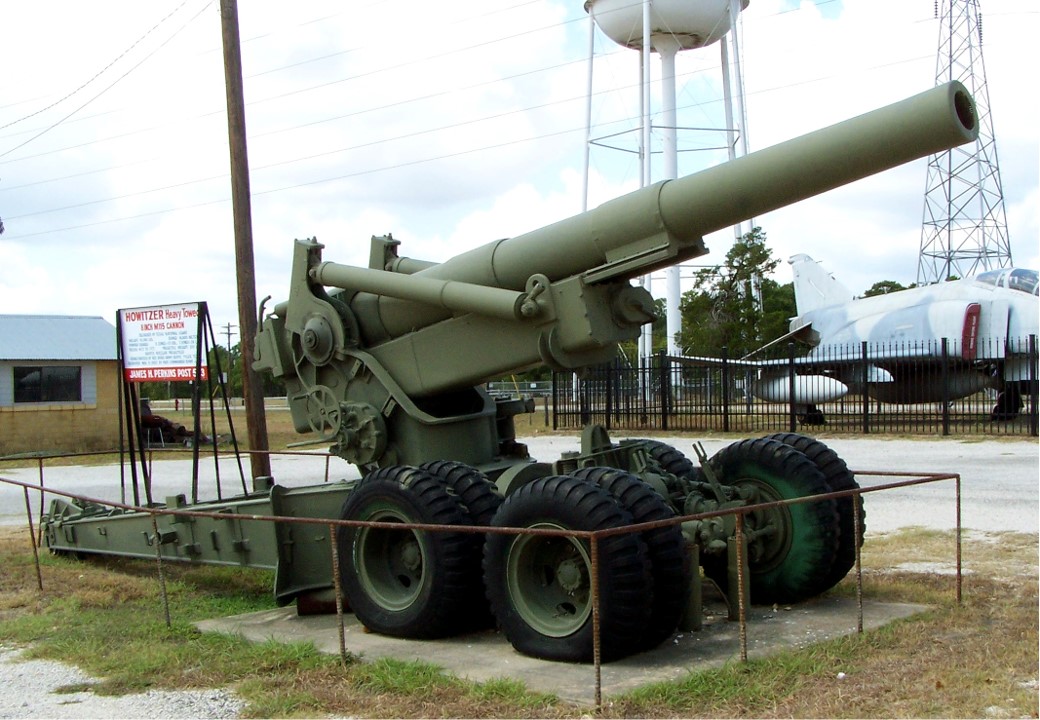

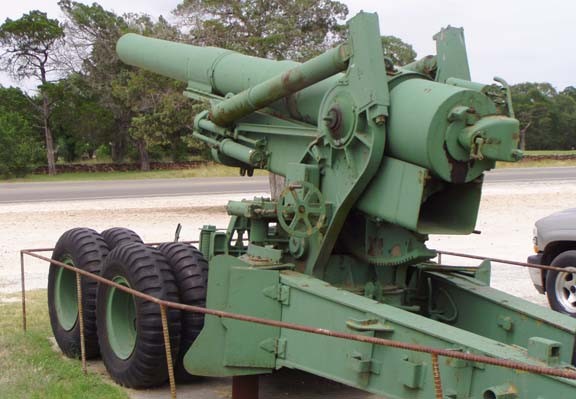

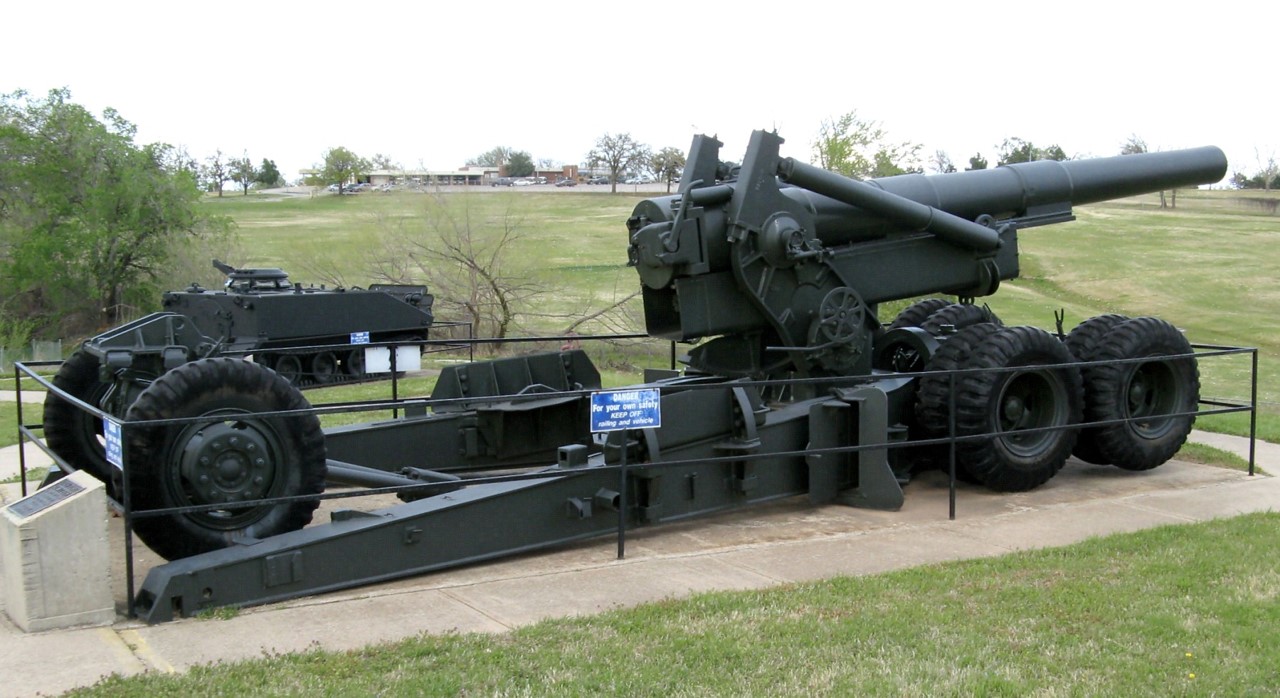

M115 American 203mm Towed Howitzer

M115

203mm Towed Howitzer
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
M115 American 203mm Towed Howitzer
Designation
M115
Alternate Designation
M115
Equipment Type
203mm Towed Howitzer
Manufacturer
Hughes Tool, Houston, Texas (now part of Baker Hughes)
Date of Introduction
1950
Description

The M115 8-in (203-mm) towed howitzer is the largest towed artillery weapon ever developed in the United States. It is no longer in service with the U.S. Army, but it remains in the arsenals of several other countries. The M115 8 in (203 mm) howitzer, which was replaced by the M110 self-propelled howitzer, is a towed weapon developed prior to World War II as a heavy artillery weapon. The weapon uses NATO standard 203mm ammunition and was used during World War II, in Korea, and in Viet Nam. In NATO service their prime mission was to fire nuclear rounds which have since been phased out of service. Tests of the prototype T3 howitzer began at Aberdeen Proving Ground in 1939 and the howitzer entered service as the 8 in Howitzer M1. After the Second World War the complete weapon was redesignated the Howitzer, Heavy, Towed: 8 in: M115. Variants of the M110 with a longer barrel include the M110A1 (no muzzle brake) and the M110A2 (fitted with muzzle brake). In most countries, the M115 and the M110 have been phased out of service due to short-range. The carriage of the 8 in howitzer is also used to mount the 155 mm Gun M1 (Long Tom), which is still in use with some armies.

Ground Specifications
Crew 14
Variants
M43 self-propelled howitzer This version was developed during World War II. It entered service in 1946 in small numbers; all have been retired.
M55 self-propelled howitzer This was based on the M48 tank chassis. It serves in Turkey. This has the same elevation and traverse ranges as M115. It was superseded in U.S. service by the M110.
M110 self-propelled howitzer This gun has a lighter chassis for air-portability. See separate database entry.
System
Alternative Designation M115
Type 203mm Towed Howitzer
In Service 1939-Present
Manufacturer Hughes Tool, Houston, Texas (now part of Baker Hughes)
Family M115
Crew 14 ea
Carriage M35 Prime Mover gun tractor or a Mack 7⅓ ton 6×6 truck
Displacement Time INA
Emplacement Time INA
Note It is capable of firing U.S. 203-mm nuclear and chemical munitions, but the United States does not export those.
Dimensions
Length, Traveling 10.97 m
Barrel Length 5.14 m
Width, Firing 6.86 m
Width, Traveling 2.84 m
Height 2.74 m
Weight, Firing 13,471 kg
Weight, Traveling 14,515 kg
Ground Clearance 320 mm
Trail Type split; towed on 2-wheel limber
Automotive Requirement
Prime Mover M35 Prime Mover gun tractor or a Mack 7⅓ ton 6×6 truck.
Communications
Primary INA
Howitzer System
Armament (Barrel)
Name M115
Type 203mm Howitzer
Breech Type Stepped-thread, interrupted screw
Length, Barrel 5.14 m
Loader Type INA
Normal Rate of Fire 1 rd/2 min
Maximum Rate of Fire 1 rd/1 min
Muzzle Velocity 587 m/s
Max Elevation +65 deg
Min Elevation -2 deg
Traverse Range 60 def
Traverse Right 30 deg
Traverse Left 30 deg
Bore 8-in (203-mm)/25-cal, rifled
Equilibrator Assemblies Yes
Ammunition (Option 1)
Name M426
Type CHEM GB/VX
Caliber 203 mm
Length 892 mm
Weight 92.53 kg
Muzzle Velocity 587 m/s
Basic Load INA ea
Ammunition (Option 2)
Name M106
Type HE
Caliber 203 mm
Length 871 mm
Weight 92.53 kg
Muzzle Velocity 587 m/s
Basic Load INA ea
Ammunition (Option 3)
Name M404
Type APICM
Caliber 203 mm
Length 886 mm
Weight 90.72 kg
Muzzle Velocity 587 m/s
Basic Load INA
Fire Control
Name INA
Computerized FCS No
Direct Fire Yes
Indirect Fire Yes
Collimator INA
Spades Four spades, carried on the trails, are used to emplace the weapon.
Details
Country of Origin United States
Category Towed Gun/Howitzer Artillery Systems
Land > Artillery > Towed Gun/Howitzer Artillery Systems
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
2.74 m
Weight
13471 kg
Operators (19)
China
United States
Germany
Italy
Japan
South Korea
Turkey
Iran
Pakistan
Spain
Belgium
Croatia
Denmark
Greece
Jordan
Netherlands
Saudi Arabia
Sudan
Taiwan
