Slavutych Class (Project 1288 Class) Ukrainian Command Ship
Slavutych Class
Automated Command and Control (C2) System
Other
Basic Information
Name
Slavutych Class (Project 1288 Class) Ukrainian Command Ship
Designation
Slavutych Class
Alternate Designation
Slavutych Class; Project 1288 Class
Equipment Type
Automated Command and Control (C2) System
Manufacturer
Black Sea Shipyard (Mykolaiv)
Date of Introduction
1992
Description

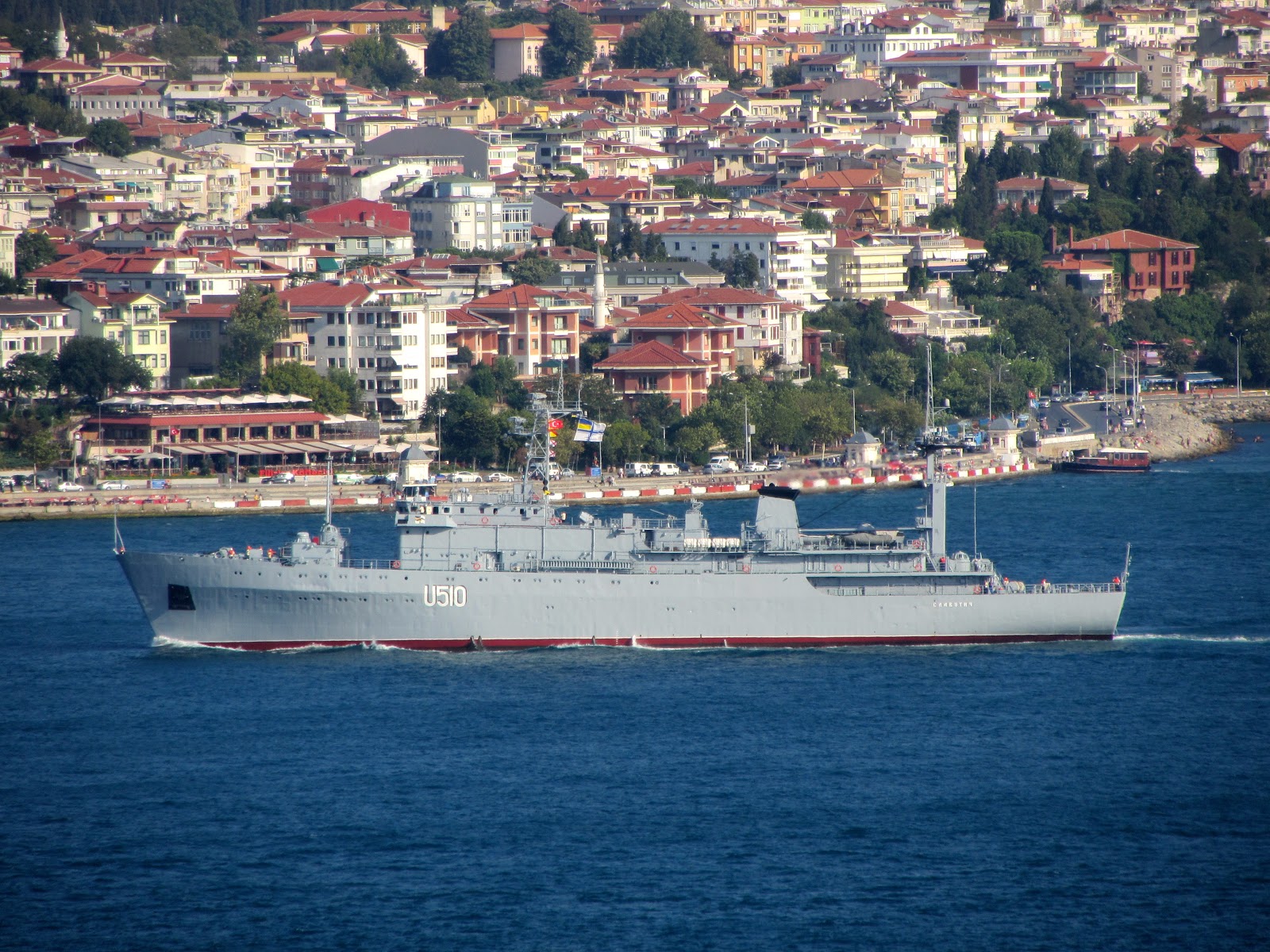

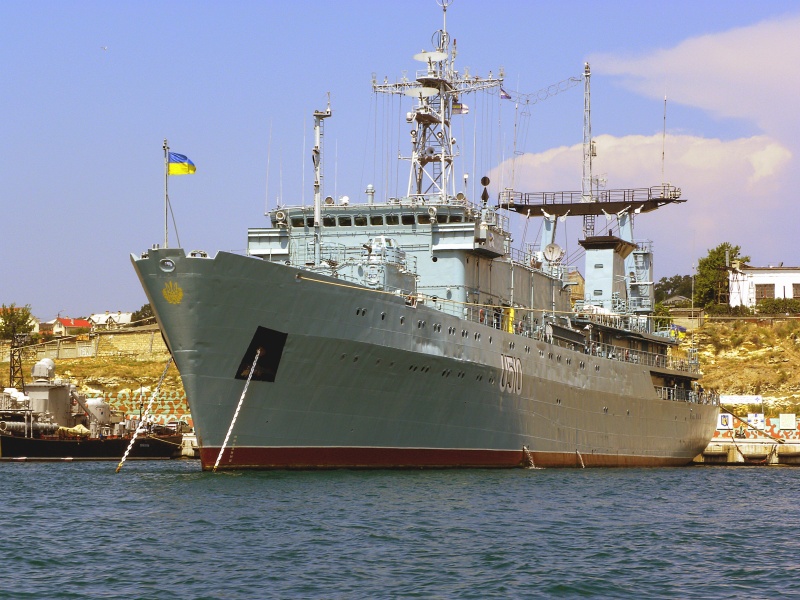

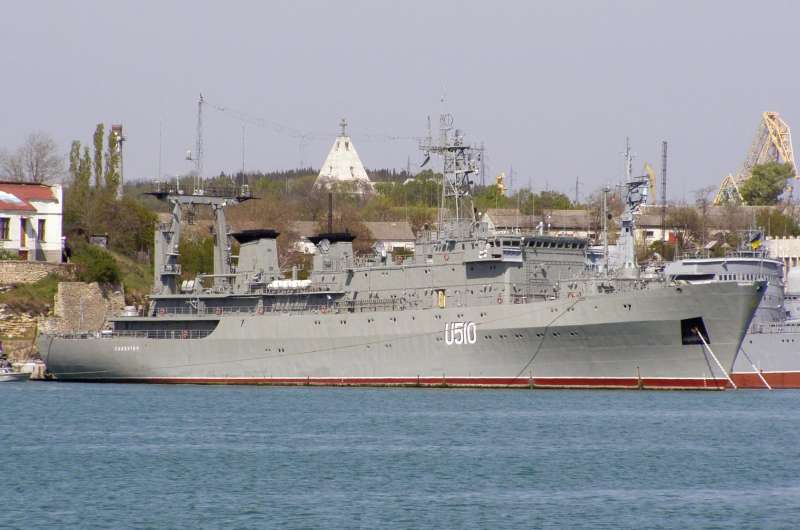

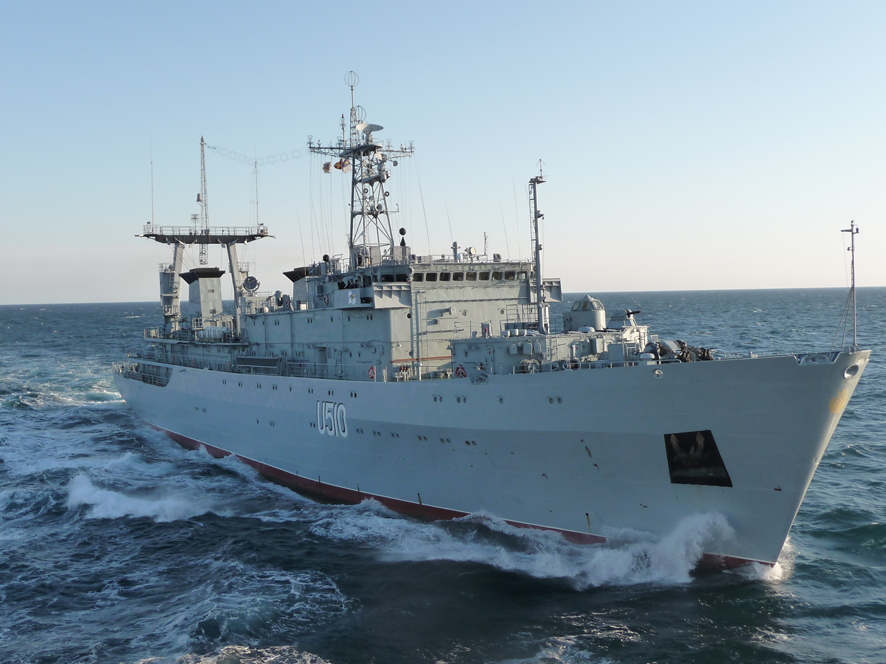

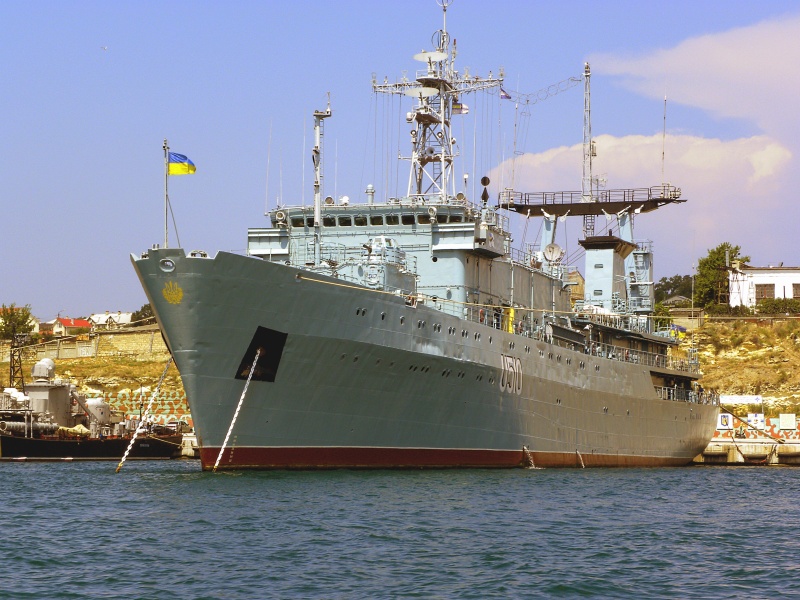

The Ukrainian command ship Slavutych is a former Soviet auxiliary ship Prideprovie of the Gofri-class intelligence ships (NATO codename: Bambuk) ship built for the Soviet Navy in the late 1980s.
Naval & Littoral Specifications
Crew
150
Beam
16.00 m
Draft
6.00 m
System
Alternative Designation
Slavutych Class; Project 1288 Class
Type
Command, Control and Intelligence Ship
Builder
Black Sea Shipyard (Mykolaiv)
Crew
150 ea
Note
Captured by Russia since 2014.
Dimensions
Length
106.5 m
Beam
16.0 m
Draft
6.0 m
Displacement, Standard
5,010 tons
Displacement, Full Load
5,400 tons
Propulsion System
Engine Name
2 × Skoda 6L2511
Engine Type
Diesel
Engine Power
6,100 total bhp
Bow Thrusters
INA
Maximum Range
9,200 nm at 12.5 knots
Maximum Speed
16.0 knots
Endurance
INA
Main Gun System
System
Name
2 x AK-306 30mm CIWS
Type
Close-In Weapon System
Caliber
30 mm
Main Armament
1 or 2 AO-18 autocannons
Secondary Armament
4 x 9A4172 missiles
Crew
1 ea
Barrel Length
1,629 mm
Width
1,240 mm
Height
1,070 mm
Weight
1,000 kg (gun mount)
Barrels
6 ea
Action
Gas-operated rotary cannon
Elevation
+88° ... -12° (50°/sec)
Traverse
±180° (70°/sec)
Rate of Fire
4,000–5,000 rounds/min
Muzzle Velocity
880–900 m/s
Maximum Firing Range
the projectiles self-destruct past 5,000 m
Effective Firing Range
4,000 m (aerial); 5,000 m (maritime)
Feed System
Belt: 2,000 rounds (additional 1,000 rounds in reserve feed bin.
Sights
Radar / TV-optical
Ammunition
Type
HEI-Frag, Frag-T
Caliber
30 mm
Shell Weight
0.39 kg
Basic Load
1000 rounds and 4 x 9A4172 missiles
Missile Weapon System
Name
8 x 9K310 Igla-1 (SA-16 Gimlet) Man Portable Surface-to-Air Missile (SAM) System
Type
Man Portable Surface-to-Air Missile (SAM) System
Length
1.673 m
Diameter
72 mm
Wingspan
160 mm
Weight
10.8 kg
Engine
Single-stage solid propellant rocket motor, plus ejection motor
Warhead
1.27 kg (HE-fragmentation)
Guidance System
Single channel passive infra-red homing seeker
Maximum Speed
570 m/s
Maximum Range
5 km
Minimum Range
0.5 km
Altitude
10 m to 2.5 km
Missile Basic Load
8 x 9K310 Igla-1 (SA-16 Gimlet) Man Portable Surface-to-Air Missile (SAM)(32 x 9M213 Missiles).
Fire Control Systems (FCS)
AK-306 FCS
1 x A-219 Vympel FCS
Radar Systems
Navigation Radar
Yes
Search Radar
3 x Palm Frond Systems
Protection
Hull
INA
Electronic Warfare
2 x PK-16 Buoy Decoys
Countermeasures
INA
NBC Water Washdown System
Yes
Details
Country of Origin
Russia
Category
Naval
Naval
Filter Label
S
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
106.5 m
Width
16 m
Height
—
Weight
10.8 kg
Operators (2)
Russia
Ukraine
