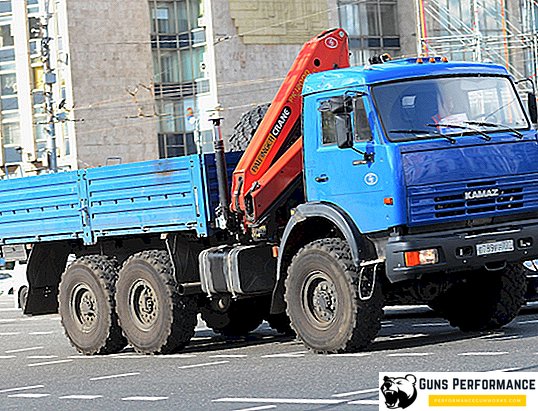

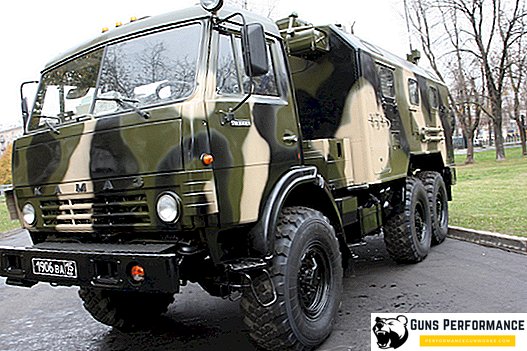

KamAZ-43114 Russian 6x6 Multipurpose Truck

Kamaz 43114

Motorcycle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
KamAZ-43114 Russian 6x6 Multipurpose Truck
Designation
Kamaz 43114
Alternate Designation
Kamaz 43114
Equipment Type
Motorcycle
Manufacturer
Kamaz
Date of Introduction
1995
Description

The Kamaz-43114 is a 15-ton class, 6x6 flexible and mobile multipurpose truck system intended to carry personnel and cargo as part of the logistics support for military and peacekeeping missions. It is also suitable for other applications such as water/fuel tank bodies carrier, loading cranes, special purpose vans, and various weapon systems platforms. This truck can tow trailers and keep on moving through desert sands and along stony tracks, over scree and mud, snow and ice thanks to its all-wheel drive climbing the most extreme gradients, ford rivers, and chasing across any terrain. It is powered by a Kamaz 740.31 Euro 2 turbocharged diesel V8 engine developing 225 hp of power or alternatively a Kamaz 740.11 Euro 1 turbocharged diesel V8 engine developing 230 hp of power. Kamaz created three classes of multipurpose vehicles with 6-ton, 8-ton, and 10-ton axial loads developing a full range of 4x4, 6x6, and 8x8 military trucks sharing 85 percent of components and designed to meet military requirements. The trucks have the option of an armored cab including hidden armoring of the cab. The Kamaz-43114 truck is able to carry up to a 6-ton payload and tow a trailer of 12-ton. Kamaz has produced this truck system for the Russian Ministry of Defense and export customers across the world.

Ground Specifications
Crew 1
Mobility Type Wheeled (6x6)
Engine Turbocharged Diesel (225 hp)
Active Protection None
System
Alternative Designation Kamaz 43114
Type Multipurpose Truck
Family Kamaz
Crew 1 ea
Cab Seating 2 ea
Cargo Capacity 6,000 kg
Towed Load 12,000 kg
Note Kamaz created three classes of multipurpose vehicles with 6-ton, 8-ton and 10-ton axial load developing a full range of 4x4, 6x6, 8x8 military trucks sharing 85 percent of components and designed to meet military requirements.
Dimensions
Length 5.20 m
Width 2.32 m
Wheelbase 3.34 m
Height INA
Cargo Capacity 6,000 kg
Max Gross Train Weight 27,350 kg
Max Weight 15,350 kg
Towed Load 12,000 kg
Automotive
Engine Name Kamaz 740.31 Euro 2
Engine Type Turbocharged Diesel
Engine Power 225 hp
Max Torque 912 Nm (6,599 ft-lb)
Ditch Crossing Ability 0.60 m
Fording Depth 1.75 m
Step Climbing Ability 0.55 m
Protection
Armor The trucks have the option of an armored cab including hidden armoring of the cab.
Applique Armor Available
Active Protection System No
NBC Protection INA
Details
Country of Origin Russia
Category Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.2 m
Width
2.32 m
Height
Weight
27350 kg
Operators (8)
Russia
Cambodia
Kazakhstan
Kyrgyzstan
Tajikistan
Turkmenistan
Uzbekistan
Vietnam
