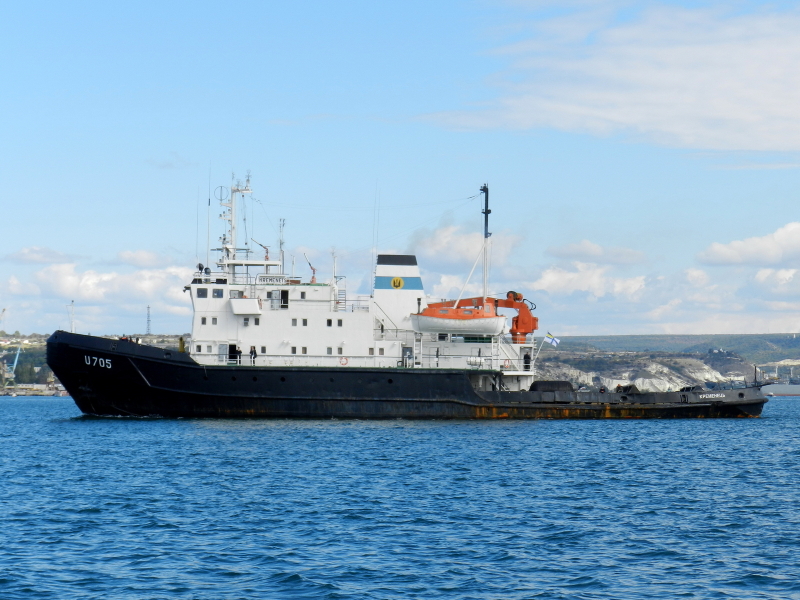

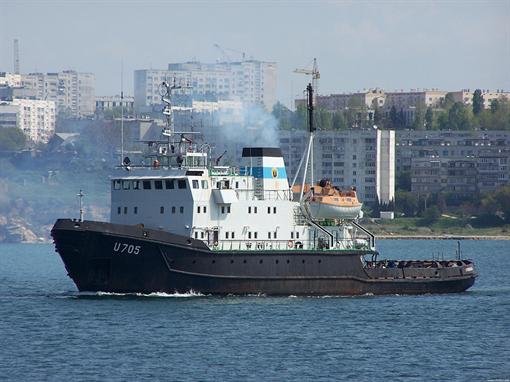

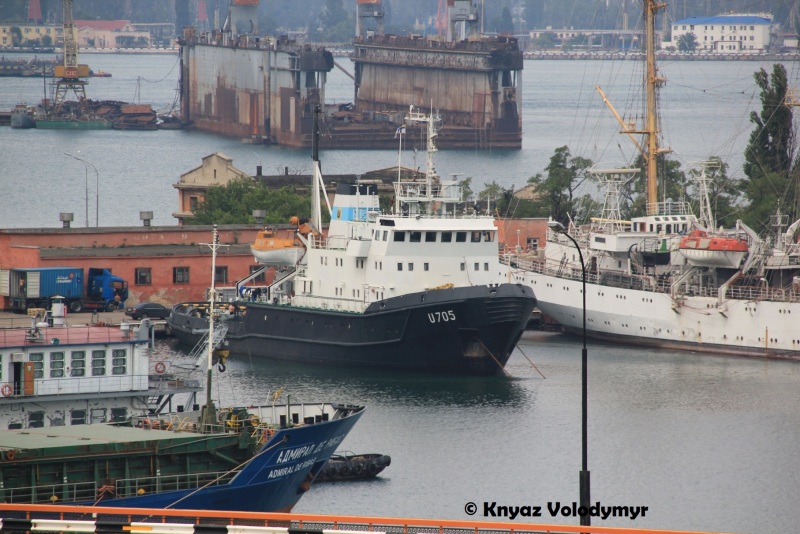

Kremenets-Class (Project 714 Class) Ukrainian Rescue Tug Boat

Seagoing Tugboat
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Kremenets-Class (Project 714 Class) Ukrainian Rescue Tug Boat
Designation
Alternate Designation
Kremenets-Class (Project 714 Class) Ukrainian Rescue Tug Boat
Equipment Type
Seagoing Tugboat
Manufacturer
Date of Introduction
1981
Description

Kremenets-Class (Project 714 Class) Ukrainian Rescue Tug Boat is a tug boat class of the former Soviet and Russian fleet. The original class designation from NATO is Goryn-class and dubbed a sea-going tug under two separate projects, but no significant differences in capability and performance identified. Officially classified as spastel'niy buksir (rescue tug). This ship classs can be distinguished from their fleet tug (ATF) sister ships by a electro-hydraulic crane and small tripod mast abaft the stack, and they have probably been fitted with MG- 26 underwater telephones. There is limited proliferation of this vessel.

Naval & Littoral Specifications
Crew 43
Beam 14.05 m
Draft 5.50 m
Variants
Goryn-Class (Project 563) Sea-going Rescue Tugs
System
Alternative Designation Kremenets-Class (Project 714 Class) Ukrainian Rescue Tug Boat
Type Seagoing Tug Boat / Rescue Boat
Builder Rauma-Repola, Rauma, Finland
Crew 43
Dimensions
Length 63.5 m
Beam 14.05 m
Draft 5.5 m
Displacement, Standard 1,650 t
Displacement, Full Load 2,200 t
Propulsion System
Engine Name 1 x Russkiy Dizel Type 67N
Engine Type Diesel
Engine Power 3,500 bhp
Propeller single shaft propeller
Maximum Range 8,000 nm @ 12 knots
Maximum Speed 14 knots
Radar Systems
Name Don-2 (NATO name - Pill Box)
Type Navigational
Range 1500-2000 km
Diameter 18 m
Azimuth 360 deg
Special Equipment
Fire Monitors 2 x 120 m3/h fire monitors
Diving Equipment Onboard diving complex chamber
Underwater Telephones Yes
Details
Country of Origin Ukraine
Category Support Ships
Naval > Support Ships
Filter Label
K
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
63.5 m
Width
Height
Weight
Operators (4)
Russia
Ukraine
North Korea
Finland
