Credo-1E Russian Unified Moving Target Locating Radar
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Credo-1E Russian Unified Moving Target Locating Radar
Designation
—
Alternate Designation
—
Equipment Type
—
Manufacturer
—
Date of Introduction
1993
Description

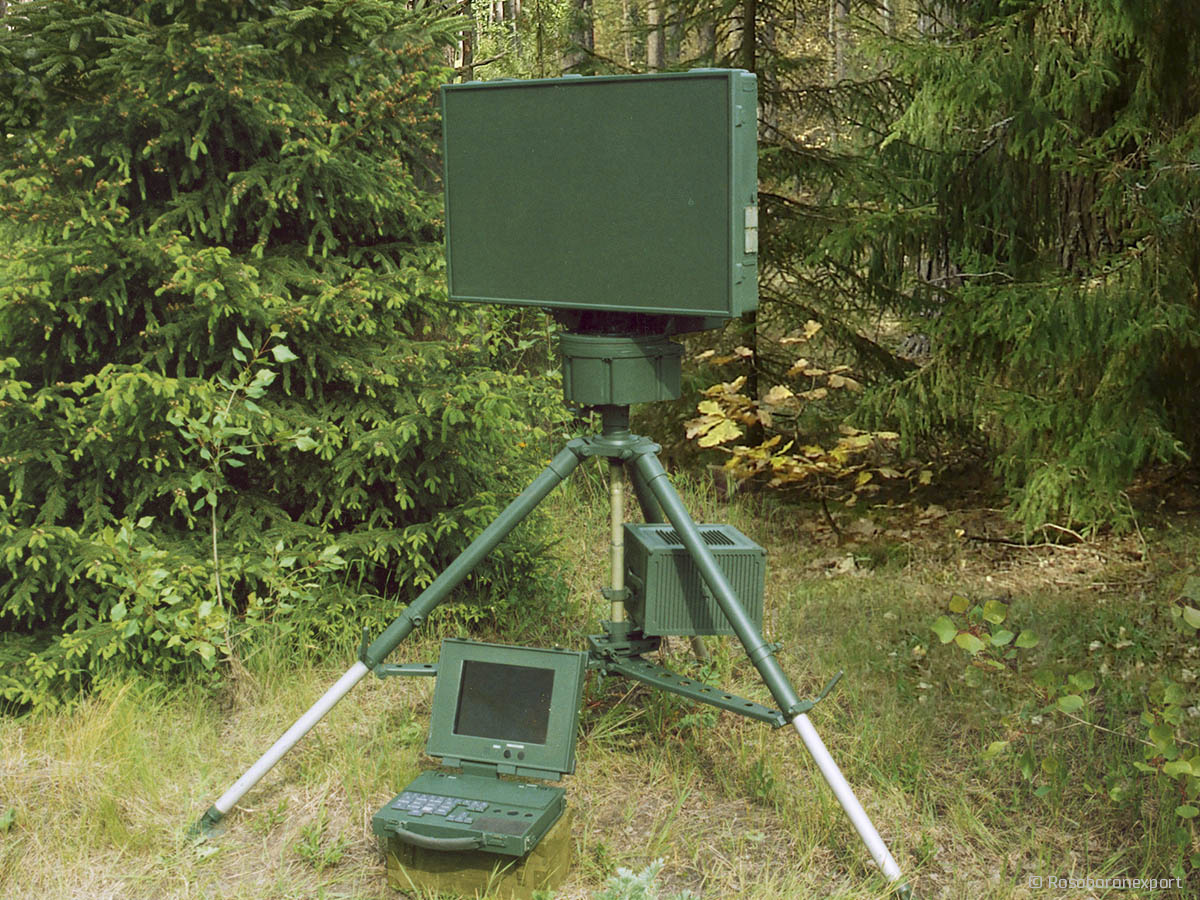

The Credo-1E unified moving ground target locating radar is designed to detect moving ground, surface and low-flying targets (man, group of people, vehicles) and to support artillery fire round-the-clock, in any season, and under zero visibility conditions (fog, smoke, and dust). It can be used as a standalone surveillance asset (with its transceiver and antenna control unit mounted on a tripod) or as part of a variety of artillery reconnaissance and mobile observation posts (on telescopic masts). The radar has standard interfaces allowing real-time transmission of target coordinates to the user, as well as remote radar control via communication links.
Ground Specifications
Crew
2
Range
40.0 km
Variants
Kredo-1S
Ground recon vehicle with Kredo-1E radar/EO sensor pod on telescoping arm on amphibious BAZ-5921 chassis
TBD
Same telescoping arm as the Kredo-1S, but on the BTR-based UNSh/K1Sh1 chassis
SNAR-10M
Russian upgrade for the SNAR-10 artillery battlefield surveillance radar vehicle (replaces BIG FRED radar with the Kredo-1E)
System
Alternative designations
RP-200, IRL-133-3, Kredo-1, Credo-1, Credo-1E, & PSNR-8
Description
Ground Surveillance Radar (GSR) can be operated by a crew of 2 or 3; vehicle pintle or mast-mounted or tripodmounted
Crew
2-3 (operator; assistants); more for vehicle
Combat weight
48 kg (up to 97 kg with battery & display)
Radio
INA
Protection
N/A
Equipment
Name
Kredo-1E
Console
INA
Radar
Motor-driven for azimuth adjustment
Azimuth coverage (°)
360 deg; 180 deg in scan sector; 18 in elevation
Antenna type
Slotted wave guide
Performance
Surveillance range
40 km (detection); 30 km (tracking); 40 km (tanks); 20-40 km (light vehicles & trucks); 35 km (helicopters); 30 km (large
aircraft); 12 km (ships); 15 km(personnel); 15 km (shell burst-155-mm); 0.2 km (minimum)
Tracking speed
3-72 km/h
Resolution
50 m range; 1.8° in azimuth
Countermeasure resistance
INA
Transceiver specifications
Multi-mode master oscillator & klystron
Signal
Coherent pulse Doppler J-band (10.00 -19.00 GHz, US Ku band)
Power
250 w (Consumption)
Mode
Mono-pulse digital processing
Width of radiation pattern lobe
INA
Accuracy
10 m in range); 0.12° in azimuth)
Emplacement time
5 minutes
Polarization
INA
Compatibility
Can be used as the base for an integrated digital sensor suite or fused to process data from other sensors
Remote Operation
25-200 m away from dish
Target acquisition
Automatically detects, tracks, & identifies targets & reads coordinates
TV Monitor
INA
Display
Displays acquisitions on digital map display with various display colors
Tone Signal
INA
Remote user transmission
Transmit data digitally over network via standard interface
Details
Country of Origin
Russia
Category
Radars
Land > Radars
Filter Label
C
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
48 kg
Operators (1)
Russia
