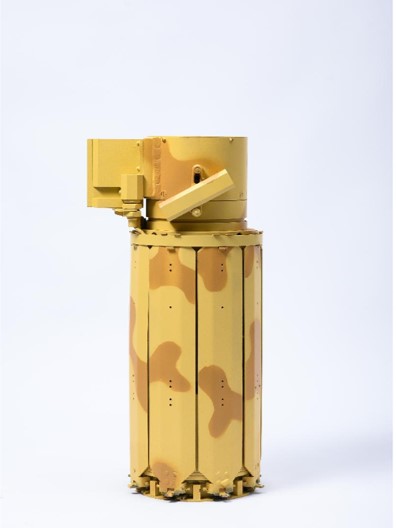

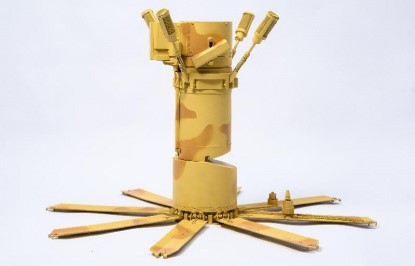

DTKM-1R Russian Anti-Tank Mine
DTKM-1R
Anti-Tank Mine
Other
Basic Information
Name
DTKM-1R Russian Anti-Tank Mine
Designation
DTKM-1R
Alternate Designation
DTKM-1R
Equipment Type
Anti-Tank Mine
Manufacturer
—
Date of Introduction
2017
Description
The DTKM-1R Russian Anti-Tank Mine is capable of selecting what armored vehicle to hit, it chooses only those equipment that meet the specified parameters in terms of noise and ground vibration.
System
Alternate Designation
DTKM-1R
Type
Anti-Tank Mine
Manufacturer
INA
Installation
It is installed manually, at a distance of 5 to 50 m from the probable route of the target making it quite difficult to detect.
Sensors
The transporter-launcher is equipped with acoustic and seismic sensors, the combat element is equipped with infrared and radar sensors.
Explosive Weight
2.8 kg
Range
When the target comes within 50 m radius from the mine, the seismic sensor commands to launch the combat element. The combat element follows a ballistic trajectory and it's sensors - thermal and radar - scan the earth's surface. When the sensors detect the target the warhead is detonated and strikes the target from above.
Armor Penetration
70 mm
Self-Destruction Time
1-10 days
Dimensions
Height
510 mm
Diameter
220 mm
Weight
19.9 kg
Image Sources
Details
Country of Origin
Russia
Category
Landmines
Land > Infantry Weapons > Landmines
Filter Label
D
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.22 m
Height
0.51 m
Weight
19.9 kg
Operators (1)
Russia
